3.1.30 Hide stimulus artefact

Use the option to "Hide stimulus artifact" on the collected waveform by:
1.
2.
with the actual timing for hiding the artifact (all waveforms in once).
3.
changing for user edition, click and drag the line for less or more hiding stimulus artifact function.
Works also for historic sessions.
4. This helps e.g. to remove unwanted disturbing large artifacts from CI or BC stimulators.
5. E.g. helpful in eABR recordings, making an easier overview with the large artifact hidden, see below
picture.
Right click and choose "Hide stimulus artifact" to disable the feature again if needed.
D-0120578-C – 2019/11
Eclipse – Instructions for Use - US

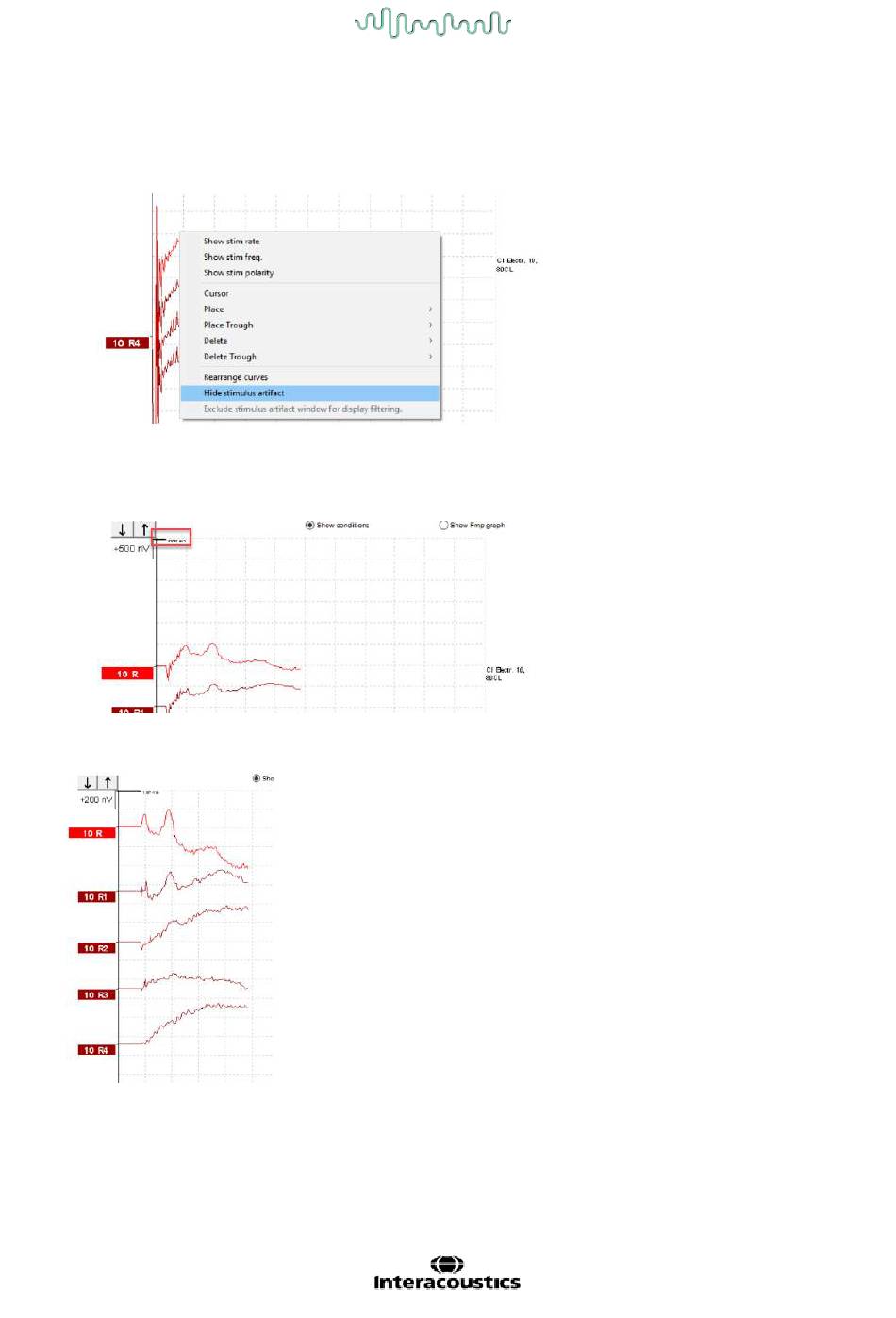

A right click on the graph and choose "Hide stimulus artifact".
At the top of the graph (see below picture) a small black line appears
Point with the mouse at the black line end and the mouse symbol is
