The waveform reproducibility window range is indicated by a
black line on the x axis. Only the waveform within this range
accounts for the calculation of the waveform reproducibility
percentage.
Clicking on the aqua or purple circles at the end of each waveform
and moving the mouse, allows for separation of the curves within
the graph
Right clicking on the response waveform graph allows for
changing the display.

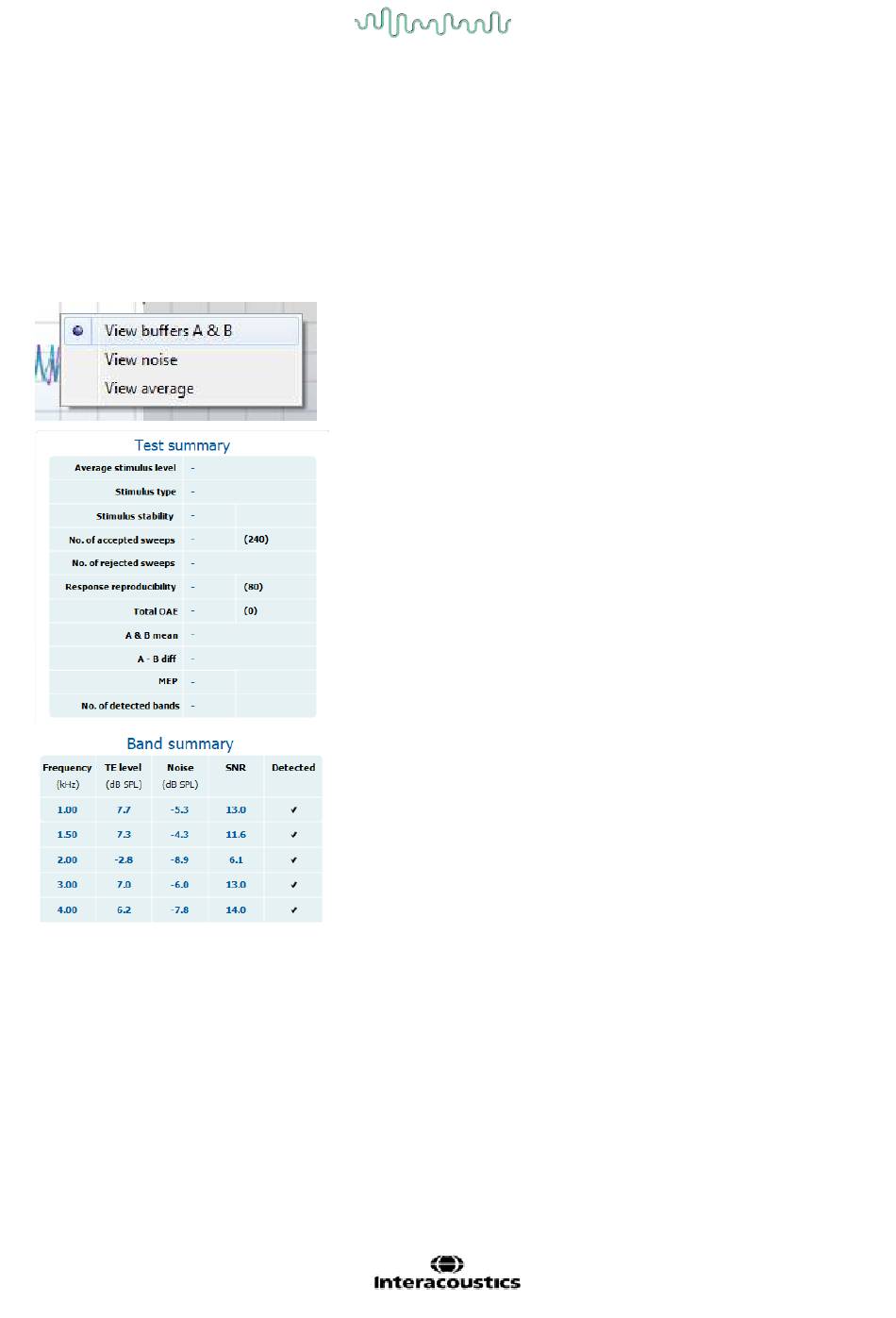

View buffers A & B is the default view showing the two
superimposed averaged OAE waveforms.
View noise displays the noise in the waveform (Noise = A buffer –
B buffer).
View average displays the mean of the A and B waveforms.
The minimum test requirements as defined in the protocol are
displayed beside some of the items in the Test summary table.
These numbers in parentheses change to a check mark when
the minimum requirement has been met during testing.
The Band Summary table displays the test frequencies, TE level,
Noise, SNR. The Detected column displays a check mark when
the specified frequency has met the criteria as setup in the
protocol.
TE level, Noise and SNR values are rounded based on raw data.
Therefore, the calculated SNR value displayed may not always
equal the TE level minus the Noise.
When the stimulus level goes outside the tolerance set in the
protocol setup, the stimulus levels outside tolerance pop-up
dialogue will appear on screen.
Press Stop to stop testing.
Press Skip if you want to continue testing without the frequency for
which this message appeared.
