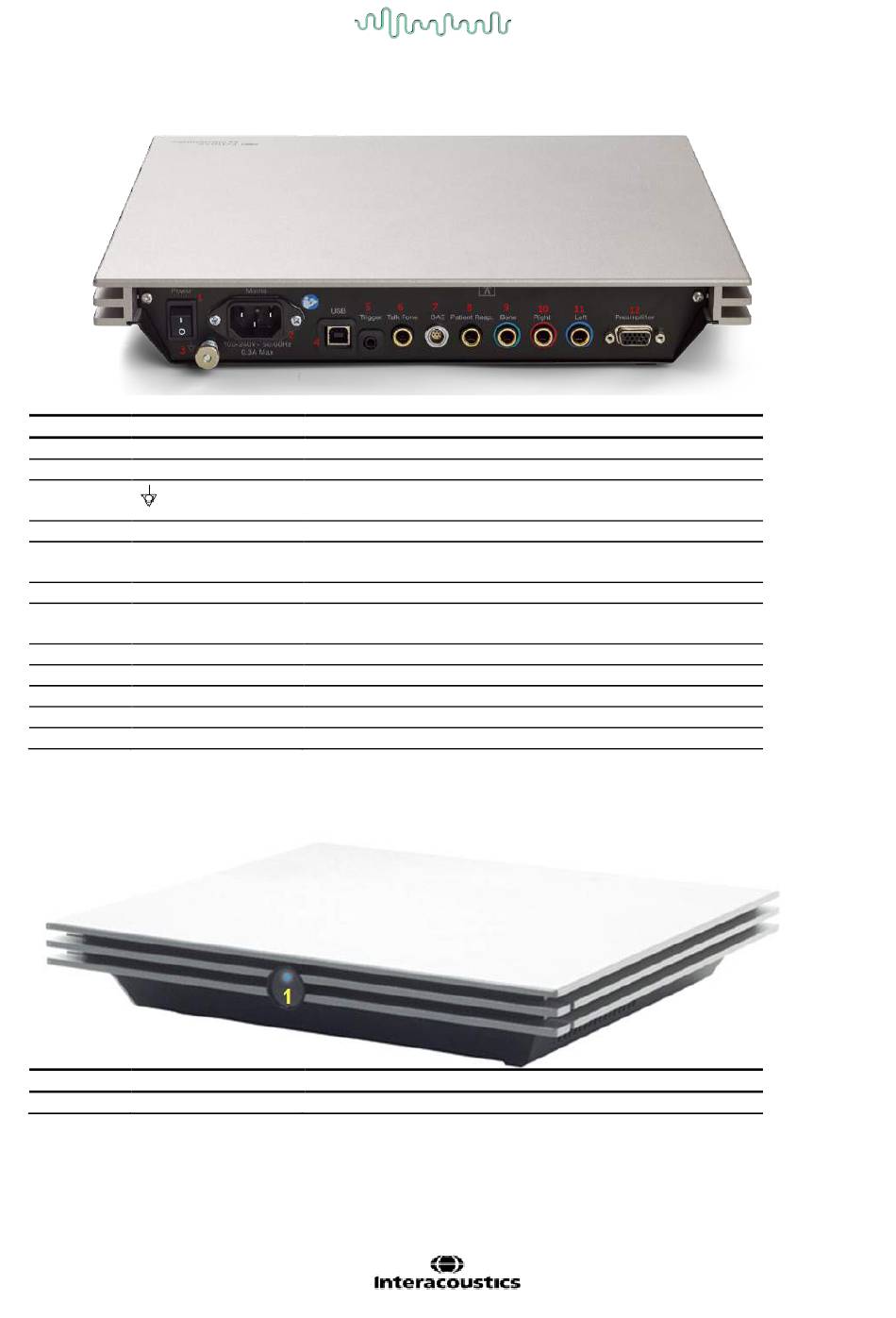

2.3.2 Eclipse back panel

Position: Symbol:
1 Power
2 Mains
3
4 USB/PC
5 Trigger In/Out
6 Talk Forward
7 OAE
8 Patient Resp.
9 Bone
10 Right
11 Left
12 Preamp.

2.3.3 Eclipse front panel

Position: Symbol:
1 Power indication
D-0120578-C – 2019/11
Eclipse – Instructions for Use - US
Function:
Turns power on/off
Plug for mains cable, 100-240V~ 50-60 Hz
Connection for equipotentiality, please refer to the chapter
markings.
Plug for USB cable to connect to PC
Connector for trigger input/output
E.g. eABR (cochlear implant) testing etc.
Connector for talk forward microphone
Plug for the OAE probe. Note the OAE probe is dedicated
to one Eclipse only! Calibration is stored on the Eclipse.
Plug for patient response button
Plug for bone conductor
Plug for right headphone/insert earphone
Plug for left headphone/ insert earphone
Plug for Preamplifier
Function:
Power on – blue light. Power off - no light.
