8.9

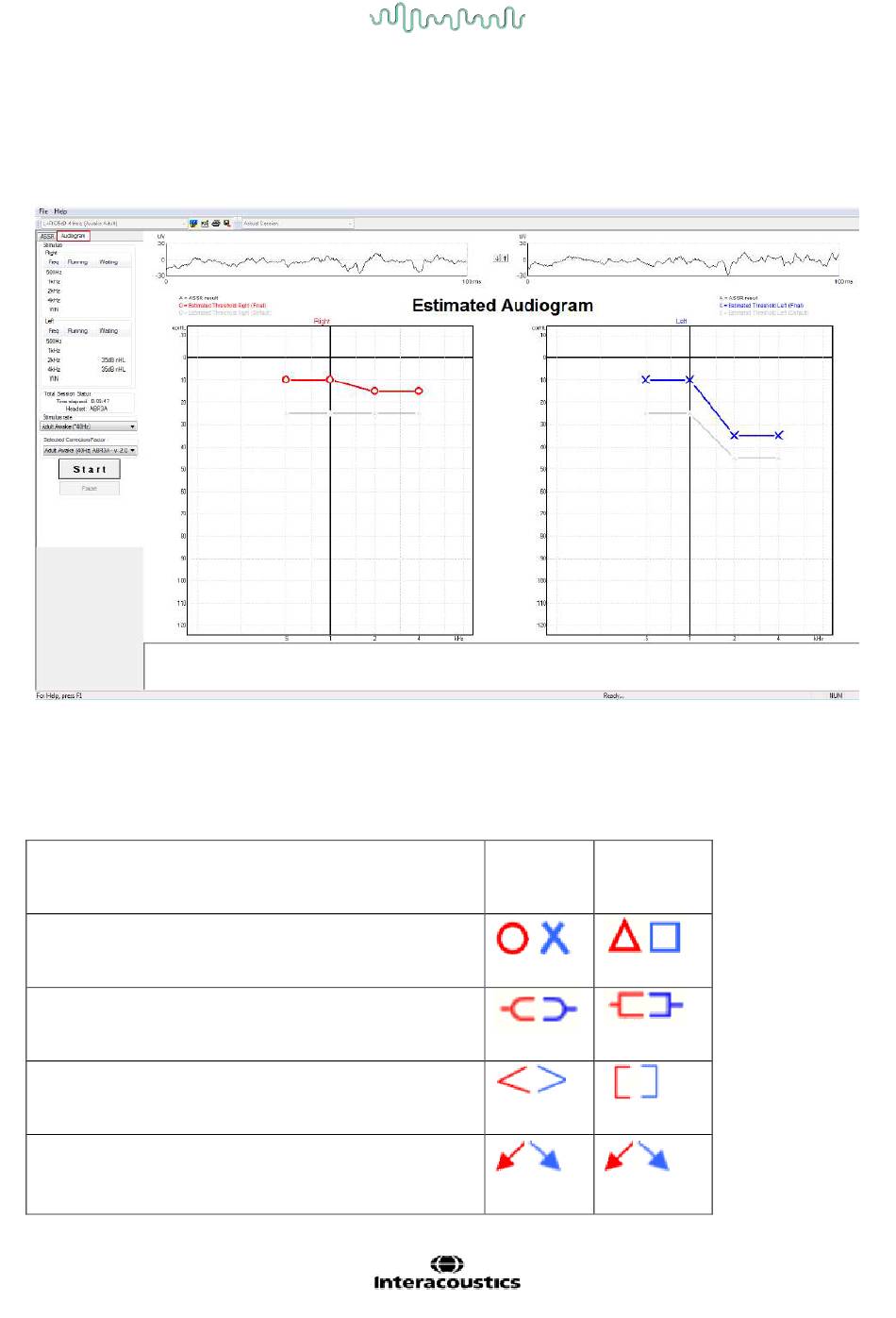

The audiogram tab

The following section describes the elements of the Audiogram Tab.
The Audiogram Tab is where the resulting estimated audiogram is displayed and correction factors can be
modified.

8.9.1 Estimated audiogram symbols

The ASSR audiogram reflects the same symbols known from audiometry, which are described in the ISO
8253-1 audiometric pure tone standard. Audiometry reflects the threshold of pure tones, whereas ASSR
uses the one octave wide NB CE-Chirp®. The NB CE-Chirp® is designed for direct hearing aid fitting.
Headphones
These are the nHL to eHL corrected estimated thresholds
to be used directly for hearing aid fitting.
Insert phones
These are the nHL to eHL corrected estimated thresholds
to be used directly for hearing aid fitting.
Bone
These are the estimated thresholds to be used directly for
hearing aid fitting.
No response
Transducer symbol used and arrow without a line
between symbols.
These symbols are not corrected, but instead shows the
D-0120578-C – 2019/11
Eclipse – Instructions for Use - US
Unmasked Masked
Right / Left Right / Left
