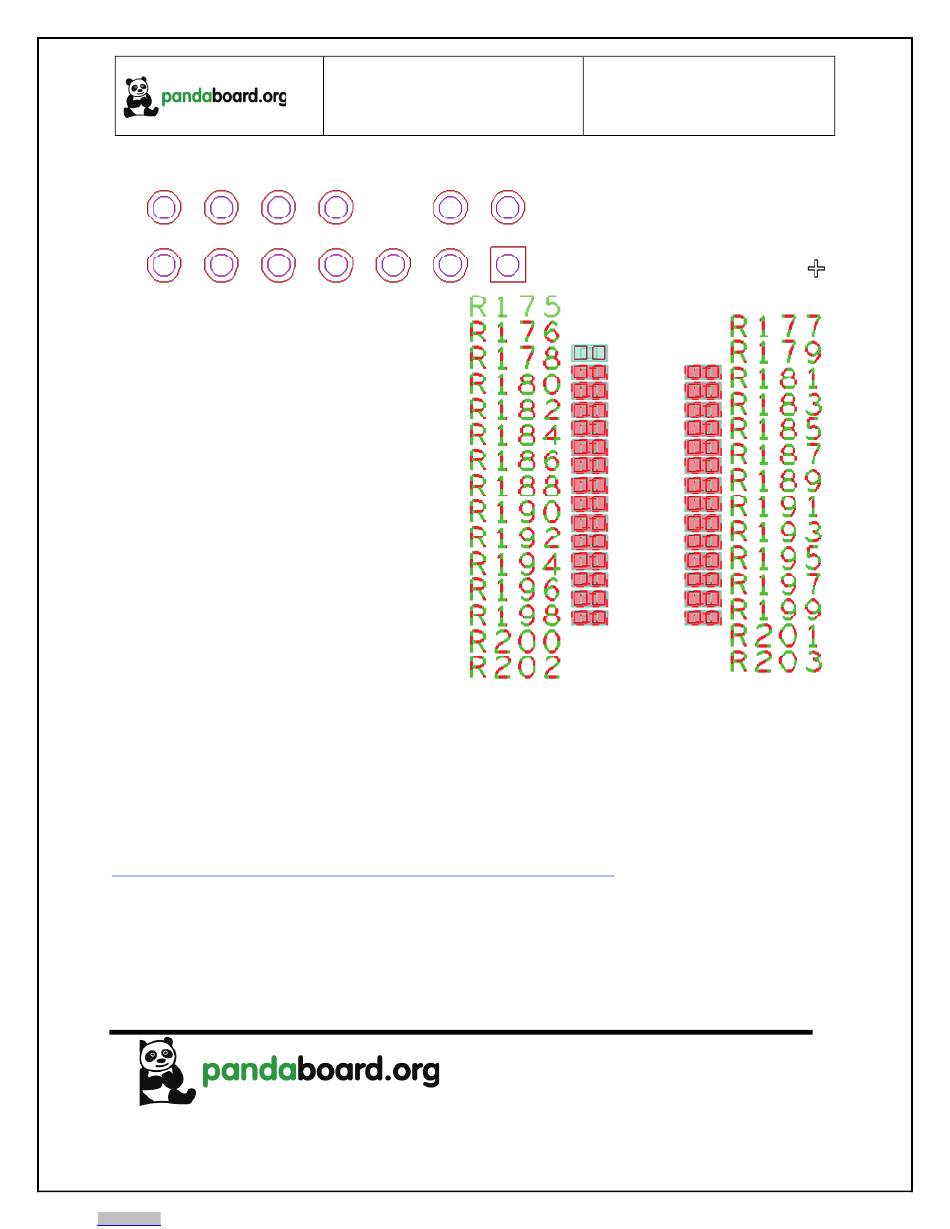

Figure 12 – Panda Display RMUX "B" Resistor Locations (Bottom Side of PCB)

2.13

The PandaBoard provides a module (LS Research Inc. P/N LS240-WI-01-A20) that provides a Bluetooth

interface, a 2.4 GHz 802.11b/g/n interface, and an FM interface. This module may be found on sheet 14

of the schematics (reference designator U4). It uses Texas Instruments' WiLink

Information for this module may be found at:

http://www.lsr.com/products/radio_modules/802.11_BGN_BT/tiwi.shtml.

See Figure 13 for a diagram of the PandaBoard connectivity to this module. The resistor (R61) that is

shaded in Figure 13 and has an asterisk by its reference designator is not installed on the current PCB.

See Table 8 on page 38 for a description of the GPIOs used to interface to the module and their function.

The OMAP4430 interfaces are connected to the LS Research WiLink

•

SDMMC5: WLAN SDIO interface

Arrow.com.

Downloaded from

OMAP

Reference Manual

Bluetooth/WLAN Interfaces

4 PandaBoard System

Revision 0.4

September 22, 2010

DOC-21010

6.0 solution.

module as follows:

Page 36 of 83
