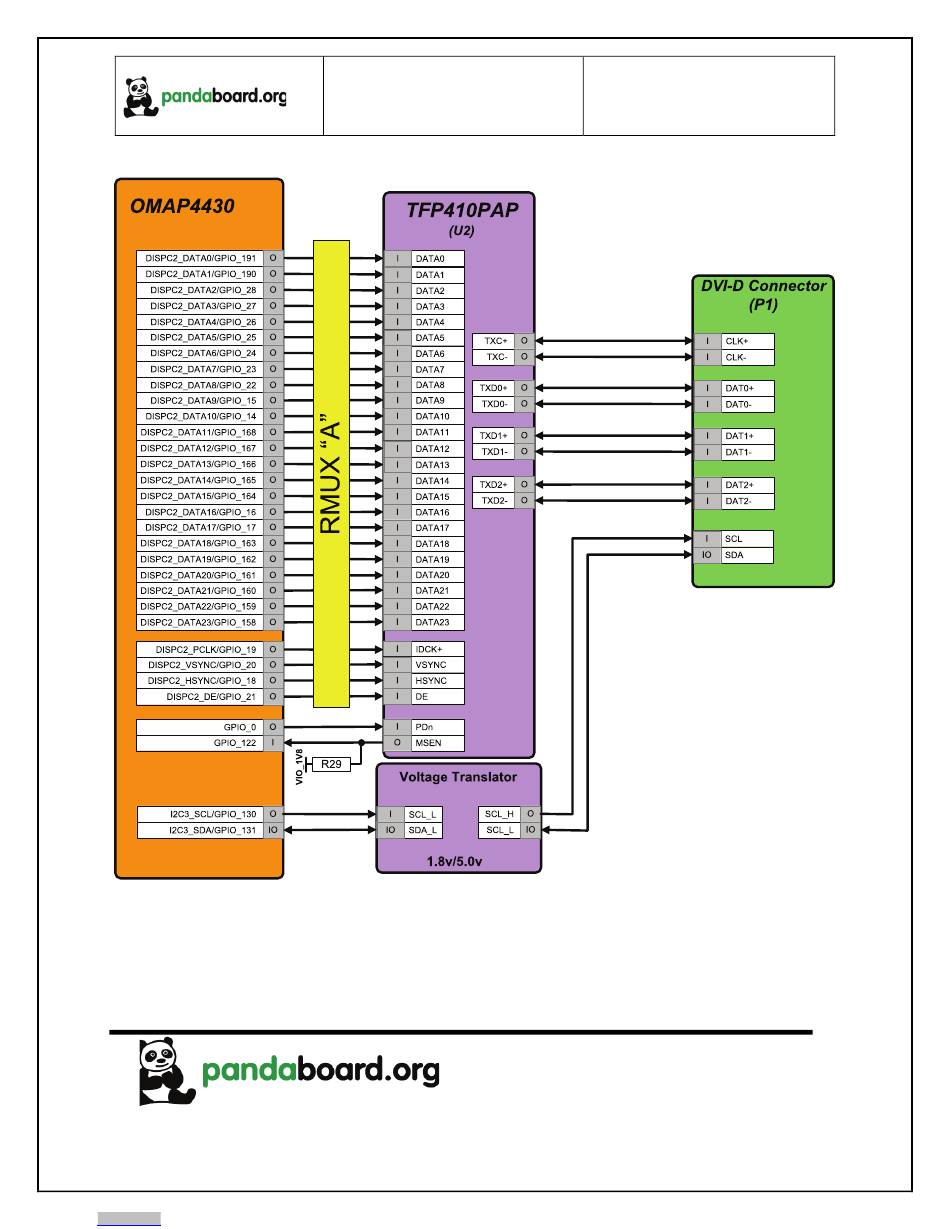

Figure 9 - Panda Dvi-D Output Block Diagram - pandaboard OMAP 4 Series System Reference Manual

See Table 5 for the GPIOs used on the Parallel display interface and a description of their function. This
table does not include the 28 parallel display signals (DATA[23:0], PCLK, VSYNC, HSYNC, and DE).
The direction column in this table indicates whether this device is an output from OMAP (O) or an input
to OMAP (I).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
TM
OMAP 4 PandaBoard System
Reference Manual
(U3)
Figure 9 – Panda DVI-D Output Block Diagram
Revision 0.4
September 22, 2010
DOC-21010
Page 31 of 83
