Figure 7 - Panda Hdmi Interface Block Diagram - pandaboard OMAP 4 Series System Reference Manual

In addition to providing ESD protection on the signals coming from the connector, this device performs
voltage translation on the control signals in the HDMI interface (SCL, SDA, CEC, and HPD) from the
1.8V levels of the OMAP4430 to the 5V levels required by a TV set. It also implements a DC/DC boost
converter that operates from the "battery" voltage, VBAT, and outputs a 5Vdc output that is capable of
sourcing up to 55mA of current. See Table 4 for the GPIOs used on the HDMI interface and a description
of their function. The direction column in this table indicates whether this device is an output from
OMAP (O) or an input to OMAP (I).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
TM
OMAP 4 PandaBoard System
Reference Manual

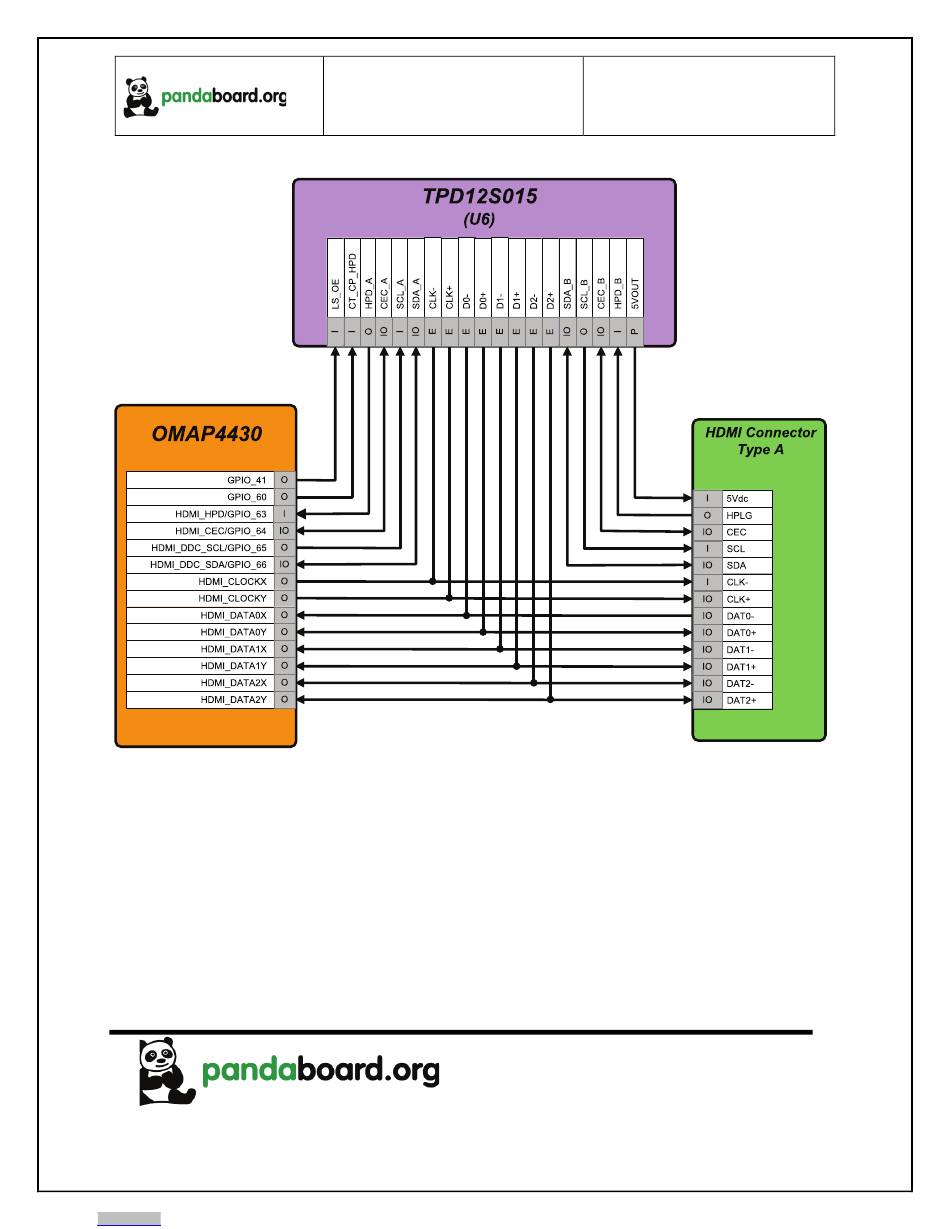

Figure 7 – Panda HDMI Interface Block Diagram
Revision 0.4
September 22, 2010
DOC-21010
(P2)
Page 29 of 83
