Hdmi Interface; Figure 6 - Panda Sdmmc1 Card Cage Block Diagram - pandaboard OMAP 4 Series System Reference Manual

2.11
The OMAP4430 PandaBoard provides a High-Definition Multimedia Interface (HDMI) via an industry-
standard Type A connector at location P2. The interface is provided using the internal HDMI module
provided by the OMAP4430. See Figure 7 for a block diagram of the PandaBoard HDMI circuitry. This
interface includes a Texas Instruments TPD12S015 HDMI Port Protection/Interface device. A datasheet
for the TPD12S015 may be found at http://focus.ti.com/docs/prod/folders/print/tpd12s015.html. The
high-speed differential clock and data lines are connected straight from OMAP to the ESD protection
device, to the connector, so that any ESD event experienced at the connector will be absorbed before
damaging the OMAP4430 device I/Os.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
TM
OMAP
Reference Manual

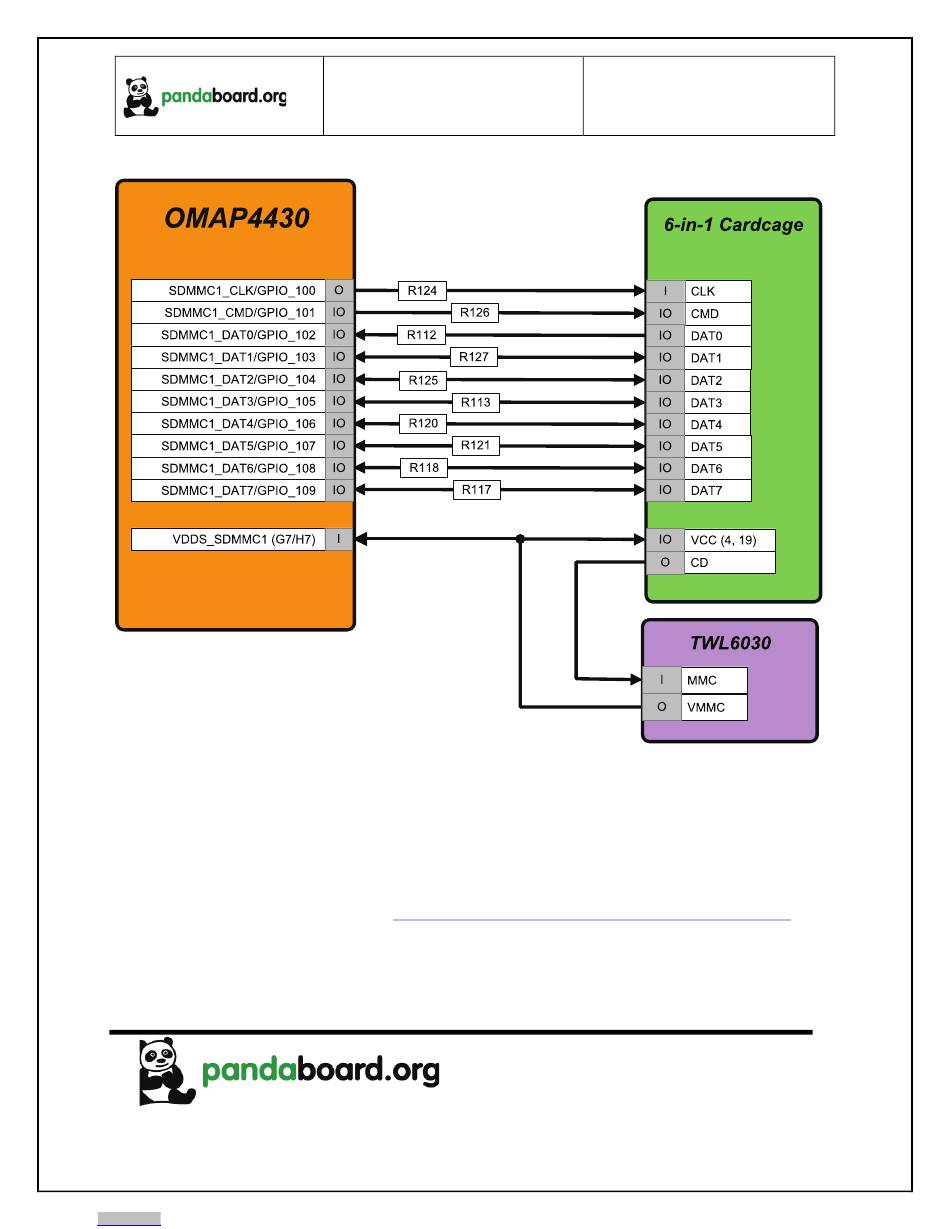

Figure 6 – Panda SDMMC1 Card Cage Block Diagram
