quadient IN-360 Series Quick Installation Manual

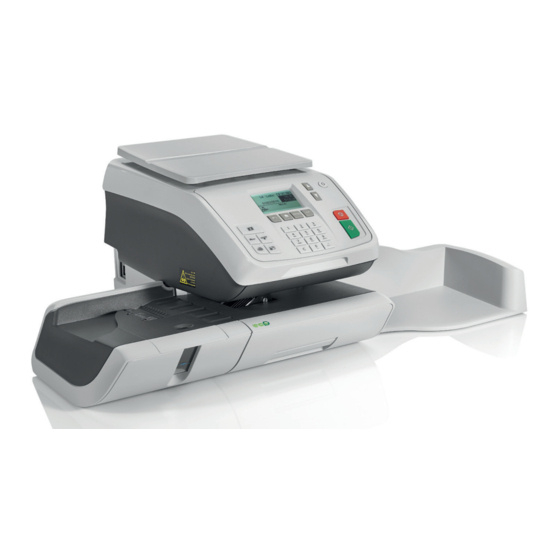

IN-360 Series Base
Quick Installation Guide
Machine components:
Feed Table with
Sealing Unit
1
Unpack all components from the box, remove packaging
and any transit tape.
5
Lift machine slightly on the left hand side and align the hooks to attach the Feed
Table (b) – align the catch tray to the right hand side of the machine
9
Installation Process
1 LAN
OK
Select LAN and press 'OK' to test connection type.
For more help with your installation, please visit:
Machine Base
Catch Tray
2
Lift the cover of the machine to reveal the
Ink Cartridge (h) and Meter (i) locations.
6
Lower Weighing Platform release panel at rear
(c).
of the machine. Place Weighing Platform
top of the machine and slide forward to lock. Lift
panel to secure and clip cable into place.
10 11
A C E G I K
B D F H J
www.myquadient.co.uk
Registration PIN
Obtain registration PIN from MyQuadient. Press OK to start the alignment test and pass a blank envelope
through the machine, then choose the straightest line. Continue
to follow the steps on screen to complete the installation.
Weighing Platform
3
Open the cover. Place the Meter (i) into the meter compartment and
push backwards until it slots into position. Close the cover.
7
Connect the Weighing Platform
on the rear of the machine. Then connect the LAN Cable
(d) on
Power Cable (g) to either side of the machine.
13
Headset alignment
Perform an imprint test Credit
Adjust alignment
Credit available
Select the letter corresponding to the best
£100.00
verticle line
A C E G I K Amount of credit to add
B D F H J
Back OK
Press the
kb.quadient.co.uk/in360
LAN Cable
Power Cable
4
Insert the Ink Cartridge (h) into the machine with the 'TOP' and 'LOCK'
stickers facing upwards. Push the Ink Cartridge
the machine until you hear a 'click' - close the cover of the machine.
8
(e) connector into the COM PORT Turn on the machine using the switch behind the
(f) and Power Cable
14
£10
button and credit the meter. Your machine is now ready to use. Please turn over
for your Quick User Guide.
Ink Meter
Cartridge
Remove tabs from
print heads before
inserting into unit!
(h) towards the back of
(g) and follow the steps on screen.
