quadient IN-360 Series Product Replacement Manual

IN-360 Series Base
Product Replacement Guide
Machine components:
Machine Base
Feed Table

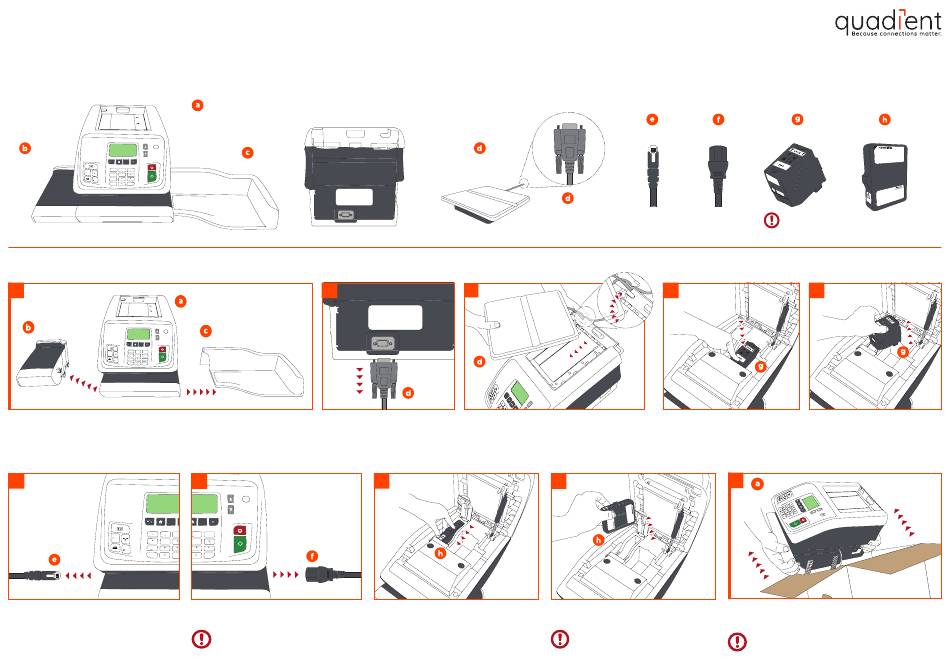

N1. Remove the components from your original machine
1
Remove the Feed Table (b) from the left hand side by lifting the machine
and sliding the Feed Table downwards to unlock, then detach the Catch Tray
the right hand side
6
Disconnect the LAN Cable (e) from the left hand
side by pressing and holding down the clip
Average Time Required: 20 minutes
Catch Tray
2
(a) slightly Remove the Weighing Platform
(c) from
connector from the COM PORT at
the rear of the machine
7
Disconnect the Power Cable (f) from the right
hand side of the machine
The machine must be disconnected from
the power supply before continuing to
the next step!
Weighing Platform
3
(d) Lower Weighing Platform release panel at rear of
the machine. Remove the Weighing Platform
from the top of the machine
8
Open the door of the Meter compartment
Remove the Meter
and slide the Meter (h) towards you
LAN Cable
Power Cable
4
Lift the cover of the machine, Press
(d)
down on the Cartridge
word 'TOP' until you hear a 'click'
N2. Unpack your replacement
1
9
Remove replacement unit from box. Remove all transit tape
(h)
and packaging from replacement machine. Place original unit
back into box ready for collection
Please do not connect your
replacement machine to the power
until step N6.2
Ink Cartridge
Meter
Remove tabs from
print heads before
inserting into unit!
5
Remove the Ink Cartridge (g)
(g) below the
Caution: Product weighs 9.9kg,
please seek assistance before lifting
