UM2592
Power supply

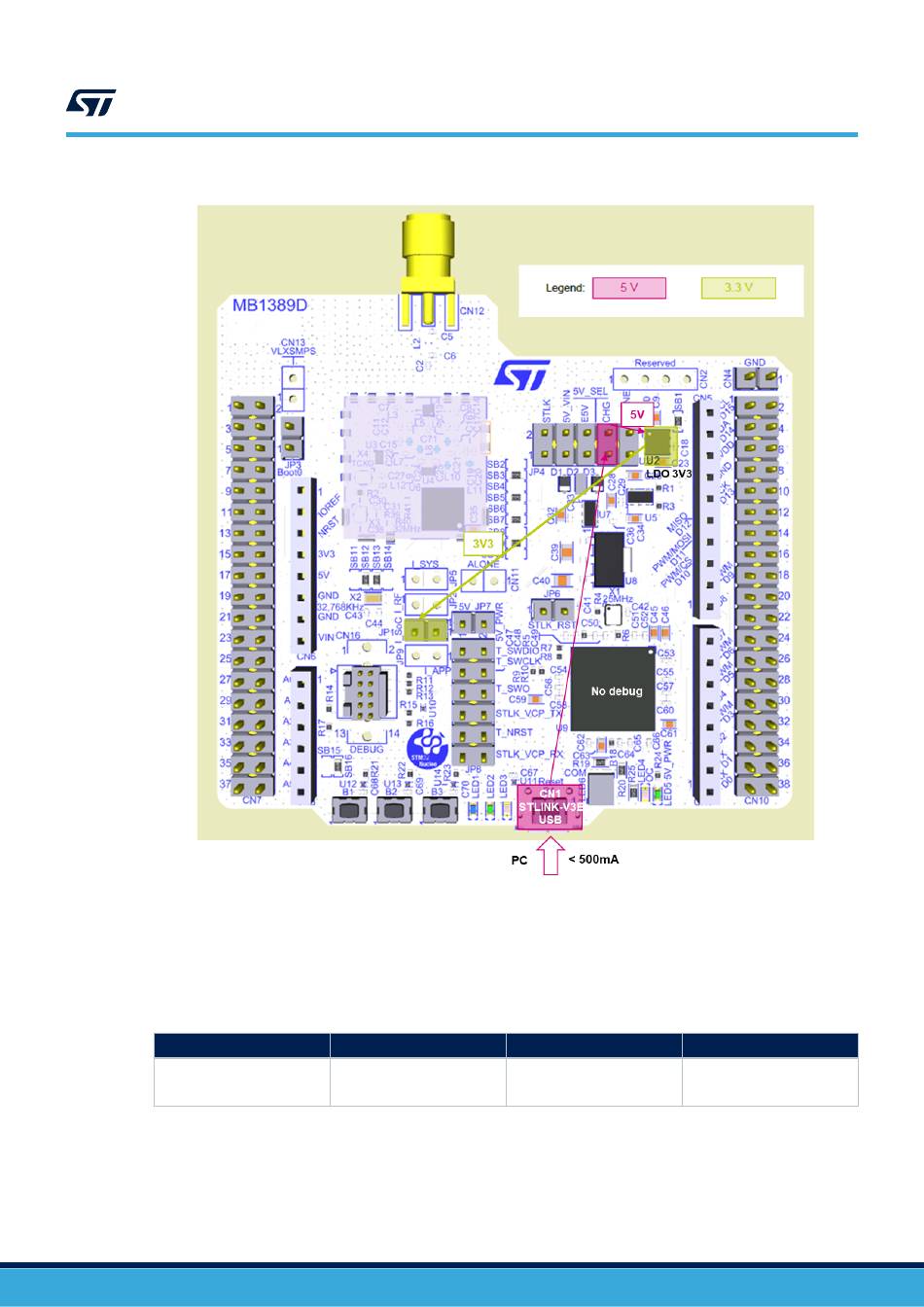

Figure 14.
Power supply input from ST-LINK USB connector with 5 V USB charger
External power supply input from external 3.3 V
When the 3.3 V is provided by a shield board, it is interesting to use the 3.3 V (CN6 pin 4 or CN7 pin 16) directly
as power input (refer to
Table 9
and
Figure
15). In this case, the programming and debugging features are not
available, since the ST-LINK is not powered.
Table 9.
External power sources: 3V3
Input power name
Connector pins
Voltage range
Maximum current
CN6 pin 4
3V3
3 V to 3.6 V
1.3 A
CN7 pin 16
UM2592 - Rev 1
page 21/49
