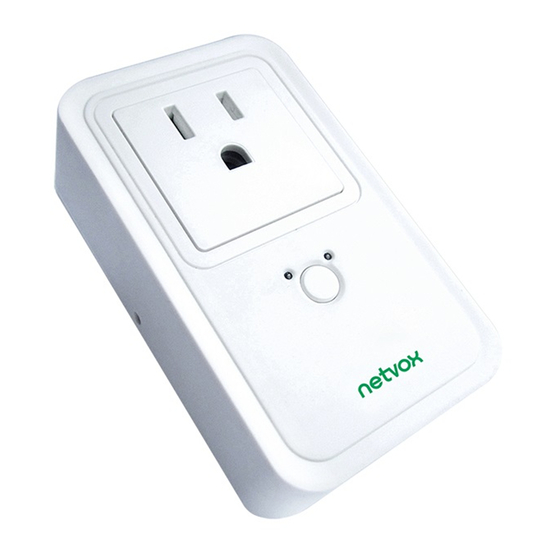

netvox R809A User Manual

Wireless plug-and-play power outlet with consumption monitoring
Hide thumbs Also See for R809A:

Advertisement

Quick Links

Download this manual
Model：R809A
Wireless Plug-and-Play Power Outlet with Consumption Monitoring
Wireless Plug-and-Play Power Outlet
with Consumption Monitoring
R809A
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict
confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The
specifications are subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R809A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R809A

Summary of Contents for netvox R809A

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction .................................. 3 2. Appearance ................................... 4 3. Main Characteristic ............................... 4 4. Operation ..................................5 5. Data Report ................................... 6 6. Load Property ................................9 7. Installation .................................. 10 8. Important Maintenance Instruction ..........................11...

  • Page 3: Introduction

    R809A is a Wireless Plug-and-Play Power Outlet with Consumption Monitoring for Netvox Class C type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. R809A can be remote and manual to control (turn on/off) the external connect the electrical equipment, it will report current, voltage, power and energy of the load.

  • Page 4: Appearance

    2. Appearance Switch Indicator Network Indicator Switch Button Factory Restoring Key The other socket type: 3. Main Characteristic  Compatible with LoRaWAN standard  100-240VAC 50/60Hz power supply (According to socket type have different power supply)  Simple operation and setting ...

  • Page 5: Operation

    4. Operation On/Off Power on/Turn on Plug the R809A and power on, the device two indicators will flash once. Power off Unplug the R809A and it will power off Network Joining Turn on the device to search the network to join.

  • Page 6: Data Report

    2. When happened the over-current alarm, it will disconnect the load and the network indicator will quickly flash about 25 times. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/page/index to resolve uplink data.
  • Page 7 Version– 1 bytes –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) PayLoadData–...
  • Page 8 ReportRsp (2bytes Unit:s) (2bytes Unit:s) Unit:1mA) Unit:1W） 0x00) (1) Turn off the R809A switch button Downlink: 900E000000000000000000 (2) Turn on the R809A switch button Downlink: 910E000000000000000000 (3) Toggle turn on/off switch button Downlink: 920E000000000000000000 (4) Clear the historical electrical energy data...

  • Page 9: Load Property

    Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, PowerChange=2W MaxTime MinTime MinTime MinTime MinTime Collects data Collects data Collects data Collects data Collects data REPORTS 11W REPORTS 10W Does not Does not Does not report report report Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, PowerChange=2W MaxTime Power Change over 2W...

  • Page 10: Installation

    When disconnecting the load power, the current and power data will report "0" Note: R809A saves the electric energy data every 10 second in memory IC AT24C02, it could loss the electric energy data in 10 seconds when power off.

  • Page 11: Important Maintenance Instruction

    8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely. •...
