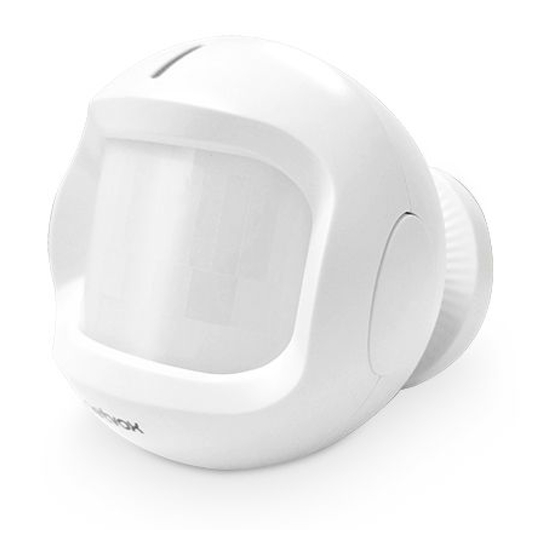

- Page 1 Wireless Occupancy & Temperature & Light Sensor Wireless Occupancy & Temperature & Light Sensor User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction....................................................2 2. Appearance....................................................2 3. Main Features...................................................3 4. Set up Instruction..................................................3 5. Data Report....................................................4 6. IR Delay Configuration................................................6 7. Installation....................................................7 7.1 Tips for installing the double-sided stickers........................................7 7.2 Tips for installing the steel nails............................................ 7 7.3 Installation requirements..............................................8 7.4 Detection coverage.................................................9 8. -
Page 3: Introduction
RB11E is a long distance wireless infrared device based on the LoRaWAN protocol (Class A). RB11E combines infrared detection, temperature, and illumination sensors. During infrared real-time detection, if a people or other organism which is active in the monitoring area, RB11E will detect the infrared signal and report status information to the gateway. -
Page 4: Main Features
Low power consumption and long battery life Note*: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life of various models in different configurations. 4. Set up Instruction On/Off Insert batteries. -
Page 5: Data Report
Temperature----0x0064 (1°C) Illumination----0x0064 (100Lux) Infrared trigger: After the RB11E device detects the infrared, the red LED blinks once, and immediately reports the status values of all the current sensors. Infrared status bits: Someone: "1"; No one: "0" Note: The data transmission cycle of the device is subject to the programming configuration before shipment. - Page 6 TemperatureC illuminance ytes Unit:s) es Unit:s) byte Unit:0.1v) hange(2byte （2byte Unit: Unit:0.01℃) 1Lux） ConfigReportRsp 0x81 Status(0x00_ Reserved (8Bytes,Fixed 0x00) success) RB11E 0x03 ReadConfigReport 0x02 Reserved (9Bytes,Fixed 0x00) ReadConfigReport 0x82 MinTime(2b MaxTime(2byt BatteryChange(1 TemperatureC illuminance ytes Unit:s) es Unit:s) byte Unit:0.1v) hange(2byte Change （2byte...
-
Page 7: Ir Delay Configuration
6. IR Delay Configuration If someone or animal is moving in the monitoring area, RB11E will detect the infrared signal and the red indicator will flash once. In the mean time, it reports occupied status (at the same time, other sensor status value are also reported). -
Page 8: Installation
The IRDetectionTime is 60 seconds and IRDisableTime is 30 seconds, living creature is detected at the 25th second of the first 30 seconds. RB11E will restart the IR detecting procedure(IRDetectionTime). No living creature is detected during the next IRDetectionTime and RB11E therefore report “unoccupied.” 7. Installation 7.1 Tips for installing the double-sided stickers... -
Page 9: Installation Requirements
Note: The steel nails are only for brick walls, cement walls, woods, etc. They are not for concrete, as concrete is too hard for the nails. 7.3 Installation requirements 1. Indoor use only, please check the installation places. The sensitivity of the PIR sensor has a lot to do withe the motion direction of the human body. The PIR sensor is more sensitive to vertical motions, while it is less sensitive to horizontal motions. -
Page 10: Detection Coverage
7.4 Detection coverage Horizontal projected area Space projected area IR coverage range: The coverage area A- Distance: 11 meters; sensing angle: 30°. The coverage area B- Distance: 8 meters; sensing angle: 60°. The coverage area C- Distance: 5 meters; sensing angle: 120°. 8. -
Page 11: Fcc Statement
9. FCC Statement The OEM integrator has to be aware of not to providing information to end users regarding how to install or remove this RF module in the user manual of the end product.The user manual which is provided by OEM integrators for end users must Include the following information in a prominent location.
