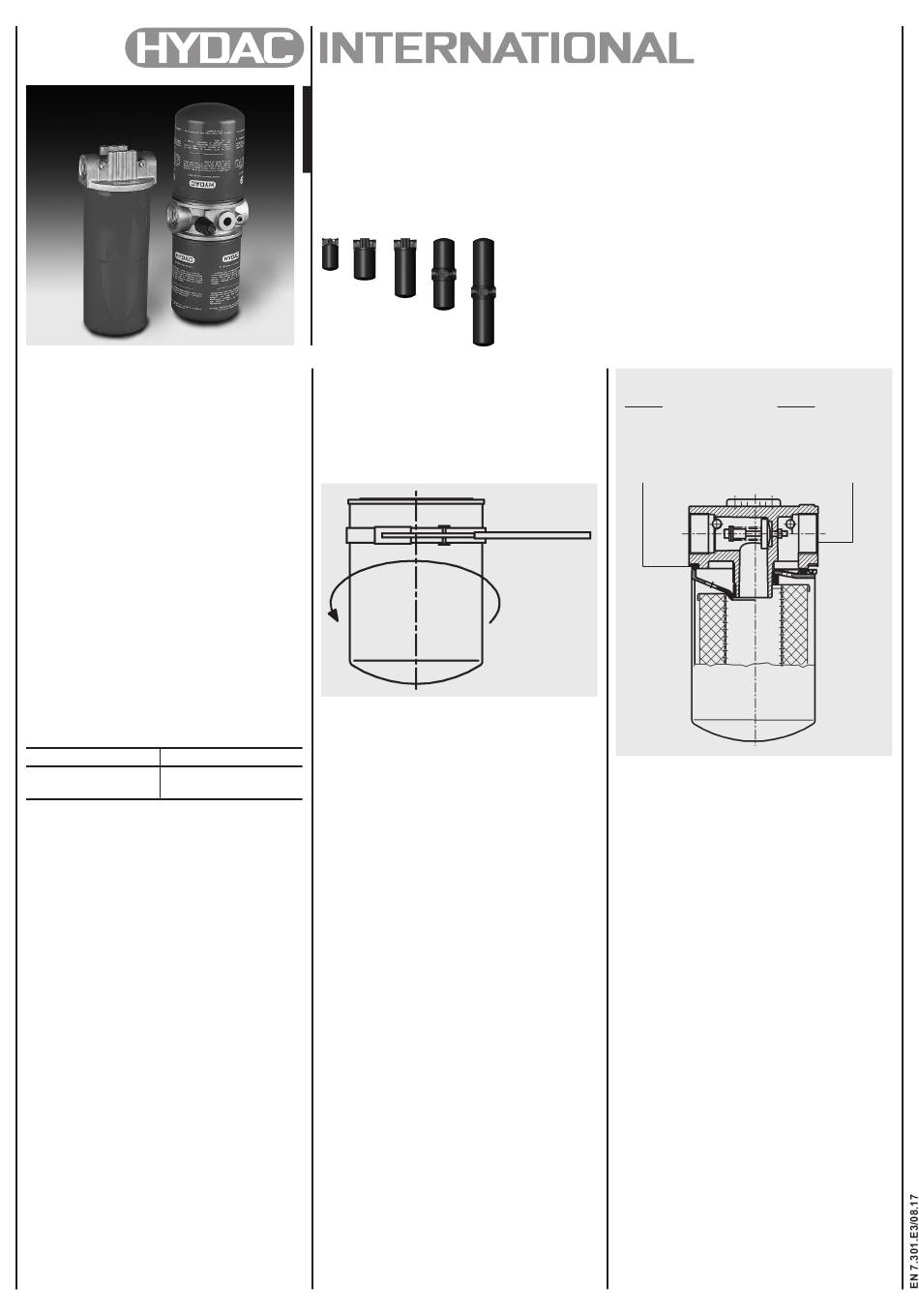

Hydac MF80 Spare Parts List

1. MAINTENANCE
1.1 GENERAL
PLEASE FOLLOW THE
MAINTENANCE INSTRUCTIONS!
1.2 INSTALLATION
Before fitting the filter into the system,
check that the operating pressure
of the system does not exceed the
permitted operating pressure of the
filter.
Refer to the name plate on the filter!
1.3 COMMISSIONING
Check that the correct filter
cartridge(s) is/are firmly screwed
in place.
1.4 TOOLS REQUIRED FOR
MAINTENANCE
Strap wrench
1.5 TORQUE VALUES FOR
CLOGGING INDICATORS
Type Max. torque
VMF The indicators are
glued in!
Spare Parts List
Spin-On Filter MF/MFD
up to 300 l/min, up to 8 bar
MF MF MF MFD MFD
80 160 180 160 180
2. CHANGING THE CARTRIDGE
2.1 REMOVING THE ELEMENT
1. Unscrew filter cartridge anticlockwise
using a strap wrench.
NOTICE:
Contamination or incomplete pressure
release on disassembly can lead to
seizing of the bowl thread.
Filter elements which cannot be cleaned
must be disposed of in accordance with
environmental protection regulations.
Seal for version MA Seal for version MG
Notice: Notice:
In this case, the seal In this case, the
must be inserted in seal is inserted in
the filter head. the filter cartridge.
FILTER CARTRIDGE TYPE MA:
2. Lubricate seal and insert into filter
head
3. Unscrew cartridge until contact is
made with the sealing surface –
then tighten fast by an additional
half to complete turn.
4. Do not tighten excessively!
FILTER CARTRIDGE TYPE MG:
2. Lubricate seal and fit into filter
cartridge
3. Unscrew cartridge until contact is
made with the sealing surface –
then tighten fast by an additional
half to complete turn.
4. Do not tighten excessively!
