Connectors on the legacy peripheral daughterboard (MB1351)

7.2.1

MB1351_CN1 HDMI sink connector

Pin number
1,3,4,6,7,9,10,12
13
14
15
UM2783 - Rev 1
CAN2L

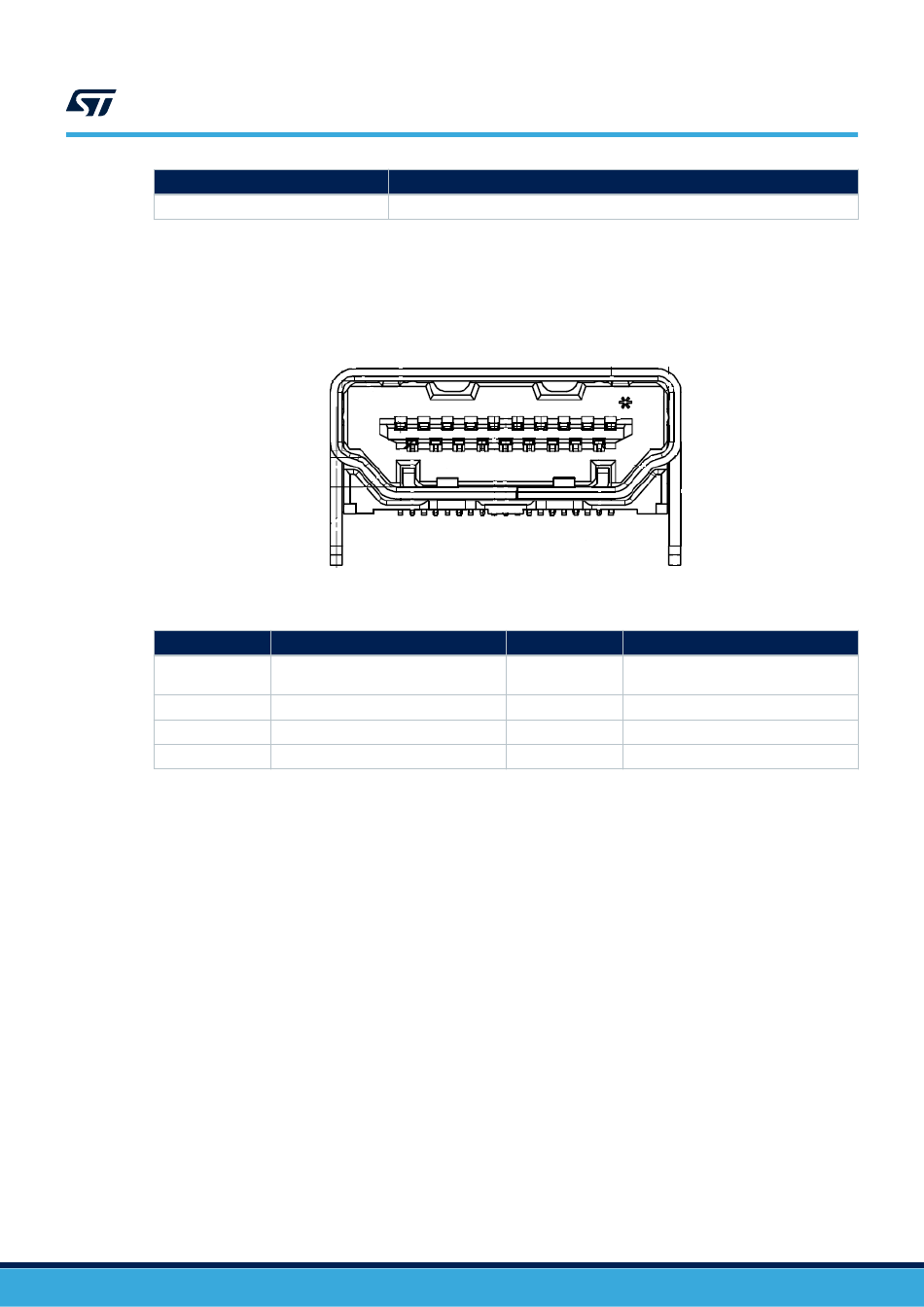

Figure 20. MB1351_CN1 HDMI sink connector (front view)
Table 36. MB1351_CN1 HDMI sink connector
Description
TMDS differential signal pair connected
to MB1351_CN3
CEC (PB10)
NC
I2C2_SCL (PB13)
Connectors on the legacy peripheral daughterboard (MB1351)
Description
Pin number
16 I2C2_SDA (PB14)
2,5,8,11,17 GND
18 HDMI_5V_Sink
19 HPD (PD2 through transistor)
UM2783
Description
page 37/59
