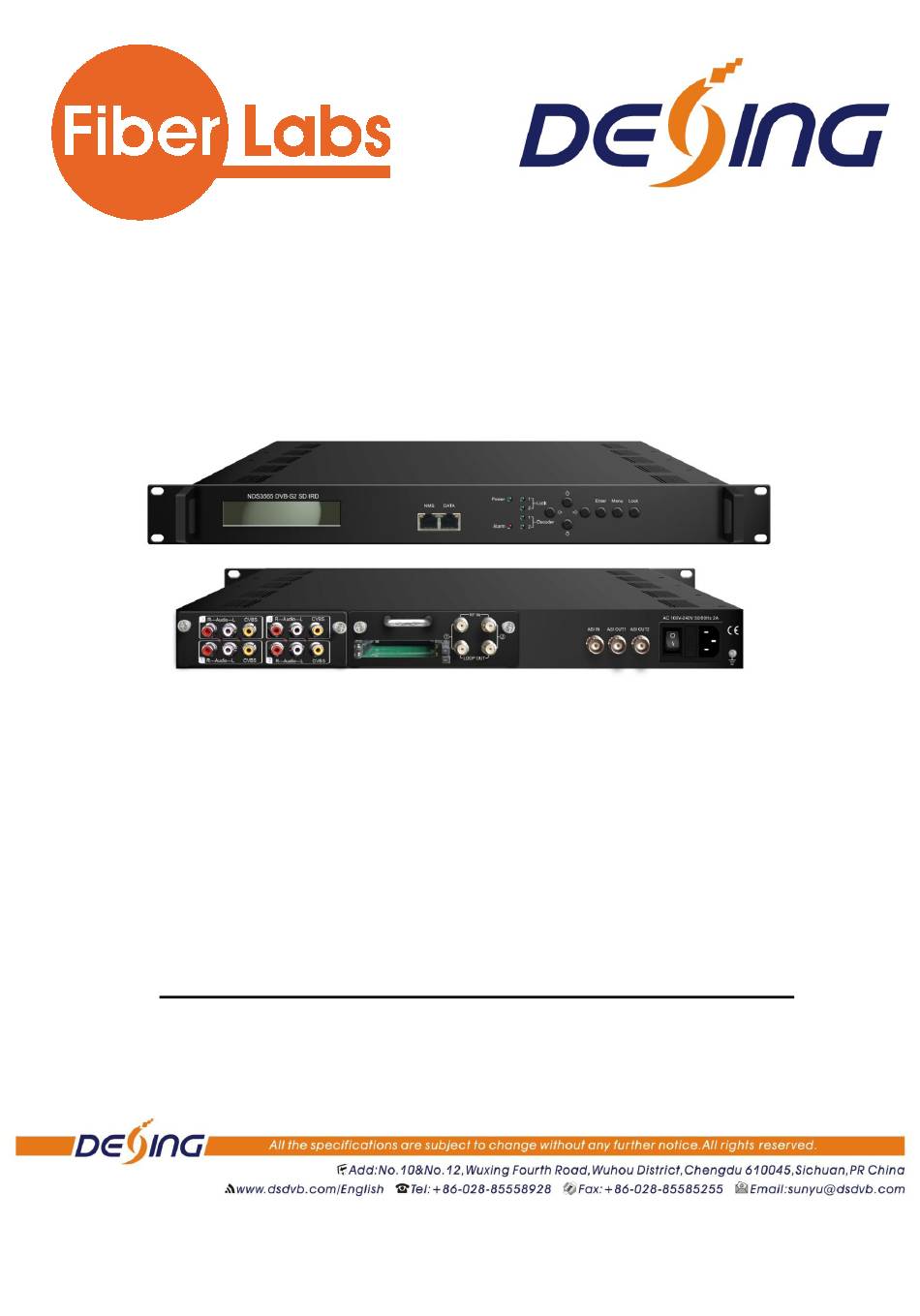

NDS356xC SD IRD User's Manual
Web-NMS Version: 1.10
Software: 2.18
Hardware: 2.00
Chengdu Dexin Digital Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dexin NDS3561C and is the answer not in the manual?

Questions and answers

Summary of Contents for FiberLabs Dexin NDS3561C

  • Page 1 NDS356xC SD IRD User’s Manual Web-NMS Version: 1.10 Software: 2.18 Hardware: 2.00 Chengdu Dexin Digital Technology Co., Ltd.
  • Page 2 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner.

  • Page 3: Table Of Contents

    DIRECTORY Chapter 1 Product Outline ................... 4 1.1 Outline ........................4 1.2 Features ........................4 1.3 Specifications ......................4 1.4 Principle Chart ......................5 1.5 Appearance and description ..................6 Chapter 2 Installation Guide ..................7 2.1 Acquisition Check ....................7 2.2 Installation Preparation .....................

  • Page 4: Chapter 1 Product Outline

    Chapter 1 Product Outline 1.1 Outline NDS356xC SD IRD is DEXIN‟s all-in-one device which integrates demodulation, de-scrambling and decoding in one case to convert RF signals (DVB-C, T/T2, S/S2 optional) into analogue video (CVBS) output. It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP.

  • Page 5: Specifications

    NDS356xC SD IRD User‟s Manual 1.3 Specifications Input Output (4*CVBS optional) 2 x RF (DVB-C, T/T2, S/S2 optional), F type 1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / 1×ASI input for re-mux, BNC interface Output multicast) 1xIP input for re-mux (UDP) 2×ASI BNC interface Video Interface: 4xCVBS (RCA)

  • Page 6: Appearance And Description

    NDS356xC SD IRD User‟s Manual 1.5 Appearance and description Front Panel Illustration: LCD Display NMS Port (for PC connection) DATA Port (for IP stream input & output) Indicators Area Up/Down/Left/Right Buttons Enter Key Menu Key Lock Key Rear Panel Illustration Decoder Module (for A/V output) Demodulation &...

  • Page 7: Chapter 2 Installation Guide

    NDS356xC SD IRD User‟s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  NDS356xC SD IRD 1pcs ...
  • Page 8 NDS356xC SD IRD User‟s Manual Item Requirement When user installs machine frame array in one machine hall, the distance between 2 rows of machine frames should be Machine Hall Space 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire"S Connection

    NDS356xC SD IRD User‟s Manual  It is prohibited to use any other device as part of grounding electric circuit  The area of the conduction between grounding wire and device‟s frame should be no less than 25mm 2.2.4 Frame Grounding All the machine frames should be connected with protective copper strip.
  • Page 10 NDS356xC SD IRD User‟s Manual  IP Input/output Cable Illustration:  Tuner Cable Illustration:  ASI Input/output Cable Illustration:  CVBS & Audio output Cable Illustration: (for connection between the IRD and TV set) 10 / 41...

  • Page 11: Chapter 3 Operation

    NDS356xC SD IRD User‟s Manual Chapter 3 Operation The front panel of NDS356xC SD IRD is the user-operating interface and the equipment can be conveniently operated and managed by user according to the procedures displayed on the LCD: Keyboard Function Description: MENU: Cancel current entered value, resume previous setting;...
  • Page 12 NDS356xC SD IRD User‟s Manual Initializing Lock SD IRD Down Enter Menu Bitrate: 70.865Mbps Main Menu: Status: Status Alarm Status: Uptime Tuner Parameters: 1: Tuner DVBS/S2 Main Menu: Input Sets Satellite frequency Tuner Parameters Input Sets 1: Tuner DVBS/S2 LNB frequency Symbol rate LNB voltage Signal Lock...
  • Page 13 NDS356xC SD IRD User‟s Manual Decoder 1: Main Menu Decoder: Video Format Decoder Decoder 1 Audio Mode Audio Select Volume Search Program Program Select Rom Version Decoder Status Decoder: ‘ ’ (Same content with Decode 1 above) Decoder 2/3/4 Main Menu： IP Stream: IP Stream Service IP...

  • Page 14: General Setting

    NDS356xC SD IRD User‟s Manual 3.2 General Setting Switch on the device and after a few seconds‟ initialization, it presents start-up pictures as below: SD IRD Start up… Start OK… Bitrate: xx.xxx Mbps  SD IRD: Device‟s name  Bitrate: xx.xxx MHz indicates the current ASI output bitrate. Press LOCK key on the front panel to enter the main menu.
  • Page 15 NDS356xC SD IRD User‟s Manual 3.2.2 Input Sets NDS356xC supports 2 tuners input, 1 ASI input and 1 IP stream input. Users can enter „Input Sets‟ to configure the tuner/ASI/IP parameters to receive the transport streams and select programs to mux out. It displays as below: Input Sets 1 Tuner DVBS/S2 2 Tuner DVBS/S2...
  • Page 16 NDS356xC SD IRD User‟s Manual For reading the input TS Locked Mux Program bitrate Bitrate: 4.040 Mbps TS Lock Parse Program For reading the number Searching Program Select Program programs from Get 7 Programs Tuner 1 (or 2) Mux Program (0/7) 1: CCTV 1 Process of selecting programs to Press ENTER key...
  • Page 17 NDS356xC SD IRD User‟s Manual IP Config Input IP Input Port Multicast IGMP Snooping Off, V2 and V3 Optional Service IP Mux Program: Users can parse the IP input program list and select programs to mux out in this menu. The operating method is same with what explained above.
  • Page 18 NDS356xC SD IRD User‟s Manual CI Max Bitrate options range from 48-108Mbps. Move the triangle to select a value as principle: Actual Input Bitrate≤ Max Bitrate≤CI Max decrypting capacity Max Bitrate ► 48 Mbps  Input TS Mode NDS356xC has 4 signal sources: Tuner 1, Tuner 2, ASI, and IP. One CI card can applied to descramble one channel input signal from the 4 signal sources.
  • Page 19 NDS356xC SD IRD User‟s Manual Users can read the other info about the CI card in the following menus. Rom Version 4.0.4.0 Card Status Normal Descramble Error Normal 3.2.4 BISS Descrambling NDS356xC IRD also supports BISS to descramble encrypted programs from RF, ASI or IP. Users can enter 2 BISS descrambling to configure the 2 BISS respectively.
  • Page 20 NDS356xC SD IRD User‟s Manual Input TS Mode ► Skip BISS Tuner 1 Tuner 2  Descrambler Key/SK/Word Mode/Burned Key Users need to input keys to descramble programs as per the BISS scrambling side which usually is DVB-S/S2 modulator. The descrambling principle is as following chart: Modulating Side (BISS SCR) Receiving Side (BISS DESCR) Digit (0x----)
  • Page 21 NDS356xC SD IRD User‟s Manual 3.2.5 TS Config Users can press ENTER key to enter „TS Config‟ to configure the parameters of TS output through ASI. TS Config TS output mode TS output bit rate ASI output select TSID ONID TS output mode: Enter this menu to select a TS output mode.
  • Page 22 NDS356xC SD IRD User‟s Manual ON ID: Users can set ON ID (original network ID) in this menu. ON ID 00001 3.2.6 Decoder Users can press ENTER key to enter „Decoder‟ to set the video to be decoded. NDS356xC IRD supports 4 separate decoded videos/audios output at the same time. Decoder Decoder 1 Decoder 2...
  • Page 23 NDS356xC SD IRD User‟s Manual NMS IP The IP address for connecting 192.168.000.136 the device to PC Subnet Mask 255.255.255.000 Gateway 192.168.000.001 MAC Address 201012345678 Web NMS Port 00080 Reset Password? 3.2.8 System Users can set the system parameters in this menu. Enter „System‟ submenus to separately set corresponding parameters.
  • Page 24 NDS356xC SD IRD User‟s Manual Save Configuration? Choose yes to save settings. and press ENTER to confirm Choose yes to restore the Load Saved CFG? device into the last saved configuration. Reset All Sets? Choose yes to restore the device into factory‟s default configuration.

  • Page 25: Chapter 4 Web-Based Nms Management

    NDS356xC SD IRD User‟s Manual Chapter 4 Web-based NMS Management In addition to using front buttons to control the device, users can also control and set the configuration with the web Brower in the PC. 4.1 login The default IP address of this device is 192.168.0.136. (We can modify the IP through the front panel.) Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment.
  • Page 26 NDS356xC SD IRD User‟s Manual can have an overview of the device‟s system information and working status. Language shift area System informatio Input information of the two satellite signals, ASI and IP stream. Output information of the User can click any item here to enter the TS and decoded program.
  • Page 27 NDS356xC SD IRD User‟s Manual Parameters → Input 3 (ASI Input): “Input 3” refers to the ASI source, this page is not applicable as it does not need to configure ASI signal. (Figure-4) Figure-4 Parameters → Input 4 (IP Input): From the menu on left side of the webpage, clicking “Input 4”, it displays the interface where users can configure the IP input parameters.
  • Page 28 NDS356xC SD IRD User‟s Manual Parameters → CI Card: NDS356xC SD IRD supports 2 CI cards (Card A & Card B) to descramble programs from either encrypted RF, ASI or IP. Users can click and enter „CI Card‟ to configure the 2 cards respectively.
  • Page 29 NDS356xC SD IRD User‟s Manual  Card Error Check Users can decide whether to enable or disable the card error check function by checking the box. After configuring the above CI card parameters, click button to apply the input data and button to parse programs from the channel selected in „Input TS then click Mode‟.
  • Page 30 NDS356xC SD IRD User‟s Manual Parameters → BISS: From the menu on left side of the webpage, clicking “BISS”, it displays the interface where users can configure 2 BISS and descramble the input channels. (Figure-8) BISS Selection Area Figure-8 Input TS Mode： NDS356xC has 4 signal sources: Tuner 1-2, ASI, and IP.
  • Page 31 NDS356xC SD IRD User‟s Manual Input corresponding items and data to active the BISS descrambling as principles be Modulating Side (BISS SCR) Receiving Side (BISS DESCR) Digit (0x----) Mode 1+SW Data Mode 1+Descrambler Key Mode E+ESW Data + Device Mode E + Descrambler Key + Burned Key Mode E+ESW Data + Input ID Mode E + Descrambler Key + SK After configuring the above BISS parameters, click...
  • Page 32 NDS356xC SD IRD User‟s Manual Configure TS ID and ON ID here for the output stream. Figure-9 Output TS Mode: Under this mode, users can randomly select programs from any input channel to mux out. To transfer programs from Tuner 1/2 out without mux To transfer programs from ASI out without mux To transfer programs from IP out without mux ASI Output Select: The TS content output through ASI is copied from the one of the IP...
  • Page 33 NDS356xC SD IRD User‟s Manual Output Area Input Area Operation Area Figure-9 Configure „Input Area‟ and „Output Area‟ with buttons in „Operation Area‟. Instructions are as below: : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output.
  • Page 34 NDS356xC SD IRD User‟s Manual This device supports 8 SPTS IP out. Users can enable program output via SPTS here. NOTE! Figure-10 Input new data and click „Save‟ button at last to confirm the modification. Parameters → PID Pass: Click this button to add new columns.
  • Page 35 NDS356xC SD IRD User‟s Manual Decoding channel selection Select one prog to output from the list. Figure-12 After finishing the configuration, click to confirm. Parameters → IP Stream: This unit supports TS output in IP (1 MPTS & 8 SPTS). Click “IP Stream” and it displays the interface where users can configure the MPTS &...
  • Page 36 NDS356xC SD IRD User‟s Manual Parameters → Network: From the menu on left side of the webpage, clicking “Network”, it will display the screen as Figure-14 where to configure the network parameters for the device. Figure-14 System → LCD/Keyboard: From the menu on left side of the webpage, clicking “LCD/Keyboard”, it will display the screen as Figure-15 where to control the device‟s front panel.
  • Page 37 NDS356xC SD IRD User‟s Manual as Figure-16 where to set the login account and password for the web NMS. Figure-16 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it will display the screen as Figure-17 where to save or restore your configurations. Figure-17 37 / 41...
  • Page 38 NDS356xC SD IRD User‟s Manual System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it will display the screen as Figure-18 where to backup or load your configurations. Figure-18 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-19 where to update firmware for the device.
  • Page 39 NDS356xC SD IRD User‟s Manual System → Reboot: From the menu on left side of the webpage, clicking “Reboot”, it will display the screen as Figure-20 where to restart the device manually. Figure-20 39 / 41...

  • Page 40: Chapter 5 Troubleshooting

    NDS356xC SD IRD User‟s Manual Chapter 5 Troubleshooting DEXIN‟s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products‟ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 41: Chapter 6 Packing List

    NDS356xC SD IRD User‟s Manual Chapter 6 Packing List  NDS356xC SD IRD 1pcs  User‟s Manual 1pcs  CVBS Cable set 2 sets  ASI Cable 1pcs  Power Cord 1pcs Ordering Guide NDS356xC, „x‟ should be interpreted as different digits which indicate tuners of different standard. ...
