Growatt MIN 2500TL-XE Quick Manual

MIN 2500-6000 TL-XE
Quick Guide
1.
Overview
Object
A
B
C

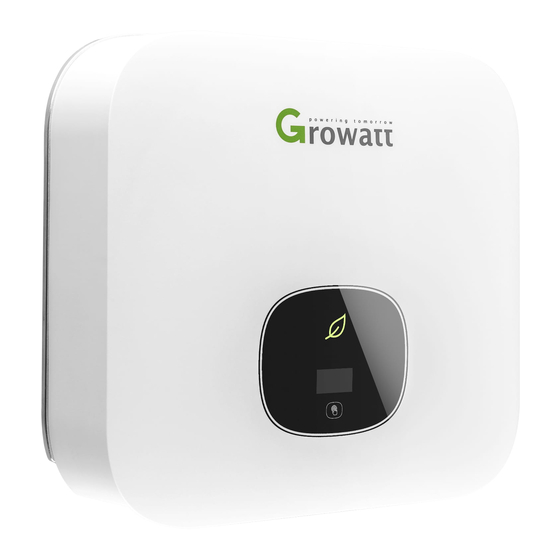

A Inverter
B Mounting bracket
C Quick Guide
L D Monitor(Optional)
K
J
D E F G H I
Signal connector
E
PCI connector
F Self-tapping screws
2.
Installing the Device
2.1 Installation Requirements
Tilt and Space
2.2 Installing the Mounting Bracket And Min 2500-6000 TL-XE
Drilling holes
3.
Connecting Cables
3.1 Installing the PV Input Power Cable
Positive metal
Positive connector
Cables terminal
4~6mm²
4~6mm²
Cables
Negative metal
Negative connector
termina
Quantity
Description G Safety-lock screw
1 H Plastic expansion pipe
1 I PV+/PV- terminal
1 J PV+/PV- metal terminal
K AC connector
1
L Uninstall signal and AC connector tool
1
Notice：
1
Before installing the device,check that the pack-
age contents are intact and complete against
the packing list.If any damage is found or any c-
3
omponent missing,contact your dealer.
2.3 Installing the Monitor
Ensure that the Monitor is installed securely.
Install The Inverter Remove
Side
The Inverter
Side
Installation & Tighten
Fix the wall bracket
screw assemblies
Pull the PV input power cable back to ensure that it is connected securely.
The Inverter
Side
3.2 Installing the AC Output Power Cable
Connect the AC output power cable to the AC connector.
1
Type 1
3
2/2
2/2
1
1
The Inverter Side
Lock the housing
Notice：
Suggest using 6mm²cables. Ensure the exposed core wire is totally inserted into the cable hole and connected securely.
3.3 Installing the Signal Cable
The Inverter
Side
The Inverter
Side
3.4 Installing the PCI Cable
We use 8Pin COM Port Connector as Power Control Interface(PCI) for European models.
European
The Inverter
Side
Type 2
The Client Side
The Inverter Side
L ----
Line
N ---- Neutral
Lock the housing
PE ---- Ground
SYS COM Port Pin Definitions
NO.
The Inverter
side
3 RS485A2
The Inverter 4 RS485B2
side
5 AntiReFlux-A
6 AntiReFlux-B
The Client Side
L ----
Line
N ---- Neutral
PE ---- Ground
Definition
Signal for RS485
RS485A for meter or CT-P
RS485B for meter or CT-N
The Inverter
side
The Inverter
side
Unclock the housing
