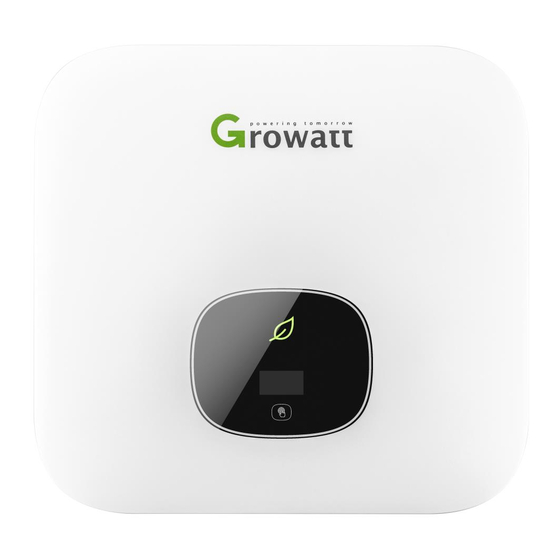

Growatt MIN 2500TL-X Installation & Operation Manual
Hide thumbs
Also See for MIN 2500TL-X:
- Installation & operation manual (51 pages) ,
- Quick manual (2 pages)
Advertisement
Growatt New Energy
Download
Manual
Shenzhen Growatt New Energy Technology CO.,LTD
No.28 Guangming Road, Shiyan Street, Bao'an District,
No.28 Guangming Road, Shiyan Street, Bao'an District,
Shenzhen, P.R.China
Shenzhen, P.R.China
T
+86 0755 2747 1942
+86 0755 2747 1942
E
service@ginverter.com
service@ginverter.com
www.ginverter.com
www.ginverter.com
W
GR-UM-155 A-01
-
Installation
&
Operation Manual
MIN 2500TL-X
MIN 3000TL-X
MIN 3600TL-X
MIN 4200TL-X
MIN 4600TL-X
MIN 5000TL-X
MIN 6000TL-X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Growatt MIN 2500TL-X
Summary of Contents for Growatt MIN 2500TL-X
- Page 1 Installation & Operation Manual Growatt New Energy Download Manual Shenzhen Growatt New Energy Technology CO.,LTD No.28 Guangming Road, Shiyan Street, Bao’an District, No.28 Guangming Road, Shiyan Street, Bao’an District, Shenzhen, P.R.China Shenzhen, P.R.China +86 0755 2747 1942 +86 0755 2747 1942 service@ginverter.com...
-
Page 2: Table Of Contents
Index Notes on this manual 1.1 Validity 1.2 Target Group 1.3 Additional information 1.4 Symbols in this document 1.5 Glossary 2 Safety 2.1 Intended Use 2.2 Qualification of skilled person 2.3 Safety instruction 2.4 Assembly Warnings 2.5 Electrical Connection Warnings 2.6 Operation Warnings 3 Product Introduction 3.1 TL-X Overview... - Page 3 6 Electrical connection Trouble shooting 11.1 Error Messages displayed on 6.1 Safety OLED 6.2 Wiring AC Output 11.2 System fault 6.3 Connecting the second protective 11.3 Inverter warning conductor 11.4 Inverter fault 6.4 Connecting the PV Array(DC input) 6.5 Connecting signal cable 6.6 Grounding the inverter 6.7 Active power control with smart meter , CT or ripple control signal...
-
Page 4: Notes On This Manual
Alternating Current (AC) destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. Read the manual... -
Page 5: Safety
Principle of a PV plant with this MIN TL-X single-phase inverter precautions must be observed when installing and operating this inverter. Read and follow all instructions, cautions and warnings in this installation manual. If questions arise, please contact Growatt's technical services at +86 (0)755 2747 1900. - Page 6 Persons with limited physical or mental abilities may only work time. Ø with the Growatt inverter following proper instruction and under constant supervision. Children are forbidden to play with the Growatt inverter. Must keep the Growatt inverter away from children.
- Page 7 3 Product description 3.1 TL-X Overview Symbol on the inverter Symbol Description Explanation Touch button.We can switch the OLED Touch symbol display and set parameter by touching. Indicates inverter operation status: Red:Fault. Inverter status Green:Nomal. symbol Red leaf flash:Warning or DSP Programming. Green leaf flash:M3 Programming.
- Page 8 If there are a batch of inverters need to be stored, the maximum layers for original Ø 80V~550V MPP voltage range carton is four. After long term storage, local installer or service department of GROWATT should 230V Ø AC nominal voltage perform a comprehensive test before installation.
-
Page 9: Unpacking And Inspection
Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary. Growatt assumes no responsibility for compliance to EMC regulations for the complete system Ø All electrical installations shall be done in accordance with the local and national electrical codes. -
Page 10: Installation
5.2 Selecting the installation location Ø This is guidance for installer to choose a suitable installation location, to avoid potential damages to device and operators. Ø The installation location must be suitable for the inverter's weight and dimensions for a long period time. Select the installation location so that the status display can be easily viewed. - Page 11 5.3.2 Fixed the inverter on the wall Ø Please make sure the inverter is installed at the right place.The inverter can't install close to trunk. Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking.
- Page 12 6 Electrical connection The AC wiring step: Decisive Voltage Class (DVC) indicated for ports 1.Uninstall the parts of the AC connection plug from the accessory bag. Port Name Class RS485&USB 6.1 Safety Danger to life due to lethal voltages! High voltages which may cause electric shocks are present in the conductive parts of the inverter.
- Page 13 3.Push the threaded sleeve into the socket, Tighten up the cap on the terminal. 5.To remove the AC connector, press the bayonet out of the slot with a small screwdriver and pull it out,or unscrew the threaded sleeve,then pull it out. The Inverter Side Unlock the housing 4.Finally, Push or screw the threaded sleeve to connection terminal until both are locked...
-
Page 14: Validity
6.3 Connecting the second protective conductor In some installation countries, a second protective conductor is required to prevent a touch current in the event of a malfunction in the original protective conductor.For installation countries falling within the scope of validity of the IEC standard 62109, you must install the protective conductor on the AC terminal with a conductor cross-section of at least 10 mm²Cu.Or Install a second protective conductor on the earth terminal with the same cross-section as the original protective conductor on the AC terminal. - Page 15 Connection of PV terminal Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal. 6.5 Connecting signal cable Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the inverter. This series inverter has one 8 Pin signal connector(There are two connectors for AS/NZS4777 model ) .
- Page 16 Step 2 Insert the H type tool and pull it out from the socket. Active power control with a Radio Ripple Control Receiver(RRCR). 6.6 Grounding the inverter 6.8 Inverter demand response modes (DRMS) The inverter must be connected to the AC grounding conductor of the power distribution grid via the ground terminal (PE) .
- Page 17 6.8.2 Method of asserting demand response modes 6.8.3.2The inverter is preconfigured to the following RRCR power levels: Socket Asserted Active power Cos(φ) Function Pin 1 Pin 2 Pin 3 Pin 4 Mode by shorting pins Short circuit DRM 0 Operate the disconnection device with Pin5 DRM 5 Do not generate power...
- Page 18 Commissioning 7 The inverter has large electrical potential differences between its conductors. Arc flashes can occur through air when high-voltage current flows. Do not work on the product during operation. Do not disconnect the DC connectors under load. When the inverter error 200, please follow the steps: DANGER 6.9.3 Operation step Improper operation during the wiring process can cause fatal...
- Page 19 Growatt Set Country Set parameter PV inverter XXXX Press the touch key once a second to scroll through the different Country, showing on the screen will constantly change.For example, if you want to choose Newzealand, press General the control key until the OLED display shows “Newzealand” as below:...
- Page 20 7.3 Advanced setting General Password Set parameter 7.3.1 Reset Country Advanced Single touch to switch display or make the number +1. Double touch to confirm you setting. The password of advanced setting is 123. General Password Set parameter Advanced Reset factory Set OK 7.4 Communications Set Country...
- Page 21 70 V. •2011/65/EU RoHS Directive and its amendment (EU)2015/863 Shenzhen Growatt New Energy Technology Co. Ltd confirms that the Growatt inverters and accessories described in this document are in compliance with the above mentioned 8.2 Turn-off the Inverter EU directives.
- Page 22 An error message will be displayed on the OLED screen when a fault occurs. The faults properly. consist of system fault and inverter fault. 3. Check if the DC breaker gets You may be advised to contact Growatt in some situation, please provide the following wet. PV Isolation Low information.
- Page 23 2.If error message still exists,contact DC SPD function abnormal Error: 200 AFCI fault 2.Restart inverter. manufacturer. 3.If error message still exists,contact Growatt. Check the PV panel polarity. Restart inverter, if problem still exist, Error: 402 Output High DCI Restart the inverter. If the warning Contact Growatt.
- Page 24 12 Manufacturer Warranty Technical Data 14 14.1 Specification Please refer to the warranty card. Model 2500TL-X 3000TL-X 3600TL-X 4200TL-X Specifications Input data(DC) 13 Decommissioning Max. recommended PV 3500W 4200W 5040W 5880W power(for module STC) 13.1 Dismantling the Inverter Max. DC voltage 500V 550V 1.
- Page 25 Display Adjustable power factor 0.8leading… 0.8lagging OLED+LED Integrated THDi <3% RS485/USB Optional AC grid connection type Single phase WIFI/GPRS/4G/LAN/ RF AC overvoltage category Category III Warranty:5/10 years Yes/ Optional Efficiency Max. efficiency 98.2% 98.2% 98.2% 98.4% Euro-eta 97.1% 97.1% 97.2% 97.2% Model 4600TL-X...
- Page 26 Noise emission (typical) ≤ 25 dB(A) Max output fault current Altitude 4000m Max output overload protection <1W Internal consumption at night Backfeed current Topology transformerless P o w e r f a c t o r ( @ n o m i n a l Cooling Natural convection >0.99...
- Page 27 RF monitor with USB interface Shine LAN-X LAN monitor with USB interface Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age. GROWATT NEW ENERGY TECHNOLOGY Co.,LTD The warranty shall not cover transportation costs in connection with the return of defective modules .
