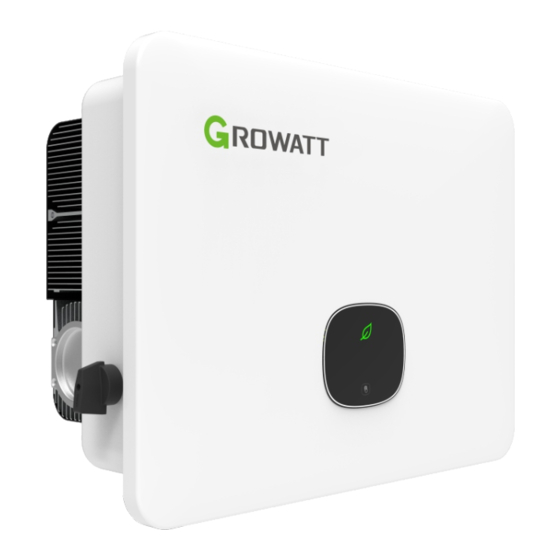

Summary of Contents for Growatt MID TL3-XH Series

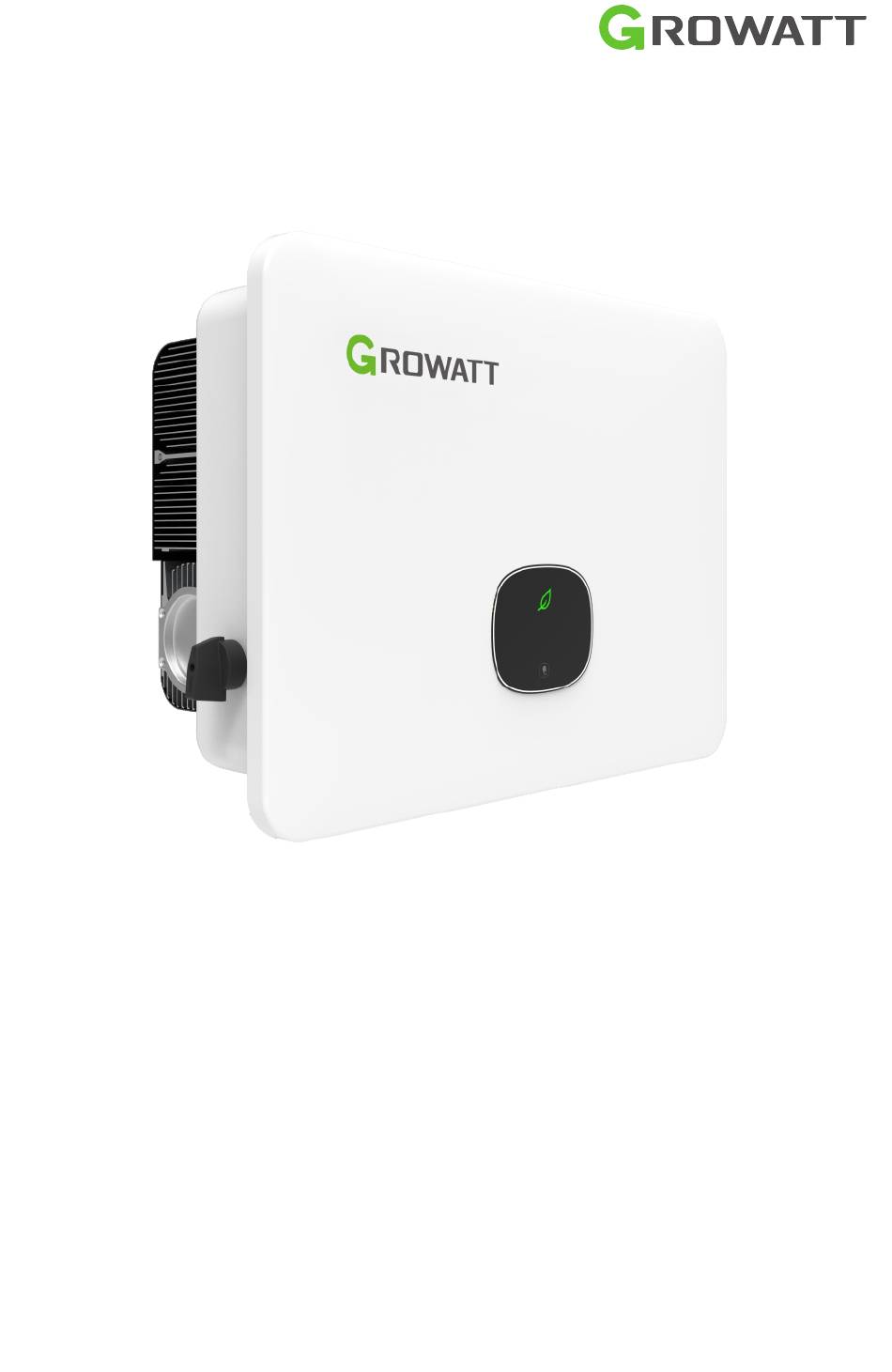

  • Page 1 Installation & Operation Manual...

  • Page 2: Table Of Contents

    Contents 1 Notes on this manual 1.1 Validity 1.2 Intended audience 1.3 Symbols in this document 2 Safety 2.1 Product description and features 2.2 Qualified personnel 2.3 Safety instruction 3 Product overview 3.1 Appearance 3.2 Dimensions 3.3 Storage environment 4 Inspection upon delivery 5.1 Basic installation requirements 5 Installation 5.2 Wall-mounted installation...
  • Page 3 7 Commissioning 8 Working mode 8.1 Operating mode 8.2 Failure mode 8.3 Shutdown mode 9 OLED display and the touch 9.1 Starting the inverter button 9.2 General settings 9.3 Advanced settings 10 Communication and 10.1 COM port monitoring 10.2 USB-A port 11 Maintenance and cleaning 11.1 Checking the heat dissipation 11.2 Cleaning the inverter...
  • Page 4 13 Troubleshooting 13.1 Error message 13.2 System warning 13.3 System error 14 Warranty 15 Decommissioning 15.1 Removing the inverter 15.2 Packing the inverter 15.3 Storing the inverter 15.4 Disposing of the inverter 16 EU declaration of conformity 17 Specification 18 EU Certificate of Compliance 19 Contact us...

  • Page 5: Notes On This Manual

    This manual is intended to provide product information and installation instructions regarding MID TL3-XH inverters manufactured by Shenzhen Growatt New Energy Co.,Ltd.(hereinafter referred to as Growatt). Please read this manual carefully before using the product. Please note that the content of this manual is subject to change without.
  • Page 6 CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. CAUTION NOTICE is used to address practices not related to personal injury. NOTICE Information that you must read and know to ensure optimal operation of the system. Information 1.3.2 Label description Symbol...
  • Page 7 1.3.3 Glossary Abbreviation for "Alternating Current” Abbreviation for "Direct Current” Energy Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours). The energy is power multiplied by time. For example, if the inverter operates at a constant power of 4600 W for 30 minutes and then at a constant power of 2300 W for 30 minutes, it would have generated a total energy output of 3450 Wh in that hour and fed it into the power distribution grid.

  • Page 8: Safety 2

    2.1 Product description and features 2.1.1 Product description Growatt series hybrid inverters are designed to convert the DC power generated by the PV panels into three-phase AC power and export it to the grid or store the DC power in the batteries.
  • Page 9 2.3 Safety instructions 1.Please read this manual carefully before installation. Growatt shall not be liable for any damage caused by failure to follow the instructions and safety precautions specified in this manual.
  • Page 10 Persons with limited physical or mental abilities may only work Ø with the Growatt inverter following proper instruction and under constant supervision. Ensure that the inverter is inaccessible to children. All electrical connections, such as connecting terminals, the fuse, Ø...
  • Page 11 2.3.3 Operation Warnings Ensure all connectors are sealed and secured during operation. Ø Although designed to meet all safety requirements, some parts Ø and surfaces of the inverter are still hot during operation. To reduce the risk of injury, do not touch the heat sink at the back of the PV-inverter or nearby surfaces while the inverter is in operation.

  • Page 12: Product Overview 3

    Product overview 3 3.1 Appearance G H I J B C D Fig 3.1 Product description: Component Component Component Front panel DC switch Vent valve Touch button PV terminal COM port OLED screen Battery terminal AC terminal LED indicator USB port Symbol description: Symbol Description...

  • Page 13: Storage Environment

    3.2 Dimensions Fig 3.2 Size and weight: Model Height (H) Width (W) Depth (D) Weight MID 11-20KTL3-XH 433mm 579mm 217.5mm 29.5kg MID 25-30KTL3-XH 433mm 579mm 217.5mm 30kg 3.3 Storage Environment To store the inverter in a warehouse, choose a suitable location. Install the inverter in its original packing materials.
  • Page 14 Inspection upon delivery 4 Before unpacking the inverter, check the outer packing materials for any externally visible damage. After unpacking the inverter, check the scope of delivery for completeness. If the scope of delivery is incomplete or damaged, contact your dealer. Fig 4.1 Description Qty.

  • Page 15: Basic Installation Requirements

    5 Installation 5.1 Basic installation requirements The wall on which the inverter is mounted must be sturdy and can withstand the Ø weight of the inverter for a long time (refer to the specifications in Section 17 for the weight of the inverter); The installation location should be suitable for the dimensions of the inverter;...
  • Page 16 Fig 5.2 Clearance requirements for a single inverter Fig 5.3 Clearance requirements for multiple inverters Do not install the inverter near the television antenna or any other antennas and Ø antenna cables; Do not install the inverter in the living area; Ø...
  • Page 17 Fig 5.4 Installation environment It is not allowed to install or operate the inverter in a sealed box. Ø Fig 5.5 Closed box It is recommended to install an awning over the inverter to extend its service life. The Ø distance requirements between the awning and the inverter are as follows: Fig 5.6 Awning...

  • Page 18: Wall-Mounted Installation

    5.2 Wall-mounted installation 5.2.1 Installing the wall-mounting bracket For safety reason, avoid water pipes and power cables when drilling holes. Danger Fig 5.7 Dimensions of the wall-mounting bracket Fix the mounting bracket as the figure shows. The screws should not be fully flush when inserted.
  • Page 19 Fig 5.9 Installing the inverter...

  • Page 20: Precautions

    Electrical connection 6 6.1 Precautions High voltages in the conductive parts of a running inverter may cause electric shocks. Therefore, ensure that the inverter is disconnected from voltage sources and is not powered on before connecting cables. Danger Static electricity may damage the electronic components of the inverter.
  • Page 21 Inverter model Switch specification MID 11KTL3-XH 25A(230/400V) MID 12KTL3-XH 25A(230/400V) MID 13KTL3-XH 30A(230/400V) MID 15KTL3-XH 30A(230/400V) MID 17KTL3-XH 35A(230/400V) MID 20KTL3-XH 40A(230/400V) MID 25KTL3-XH 40A(230/400V) MID 30KTL3-XH 50A(230/400V) Residual current monitoring device (RCMU) As the inverter is equipped with a highly accurate residual current detection device, it is not recommended to install a leakage protection switch.

  • Page 22: Dc Side Wiring

    2. Connect the AC cable to the corresponding AC terminal. Fig 6.3 Connecting the AC output power cable 3.Secure the protective cover onto the inverter and tighten the screw on the protective cover. Fig 6.4 Installing the waterproof cover Recommended cable specifications: Model Cross-section area (Cu) Maximum cable length...
  • Page 23 Please ensure that the following conditions are met, otherwise it may cause a fire hazard or damage the inverter. In this case, Growatt shall not be liable for the consequence. The maximum open circuit voltage of each string of photovoltaic Ø...

  • Page 24: Connecting The Bidirectional Dc/Dc Box

    Before connecting to the PV panel, ensure the correct polarity. Connect Ø the positive and negative terminals of a PV module to the positive and negative DC input terminals of the inverter respectively. The maximum DC input current and voltage of the inverter shall not Ø...

  • Page 25: Connecting The Signal Cable

    6.4.2 Connecting the Bidirectional DC/DC Box Danger to life due to lethal voltages! Before connecting the Bidirectional DC/DC Box, ensure that the Box is disconnected from any power supply. NEVER connect or disconnect the BAT connectors under load. Ensure the correct polarity when connecting the Bidirectional DC/DC DANGER Box to the inverter.

  • Page 26: Grounding The Inverter

    2.Connect the client-side to the port on the inverter and ensure that they are securely connected. Click! Click! Fig 6.11 Removing the signal connector 1.Press down the fastener and pull it out from the inverter. The Inverer Side Fig 6.12 6.6 Grounding the inverter The inverter must be connected to the AC grounding conductor of the power distribution grid through the ground terminal (PE) .

  • Page 27: Active Power Control With A Smart Meter Or A Ripple Control Receiver

    WARNING In this case, Growatt shall not be liable for the consequence and the damage is not covered under any warranty. 6.7 Active power control with a smart meter or a ripple control...
  • Page 28 Base Current (Ib) Power consumption ≤2W Frequency 50/ 60Hz(±10%) AC voltage withstand 4KV for 1 minute Impulse voltage withstand 6KV-1.2uS waveform Overcurrent withstand 20Imax for 0.5s Pulse output 1 1000imp/kWh (default) Pulse output 2 400imp/kWh Display Max. Reading LCD with white backlit 999999kWh Environment Operating temperature -25℃to +55℃...

  • Page 29: Demand Response Modes (Drms)

    6.8 Demand response modes (DRMs) Inverters of this series feature the demand response modes and use a 16-pin socket as the DRMs connector. DRMs application description Applicable to AS/NZS4777.2:2015 or Commission Regulation Ø (EU) 2016/631. Information DRM0, DRM5, DRM6, DRM7, DRM8 are available. Ø...
  • Page 30 6.8.3 Using the Power Control Interface for EU models Fig 6.16 Inverter – RRCR Connection 6.8.3.1 The following table describes the connector pin assignment and function: DRM Socket Pin NO. Description Connect to RRCR Relay contact 1 input K1 – Relay 1 output Relay contact 2 input K2 –...

  • Page 31: Gfci (Standard)

    6.9 GFCI (Standard) 6.9.1 Ground fault circuit interrupter (GFCI) The inverter is equipped with a residual-current device. If residual current jumps of > 300 mA occur and last for over 300ms, the inverter will report Error 201 and display "Residual I high".

  • Page 32: Backup Function (Optional)

    1. When the grid goes down, the max. output power of a fully charged battery reaches 30kW. 2. Only professional personnel are allowed to configure the backup mode. To enable the backup mode, you need to purchase a backup box from Growatt.

  • Page 33: Commissioning

    "No AC connection" and the LED indicator will turn red. If other error message is displayed, please refer to Section 13. If you encounter any technical problems, please contact Growatt support. 2. Turn on the circuit breaker or the switch between the inverter and the grid, the inverter will start a countdown to perform a self-check.

  • Page 34: Oled Display And The Touch Button 9

    For instance, to select Germany, tap the touch button until "VDE0126" is displayed; long press the button for 5s and the screen will indicate that the configuration is completed. Press Growatt Country/Area PV Inverter VDE0126...
  • Page 35 9.2 General settings 9.2.1 Setting the display language Multiple language options are available for this series inverters. Single tap to view different options; double tap to confirm your setting. Set the language as shown below: Double Double Language Language English English Single tap Double...
  • Page 36 9.2.4 Setting the time Single tap to increase the number by one; double tap to confirm your setting. Set the time as shown below: Double tap Double tap Double tap Double tap Time Setting Time Setting Time Setting Time Setting 20:05:00 NN:05:00 NN:NN:00...
  • Page 37 9.3.1 Setting the export limitation parameter The -XH series inverters support the export limitation function when working with an external power meter or CT. Users can configure the parameter on the OLED screen. Single tap to view the options available or increase the number by one; double tap to confirm your setting.
  • Page 38 Single tap to view the options available or increase the number by one; double tap to confirm your setting. Double tap Double tap General Restore to factory Advanced settings Single tap Single tap Double tap Double tap Multi-tap Double tap Password Country/Area VDE0126...
  • Page 39 9.3.4 Setting charge from grid function Working with compatible batteries, the -XH series inverters can draw power from the grid to charge the battery. Users can enable the charge from grid function (set to disabled by default) on the OLED screen. Single tap to view the options; double tap to confirm your setting.

  • Page 40: Communication And Monitoring 10

    Communication and monitoring 10 10.1 COM port This series of inverters provide four RS485 ports. You can monitor one or more inverters via RS485. The other RS485 port is used to connect to a smart meter (for export limitation and self-consumption monitoring). Description Function Dry contact: the power of any...

  • Page 41: Maintenance And Cleaning

    11 Maintenance and cleaning 11.1 Checking the heat dissipation For reduction in power output due to high temperature, you are advised to clean the heat sink to improve heat dissipation. 11.2 Checking the inverter Before cleaning a dirty inverter, turn off the AC breaker and the DC switch, and wait until the inverter completely shuts down.

  • Page 42: Troubleshooting 13

    An error message will be displayed on the OLED screen and the LED indicator will turn red when a fault occurs, indicating a system fault or an inverter fault has occurred. In some cases, you may need to contact Growatt for technical assistance. To provide you with the necessary support, please have the following information ready: ●Serial number...
  • Page 43 2.If the fault code persists after the voltage threshold restores to the acceptable magnitude, please contact Growatt support. 1.Check the polarity of the PV input terminals. Warning 210 PV terminal reversed 2.If the error message persists, please contact Growatt support.
  • Page 44 CT is open or properly. Warning 304 incorrectly wired 2.If the error message persists, please contact Growatt support. 1.Check if the L line and N line of the CT are CT line reversed or reversely connected. Warning 305 Ground fault 2.If the error message persists, please contact...
  • Page 45 Description Troubleshooting message 1.Restart the inverter. Warning 404 EEPROM abnormal 2.If the error message persists, please contact Growatt support. 1.Check the firmware version. DSP and COM firmware Warning 405 2.If the error message persists, please contact version mismatch Growatt support.
  • Page 46 1.Check if the voltage of the battery is within the specified range. Warning 503 Battery Voltage Low 2.Check the connection of the battery. 3.If the error message persists, please contact Growatt support. 1.Check if the positive and negative terminals of Battery terminals the battery are reversely connected. Warning 504 reversed 2.If the error message persists, please contact...
  • Page 47 1.Check whether the load exceeds the inverter Off-grid output specification. Warning 604 overcurrent 2.Restart the inverter. If the error message persists, please contact Growatt support. 1.Check whether the load exceeds the inverter The off-grid Bus specification. Warning 605 voltage is too low 2.Restart the inverter.
  • Page 48 Error 202 voltage is exceeds 2.If the fault code still exists after the normal voltage the upper threshold is restored, contact Growatt support. 1.After shutdown, check whether the panel frame is PV insulation reliably grounded. Error 203 resistance low 2.If the error message persists, please contact...
  • Page 49 Communication 1.Re-pair the device. Error 308 fault;pairing time 2.If the error message persists, please contact too long Growatt support. 1.Check grid frequency and restart the inverter. Error 309 ROCOF Fault 2.If the error message persists, please contact Growatt support. 1.Check whether the N line at the inverter side with...
  • Page 50 Communication board and control 1.Restart the inverter. Error 410 panel sampling 2.If the error message persists, please contact battery voltage is Growatt support. inconsistent 1.After shutdown, check the wiring of the Internal communication board Error 411 communication 2. If the error message still exists, contact...
  • Page 51 AC current Error 427 2.If the error message persists, please contact sampling abnormal Growatt support. BOOST converter Error 428 Contact Growatt support. short-circuited 1.Restart the inverter Error 429 BUS soft-start failed 2.If the error message persists, please contact Growatt support.
  • Page 52 1.Check whether the battery voltage exceeds the permissible range; if so, replace the battery; if not, Battery voltage Error 503 restart the inverter. high 2.If the error message persists, please contact Growatt support. Battery temperature is out 1.Check battery temperature. Error 504 of the specified 2.If the error message persists, please contact Growatt...
  • Page 53 Error 610 phase voltage is abnormal. abnormal 2. Restart the system,if the error message persists, please contact Growatt support. 1.After shutdown, check the connection of the Abnormal communication cable. Error 700 communication 2.If the error message persists, please contact...

  • Page 54: Warranty 14

    Warranty 14 Please refer to the warranty card. Decommissioning 15 15.1 Removing the inverter 1. Disconnect the inverter as described in Section 8. 2. Remove all connected cables from the inverter. Danger of burn injuries due to hot enclosure parts! Wait 20 minutes before removing the inverter until the housing has cooled down.

  • Page 55: Eu Declaration Of Conformity

    •2014/30/EU Electromagnetic Compatibility Directive (EMC) •2011/65/EU RoHS Directive and its amendment (EU)2015/863 Shenzhen Growatt New Energy Co. Ltd confirms that the Growatt inverters and accessories described in this document are in compliance with the above-mentioned EU directives. The entire EU Declaration of Conformity can be found at www.ginverter.com.

  • Page 56: Specification 17

    Specification 17 Model Specifications 11KTL3-XH 12KTL3-XH 13KTL3-XH 15KTL3-XH Input data (DC) Recommended Max. PV 22000W 24000W 26000W 30000W power(for module STC) Max. DC voltage 1100V Start voltage 200V Nominal voltage 600V MPPT voltage range 160-1000V No. of MPP trackers No. of PV strings per MPP tracker Max.
  • Page 57 Model Specifications 11KTL3-XH 12KTL3-XH 13KTL3-XH 15KTL3-XH THDi <3% AC grid connection type 3W+N+PE Efficiency Max. efficiency 98.0% Euro-eta 97.50% Output data (Backup) Nominal output power 11000W 12000W 13000W 15000W Max. apparent power 11000VA 12000VA 13000VA 15000VA Nominal AC output 230V/400V voltage Nominal AC output 50Hz...
  • Page 58 Model 11KTL3-XH 12KTL3-XH 15KTL3-XH Specifications 13KTL3-XH General data Dimensions (W / H / D) in 579*433*217.5mm Weight 29.5kg Operating temperature -25°C ... +60°C range (>45°C Derating) Noise emission (typical) ≤36dB(A) Altitude 4000m Internal consumption at <5.5W night Topology Transformerless Cooling Smart air cooling IP rating IP66...
  • Page 59 Model 17KTL3-XH 20KTL3-XH 25KTL3-XH 30KTL3-XH Specifications Input data (DC) Recommended Max. PV 34000W 40000W 50000W 60000W power (for module STC) Max. DC voltage 1100V Start voltage 200V Nominal voltage 600V MPPT voltage range 160-1000V No. of MPP trackers No. of PV strings per 2/2/2 2/2/2 MPP tracker...
  • Page 60 Model Specifications 17KTL3-XH 20KTL3-XH 25KTL3-XH 30KTL3-XH THDi <3% AC grid connection type 3W+N+PE Efficiency Max. efficiency 98.00% Euro-eta 97.50% Output data (Backup) Nominal output power 17000W 20000W 25000W 30000W Max. apparent power 18700VA 22000VA 27500VA 30000VA Nominal AC output 230V/400V voltage Nominal AC output 50Hz...
  • Page 61 Model 17KTL3-XH 20KTL3-XH 25KTL3-XH Specifications 30KTL3-XH General data Dimensions (W / H / D) in 579*433*217.5mm Weight 30kg Operating temperature -25°C ... +60°C range (>45°C Derating) Noise emission (typical) ≤36dB(A) ≤45dB(A) Altitude 4000m Internal consumption at <5.5W night Topology Transformerless Cooling Smart air cooling IP rating...

  • Page 62: Eu Certificate Of Compliance

    IEC 62116/61727, CEI 0-16,CEI 0-21, UNE217001, UNE217002, MID 25-30KTL3-XH NTS TypeA, G99, NC RfG Contact us 19 If you have technical problems concerning our products, please contatc the Growatt Service Line. To provide you with the necessary support, please have the following information ready: Inverter type Ø...
  • Page 63 Growatt New Energy Download Manual Shenzhen Growatt New Energy Co., Ltd 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Ave, Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-320-A-00...
