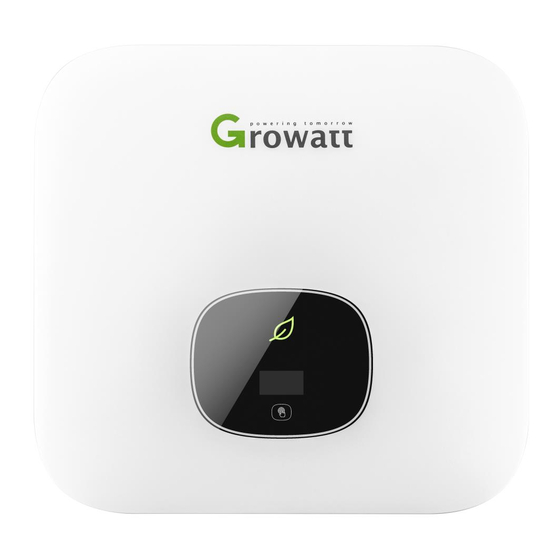

Growatt MIN 2500TL-XH Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Growatt Manuals
  4. Inverter
  5. MIN 2500TL-XH
  6. Installation & operation manual

Growatt MIN 2500TL-XH Installation & Operation Manual

Hide thumbs Also See for MIN 2500TL-XH:
Table of Contents

Advertisement

Quick Links

Enlarged version
Growatt New Energy
Download
Manual
Shenzhen Growatt New Energy Technology CO.,LTD
No.28 Guangming Road, Shiyan Street, Bao'an District,
No.28 Guangming Road, Shiyan Street, Bao'an District,
Shenzhen, P.R.China
Shenzhen, P.R.China
T
+86 0755 2747 1942
+86 0755 2747 1942
E
service@ginverter.com
service@ginverter.com
www.ginverter.com
www.ginverter.com
W
GR-UM-171 A-00
GR-UM-171 A-00
-
-
Installation
&
Operation Manual
MIN 2500TL-XH/XE
MIN 3000TL-XH/XE
MIN 3600TL-XH
/XE
MIN 4200TL-XH
/XE
MIN 4600TL-XH
/XE
MIN 5000TL-XH/XE
/XE
MIN 6000TL-XH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIN 2500TL-XH and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt MIN 2500TL-XH

Summary of Contents for Growatt MIN 2500TL-XH

  • Page 1 Installation & Operation Manual Growatt New Energy Download Manual Shenzhen Growatt New Energy Technology CO.,LTD No.28 Guangming Road, Shiyan Street, Bao’an District, No.28 Guangming Road, Shiyan Street, Bao’an District, Shenzhen, P.R.China Shenzhen, P.R.China +86 0755 2747 1942 +86 0755 2747 1942 service@ginverter.com...
  • Page 2 Index Notes on this manual 1.1 Validity 1.2 Target Group 1.3 Additional information 1.4 Symbols in this document 1.5 Glossary 2 Safety 2.1 Intended Use 2.2 Qualification of skilled person 2.3 Safety instruction 2.4 Assembly Warnings 2.5 Electrical Connection Warnings 2.6 Operation Warnings 3 Product Introduction 3.1 TL-XH Overview...
  • Page 3 6 Electrical connection Trouble shooting 6.1 Safety 11.1 Error Messages displayed on OLED 6.2 Wiring AC Output 11.2 System fault 6.3 Connecting the second protective 11.3 Inverter warning conductor 11.4 Inverter fault 6.4 Connecting the PV Array 6.5 Connecting the Bidirectional DC/DC Box 6.6 Connecting signal cable 6.7 Grounding the inverter...

  • Page 4: Notes On This Manual

    Alternating Current (AC) or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. The inverter has no transformer.

  • Page 5: Intended Use

    2.2 Qualification of skilled person compliant alternating current and performs single-phase feed-in into the electricity grid.MIN 2500TL-XH/XE,MIN 3000TL-XH/XE,MIN 3600TL-XH/XE,MIN 4200TL-XH/XE,MIN This inverter system operates only when properly connected to the AC distribution 4600TL-XH/XE,MIN 5000TL-XH/XE ,MIN 6000TL-XH/XE inverters are built according to all network.

  • Page 6: Safety Instruction

    Growatt inverter. Must keep the Growatt inverter away from this inverter. Read and follow all instructions, cautions and warnings in this installation children. manual. If questions arise, please contact Growatt's technical services at +86 (0)755 2747 1900. Make all electrical connections (e.g. conductor termination, Ø...

  • Page 7: Product Description

    3 Product description 3.1 TL-XH Overview 3.2 Type label The type labels provide a unique identification of the inverter (The type of product, Device-specific characteristics, Certificates and approvals). The type labels are on the left-hand side of the enclosure. Position Description Position Description...

  • Page 8: Size And Weight

    MPP voltage range 80V~550V carton is four. *DC nominal input voltage 380V After long term storage, local installer or service department of GROWATT should Ø perform a comprehensive test before installation. *DC input voltage range 350V~480V DC Max input/output current 3.5 The advantage of the unit...

  • Page 9: Unpacking And Inspection

    Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary. Ø Growatt assumes no responsibility for compliance to EMC regulations for the complete system. Ø All electrical installations shall be done in accordance with the local and national electrical codes.

  • Page 10: Selecting The Installation Location

    5.2 Selecting the installation location Ø This is guidance for installer to choose a suitable installation location, to avoid potential damages to device and operators. Ø The installation location must be suitable for the inverter's weight and dimensions for a long period time. Select the installation location so that the status display can be easily viewed.

  • Page 11: Fixed The Inverter On The Wall

    5.3.2 Fixed the inverter on the wall Ø Please make sure the inverter is installed at the right place.The inverter can't install close to trunk. Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking.

  • Page 12: Electrical Connection

    6 Electrical connection The AC wiring step: Decisive Voltage Class (DVC) indicated for ports 1.Uninstall the parts of the AC connection plug from the accessory bag. Port Name Class AC Output DC Input COM&SYS COM Port RS485&USB 6.1 Safety Danger to life due to lethal voltages! High voltages which may cause electric shocks are present in the conductive parts of the inverter.
  • Page 13 3.Push the threaded sleeve into the socket, Tighten up the cap on the terminal. 5.To remove the AC connector, press the bayonet out of the slot with a small screwdriver and pull it out,or unscrew the threaded sleeve,then pull it out. 4.Finally, Push or screw the threaded sleeve to connection terminal until both are locked tightly on the inverter.

  • Page 14: Connecting The Second Protective Conductor

    6.3 Connecting the second protective conductor If the inverter is not equipped with a DC switch but this is mandatory in In some installation countries, a second protective conductor is required to prevent a the country of installation, install an external DC switch. touch current in the event of a malfunction in the original protective conductor.For The following limit values at the DC input of the inverter must not be installation countries falling within the scope of validity of the IEC standard 62109, you...
  • Page 15 6.5.2 Connecting the Bidirectional DC/DC Box Danger to life due to lethal voltages! Before connecting the Bidirectional DC/DC Box, ensure that the Box do not connect any power supply. NEVER connect or disconnect the BAT connectors under load. Forbidden to reverse the positive and negative poles of the DANGER Bidirectional DC/DC Box and the inverter.

  • Page 16: Connecting Signal Cable

    6.6 Connecting signal cable Uninstall signal connector Step 1 Press the fasteners and pull it out from the inverter. This series inverter has two 8 Pin signal connectors,one is COM PORT connector,another is SYS COM PORT connector. Signal Cable Ports as follows: Procedure Step 2 Insert the H type tool and pull it out from the socket.
  • Page 17 6.9.1.1 8Pin socket pin assignment Assignment for inverters capable of both charging and discharging +12V DRM 1/5 DRM 2/6 DRM 3/7 Active power control with a Radio Ripple Control Receiver(RRCR). DRM 4/8 RefGen Com/DRM0 6.9.1.2 Method of asserting demand response modes Socket Asserted by Requirement Mode...
  • Page 18 6.10 Electric arc hazards 6.10.1 Arc-Fault Circuit Interrupter(AFCI) In accordance with the National Electrical Code R, Article 690.11, the inverter has asystem for the recognition of electric arc detection and interruption. An electric arc with a power of 300 W or greater must be interrupted by the AFCI within the time specified by UL 1699B.

  • Page 19: Start The Inverter

    If the AFCI self-test is failed, the following message appears on the display: “Error 425”, please restart the system, repeat step1 to step3.If the AFCI self-test continues to fail,cut Requirements： off all power supply connection of the inverter,and contact Growatt to solve this problem. ü...

  • Page 20: General Setting

    “VDE0126” ,Press the touch key twice in succession, the OLED shows Country/Area setting is complete. Double touch Double touch Double touch Double touch Address Address Address Address Set OK Growatt Country/Area Double touch Set OK PV Inverter VDE0126 Single Single Single Double touch Double touch...

  • Page 21: Advanced Setting

    7.2.4 Set inverter time OLED, Single touch to switch display or make the number +1.Double touch to confirm the setting, as described below: Single touch make the number up.Double touch to confirm the setting. Set inverter time as described below: Double touch ExportLimit Double touch...
  • Page 22 7.3.4 Backup mode setting Double touch Double touch Double touch Double touch Loadprio 00-01 Loadprio 00-01 Loadprio 00-01 Loadprio 00-01 Time Period Time1: Disable Time1: Disable Time1: Disable Time1: Disable When the –XH series inverter is used with the BDC box and the Backup Interface box,the Multiple single Multiple single Multiple single...

  • Page 23: Start-Up And Shut Down The Inverter

    Start-Up and shut down the inverter 8 7.4 Communication interfaces 8.1 Start-Up the inverter 7.4.1 SYS COM Port 1. Connect the AC breaker of the inverter. 2.Turn on the dc switch, and the inverter will start automatically when the input voltage is higher than 70 V.

  • Page 24: Maintenance And Cleaning

    Maybe you need to clean the heat sink. •2011/65/EU RoHS Directive and its amendment (EU)2015/863 Shenzhen Growatt New Energy Technology Co. Ltd confirms that the Growatt inverters 9.2 Cleaning the Inverter and accessories described in this document are in compliance with the above mentioned EU directives.

  • Page 25: Troubleshooting

    3. Check if the DC breaker gets wet. You may be advised to contact Growatt in some situation, please provide the following PV Isolation Low 4. Check the impedance of PV (+) &...

  • Page 26: Inverter Warning

    Output High DCI 2.Restart the inverter. If the warning Contact Growatt. Warning 203 PV1 or PV2 Circuit short still exist, please contact Growatt customer service to replace the 1.Restart inverter, if problem still exist, Error: 404 Bus sample fault POWER board.

  • Page 27: Manufacturer Warranty

    12 Manufacturer Warranty Technical Data 14 14.1 Specification Please refer to the warranty card. Model 2500 3000 3600 4200 TL-XH/XE TL-XH/XE TL-XH/XE TL-XH/XE Specifications Input data(PV) 13 Decommissioning Max. recommended PV 3500W 4200W 5040W 5880W power(for module STC) 13.1 Dismantling the Inverter Max.
  • Page 28 DC connection VP-D4/MC4(Optional) AC grid connection type Single phase(L/N/PE) AC connector AC connection AC overvoltage category Category III Interfaces *Output data(Backup Power) Display OLED+LED Nominal output power 2500W 3000W 3000W 3000W Integrated RS485/USB Max. output apparent power 2500VA 3000VA 3000VA 3000VA Optional WIFI/GPRS/4G/LAN/ RF...
  • Page 29 M a x . o u t p u t o v e r l o a d Protection degree IP65 protection Pollution degree outside Backfeed current the enclosure >0.99 Power factor(@nominal power) Pollution degree inside the enclosure Adjustable power factor 0.8leading…...

  • Page 30: Compliance Certificates

    485 Meter External CT for inverter GROWATT NEW ENERGY TECHNOLOGY Co.,LTD Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a No.28 Guangming Road, Longteng Community, Shiyan, Ø replacement device of equivalent value according to model and age.
