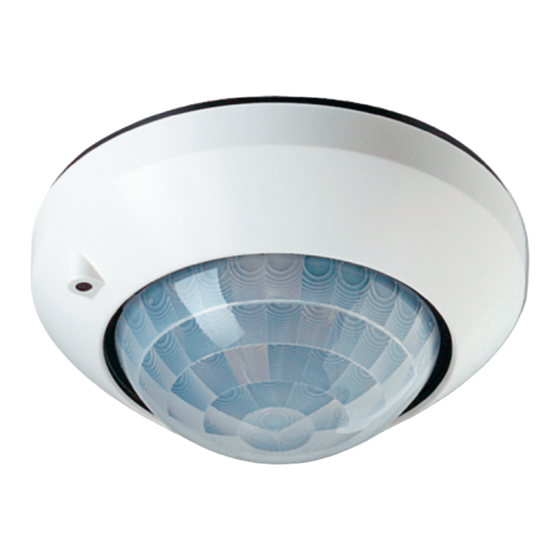

Presence detector

Advertisement

Quick Links

Presence detector
Presence detector standard
Art. No. : 3361WW-01
Presence detector standard
Art. No. : 3361AL-01
Presende detector Universal
Art. No. : 3361-1WW-01
Presende detector Universal
Art. No. : 3361-1AL-01
Operating instructions

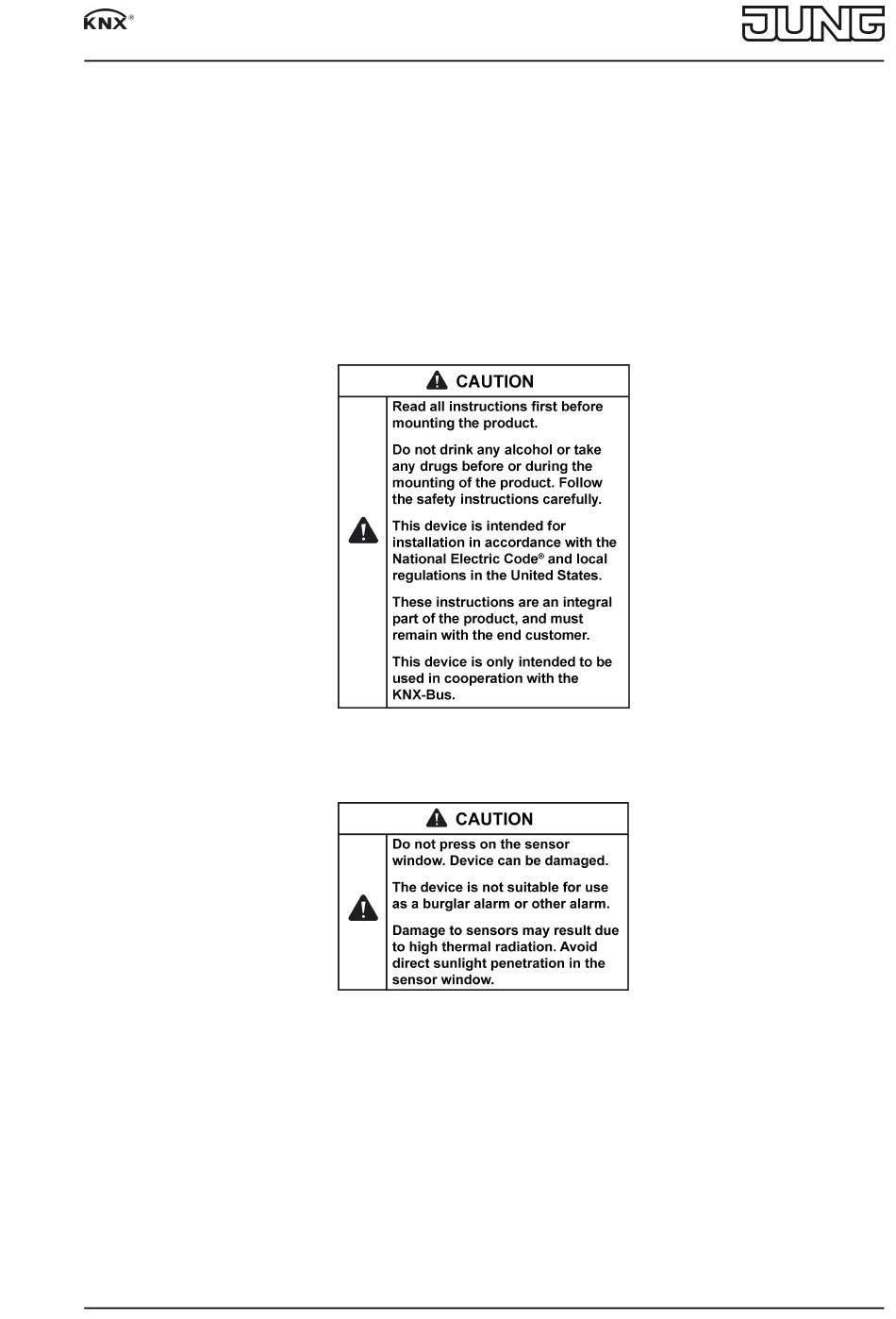

1 Safety instructions
82585625
J0082585625
1/12
04.12.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3361WW-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung 3361WW-01

  • Page 1 Presence detector Presence detector standard Art. No. : 3361WW-01 Presence detector standard Art. No. : 3361AL-01 Presende detector Universal Art. No. : 3361-1WW-01 Presende detector Universal Art. No. : 3361-1AL-01 Operating instructions 1 Safety instructions 82585625 1/12 04.12.2017 J0082585625...
  • Page 2: Device Components

    Presence detector 2 Device components Figure 1: Device components (1) Supporting frame (2) Integrated bus coupling unit (3) Decor ring (4) Brightness sensor (5) Sensor window with Programming LED, red Status LED, blue (6) Adjuster Sens. for manual sensitivity adjustment (7) Programming button Prog.
  • Page 3: Operating Control

    Presence detector carried out with the aid of KNX­certified software. The latest versions of product database and the technical descriptions are available on our website. Intended use ­ Requirement­oriented control of lighting, room thermostats and other electrical consumers in interior rooms ­...
  • Page 4 Presence detector 10 SEK, 30 SEK, 2 MIN, 5 MIN, 30 MIN Function block 1: Extend minimum run­on­time (10 seconds) by the selected value START, STOP Function block 1: Extend minimum run­on­time (10 seconds) individually Set-up buttons, IR remote control Button Function Ù...
  • Page 5: Information For Electrically Skilled Persons

    Presence detector 5 Information for electrically skilled persons 5.1 Mounting and electrical connection Detection field and range Figure 2: Tangential and radial direction of motion 82585625 5/12 04.12.2017 J0082585625...
  • Page 6 Presence detector The device has a detection area of 360°. The diameter of the detection area depends on the installation height and the direction of motions of persons in the detection area (figure 3). The detection area becomes larger the greater the installation height, while the detection densi­ ty and sensitivity are reduced at the same time.
  • Page 7 Presence detector Limiting the detection field Figure 4: Push­on cover The push­on cover can be used to limit the detection field, e.g. in order to mask out interference sources. Cover size Range on the ground (mounting height 9.80 ft) Complete push­on cover Ø...
  • Page 8 Presence detector Figure 5: Detection field areas A, B and C, installation height 8.20 ft 82585625 8/12 04.12.2017 J0082585625...
  • Page 9 Presence detector Figure 6: Arrangement of the areas A, B and C When mounting the device, align it so that the alignment of areas A, B and C match the project design. i Already pay attention to correct alignment when mounting the appliance box and support­ ing frame.
  • Page 10 Presence detector When mounting the supporting frame (1), make sure that the areas A, B and C are aligned correctly. Run the bus cable through the supporting frame. i Use only cables which are approved for KNX. Use connecting terminal to connect bus line to the bus connection on the rear side of the device.
  • Page 11: Technical Data

    Presence detector 6 Appendix Disposal Please consider your local regulation for disposal and electronic waste recycling. 6.1 Technical data KNX medium Commissioning mode S-mode Rated voltage KNX DC 21 ... 30 V SELV Current consumption KNX max. 12.5 mA Connection, Bus device connection terminal Ambient temperature 23 ...
  • Page 12: Warranty

    350 Fifth Avenue, Suite 5220 New York, NY 10118 Phone: +1 800.311.6135 Email: sales@jungcontrols.com www.jungcontrols.com For the product warranty, please refer to the attached document. All rights reserved © ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY 82585625 12/12 04.12.2017 J0082585625...

This manual is also suitable for:

3361al-013361-1ww-013361-1al-01
