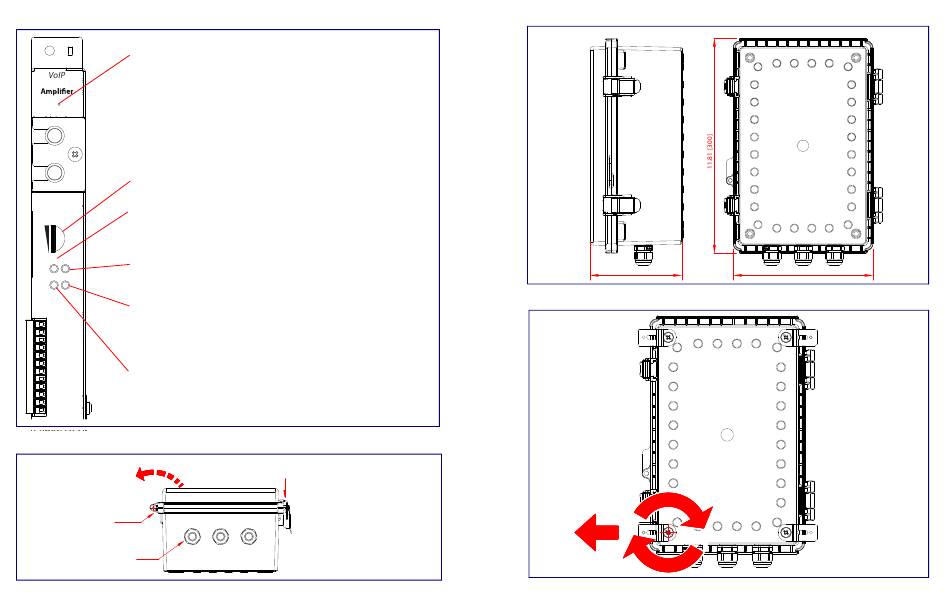

CyberData 011406 Installation Quick Reference page 2

Features
RTFM Switch
To broadcast the device's current IP address, press and hold the RTFM switch for a couple
of seconds and then release it.
Loudspeaker
To restore the factory defaults, complete the following steps:
RTFM
1. Press and hold the RTFM switch until you hear the device announce the words,
"restoring defaults" and "rebooting".
2. Release the RTFM switch. The device will be restored to the factory default settings.
Speaker Volume
Speed (SPD) LED (AMBER)
Volume
The Speed (SPD) LED illuminates
or is off for a 10MB link when the network link to the device is established.
SPD Link/Act.
Link/Activity (Link/Act.) LED (GREEN)
The GREEN Link/Activity (Link/Act.) LED blinks to indicate network traffic.
PWR Status
Status LED (GREEN)
The GREEN Status LED illuminates after supplying power to the device.
Power (PWR) LED (GREEN/BLUE)
The Power (PWR) LED is
and BLUE during high power mode (
*See the Operations Guide for more information about the features in this section.
Enclosure Features
COVER OPEN LEFT
HINGES
THREE CABLE GLAND WITH
ONE HOLE PLUG
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
AMBER for a 100Mb link
GREEN in low power mode ( 802.3af)
802.3at) .
LATCHES
931279E Quick Reference
Dimensions
Notes:
1. Dimensions
are in inches
[millimeters].
2. Projection: 5.12 [130]
Third Angle
Mounting Bracket
Quick Reference
7.87 [200]
Pull the mounting bracket
outward while tightening the
screw. Do the same to all
four mounting brackets.
931279E © 2019, CyberData Corporation, ALL RIGHTS RESERVED
