Power Supply System

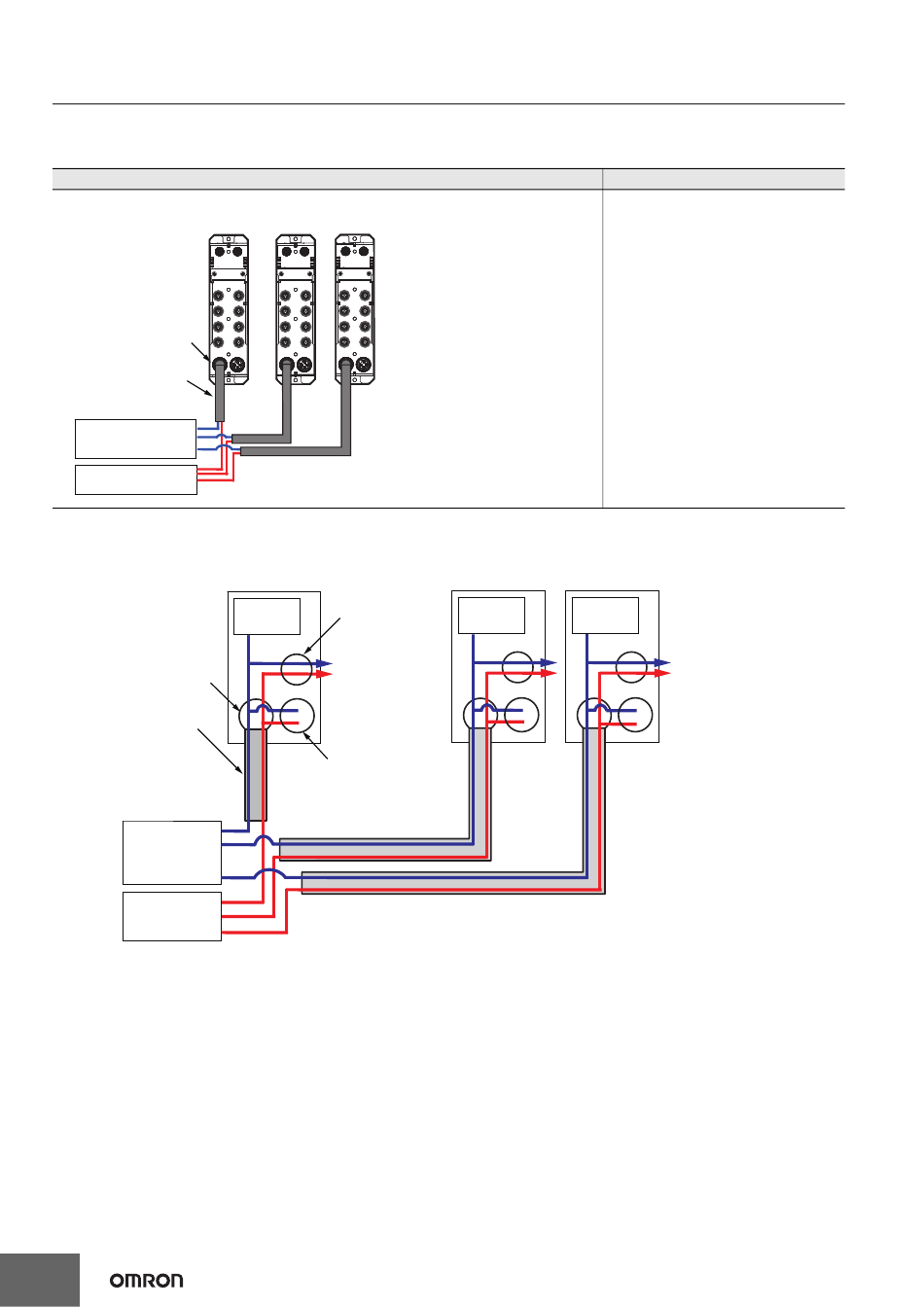

There are two methods to supply power to IO-Link Master Units as shown below.
Direct power supply
Connect the external power supplies to the power supply connector (input) of each IO-Link Master
Unit. The power supply connector (output) is not used.
Power supply
connector (input)
(PWR IN)
Power supply cable
Unit/input power supply
Output power supply
An example is shown below.
Connect the external power supplies to the power supply connector (input) of each IO-Link Master Unit.
Power supply
connector (input)
(PWR IN)
Power supply
cable
Unit/input
power supply
Output
power supply
18
Description
IO-Link Master Unit
I/O connectors
Internal
(P1 to P8)
circuits
To external
devices
Power supply
connector (output)
(PWR OUT)
This method does not cause voltage drop
in through-wiring cables or due to
connection through IO-Link Master Units.
IO-Link Master Unit IO-Link Master Unit
Internal Internal
circuits circuits
Feature
