NXR-ILM08C-EIT

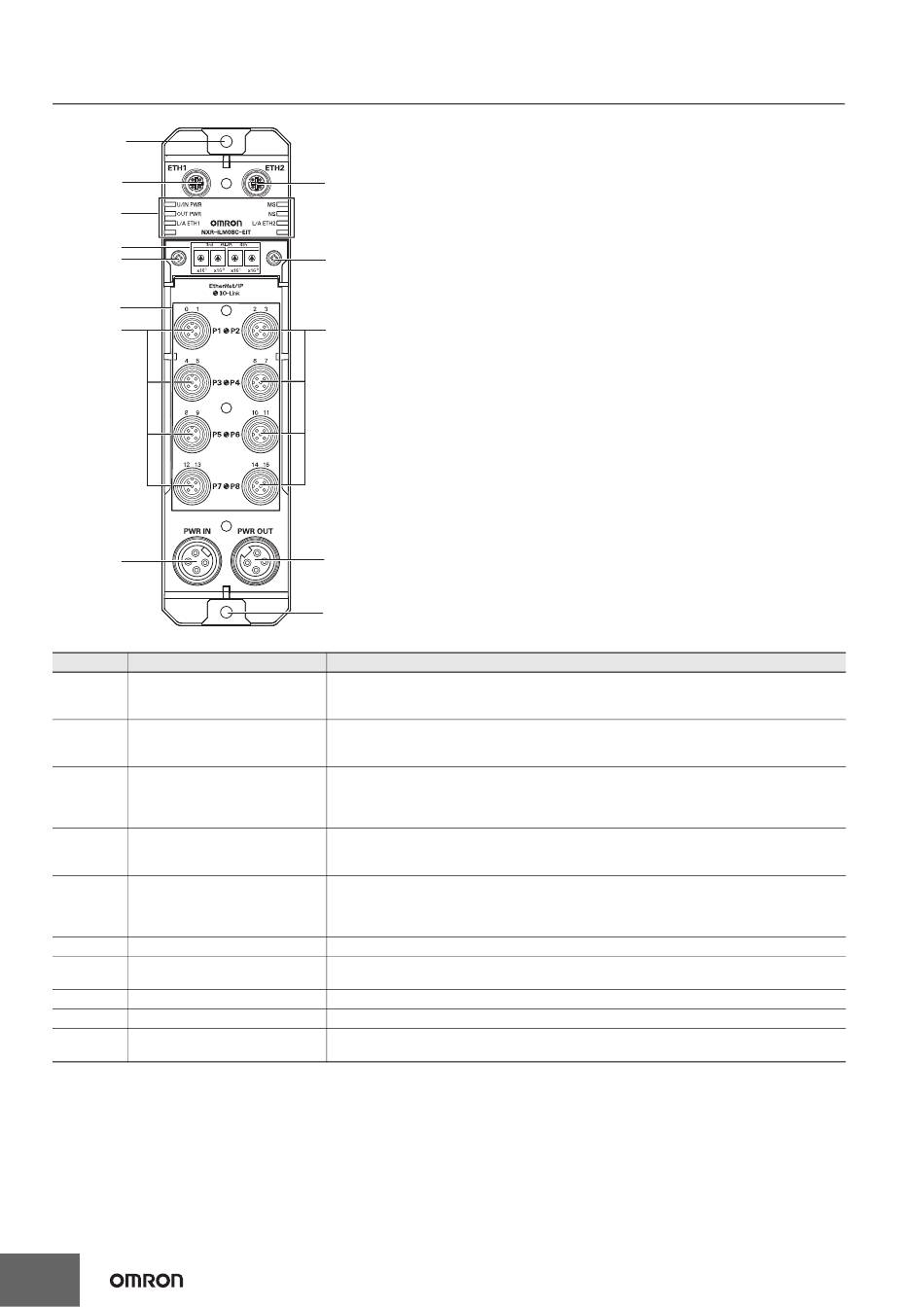

External Interface

(J)
(A)
(I)
(H)
(G)
(F)
(C)
(D)
Letter
EtherNet/IP communications
(A)
connector 1
EtherNet/IP communications
(B)
connector 2
(C) I/O connectors
(D) Power supply connector (input)
(E) Power supply connector (output)
(F) I/O indicators
(G) Cover mounting holes
(H) Rotary switches
(I) Status indicators
(J) Unit mounting holes
12
(B)
(G)
(C)
(E)
(J)
Name
The connector for EtherNet/IP port 1.
• M12 connector (D-coding, female)
Connect a communications cable.
The connector for EtherNet/IP port 2.
• M12 connector (D-coding, female)
Connect a communications cable.
The connectors for connecting IO-Link devices or non-IO-Link connected external devices.
They are called "ports."
• M12 connectors (A-coding, female)
Connect I/O cables.
The connector for supplying Unit/input power and output power.
• 7/8 inch connector (male)
Connect the power supply cable to an external power supply.
The connector for supplying Unit/input power and output power from the local node to another
node. Use this connector when the power supply method is power supply with through-wiring.
• 7/8 inch connector (female)
Connect the power supply cable to an additional IO-Link Master Unit.
The indicators that show the I/O status of pin 4/pin 1 and pin 2 for each port.
The screw holes for mounting the rotary switch cover. They are provided in two locations.
The above figure shows the holes when the cover is mounted with screws.
The switches for setting the IP address.
The indicators that show the current operating status of the Unit.
The holes for mounting the Unit. They are provided in two locations. Mount the Unit with M5
screws.
Function
