Omron NXR-ILM08C-EIT Manual page 16

NXR-ILM08C-EIT

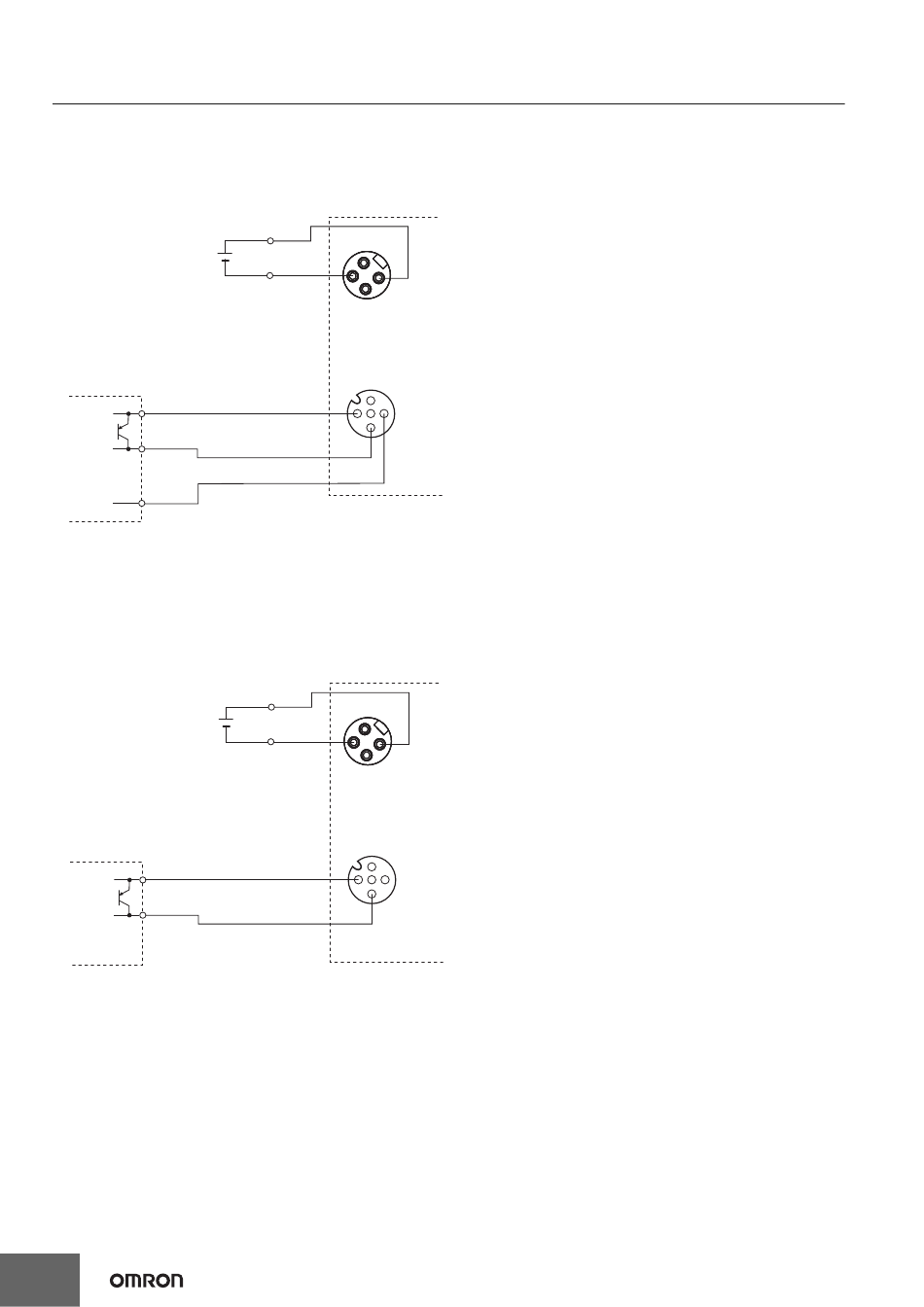

Wiring Example for Non-IO-Link Input Devices
Wiring Example for Three-wire Sensors
In this example, the port is used in the following communications modes.
Pin 4: SIO (DI) Mode, pin 2: Disabled
Unit/input power supply
Three-wire sensor
PNP type
Wiring Example for Two-wire Sensors
In this example, the port is used in the following communications modes.
Pin 4: SIO (DI) Mode, pin 2: Disabled
Unit/input power supply
Two-wire sensor
16
U/IN P+
4
U/IN P-
2
3
Power supply connector (input)
1
IO-Link Master Unit
2
I/O connector
L+ brown
3
1
4
C/Q black
L- blue
U/IN P+
4
U/IN P-
2
3
Power supply connector (input)
1
IO-Link Master Unit
2
I/O connector
L+ brown
3
1
4
C/Q black
