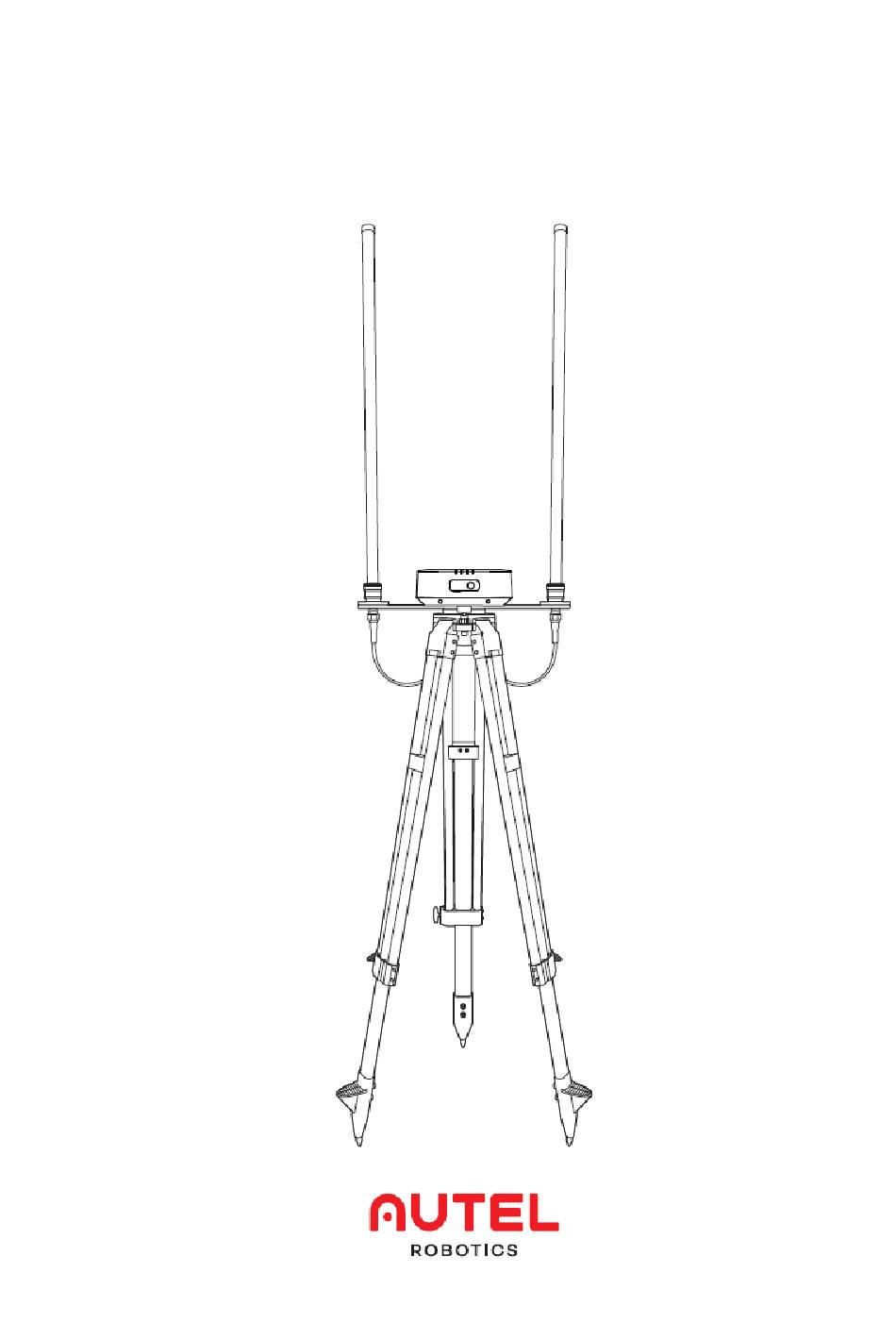

  • Page 1 Dragon Fish Mobile Station Quick Guide...

  • Page 2: Battery Safety

    Disclaimer To ensure safe and successful operation of your base station, please strictly follow the operating instructions and steps in this manual. If the user does not abide by the safety operation instructions, DTO Smart will not be responsible for any product damage or loss during use-whether direct or indirect, legal, special, accident or economic loss (including but not limited to loss of profit)- Provide warranty service.
  • Page 3 4. Use the base station in an open environment free from radio interference. Be sure to turn off other wireless devices in the same frequency band before using it. 5. Please make sure that the antennas of all devices are not blocked during use. 6.

  • Page 4: Component Description

    base station tripod base station feeder base station antenna multi-function charger 1 PCS TYPE-C charging 1 PCS cable Document (Quick Guide) component description...
  • Page 5 base station body 1. Linking indicator 2. WiFi indicator 3. RTK indicator 4. Power indicator 5. USB-C charging port 6. Linking button 7. Power button 8 Port cover...
  • Page 6 9. Antenna N-type connector 10. Turntable mounting hole 11. Heat sink tripod...
  • Page 7 1. Fixing screw 2. Knob 3. Telescopic pole 4. Foot nail ready for charging Short press (<1 second) the power button once to check the battery level. Description of power indicator Green: Electricity>60% Yellow: Electricity>30%...
  • Page 8 Red: Electricity>10% Red flashing slowly: Electricity <10% charging method charge When using thefor the first time, be sure to fullythe battery. Please use a dedicated charger to charge the base station. 1、 Plug the Type-C power cord into the Type-C port of the base station, and the base station will automatically enter the charging mode (either when it is turned on or off).
  • Page 9 RTK indicator light Description Green: Number of satellites>16, good signal (normal flight) Yellow: Number of satellites 6-15, poor signal (it is recommended to adjust the base station to an open area) Red Slow flashing: number of satellites <6, poor signal (recommend the base station to be placed in an open area) Light off: no RTK signal (indoors or abnormal base station RTK) use to...
  • Page 10 1、 turn on the power of the station; 2、 turn on the remote control and run the Autel Voyager App, select "Settings -> Base Station", you can see the base station wifi hotspot after entering, enter the password: 12345678, wait a few seconds until the remote control is successfully connected to the base station;;...
  • Page 11 2. Install the base station body to the tripod and tighten the lock nut on the body. Ensure that the base station is level and stable.
  • Page 12 3. Install the antenna on the tripod and connect the antenna feeder to the base station antenna port.
  • Page 14 Note: • After the tripod is leveled, do not change the position and angle of the tripod or base station, otherwise you need to level it again. • The installation environment of the base station requires a wide field of vision, and ensure that there are no obstacles (trees, buildings) above 15°...
  • Page 15 antenna to avoid GNSS signals from being absorbed or blocked. • The installation environment of the base station should be at least 200 m away from high-power radio sources (such as TV stations, microwave stations, etc.), and at least 50 m away from high-voltage transmission lines to avoid electromagnetic field interference to GNSS signals.
  • Page 16 BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B positioning single point accuracy level: 1.5 m (RMS) Vertical: 3.0 m (RMS) horizontal: 1 cm + 1 ppm (RMS) Vertical: 1.5 cm + 1 ppm (RMS) 1 ppm: each increase of X km, the accuracy becomes worse by X mm.
  • Page 17 distance between Base station and ground station: 200m (no interference, no obstruction; the height of the base station is 2m from the antenna to the end of the tripod, and the height difference with the remote control is within 10m, on the ground The height of the station above the ground is 0.2 m) Memory capacity...

  • Page 18: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 19 Note: The content is subject to update without notice. You can check the latest version on the official website of Autel Intelligent https://www.autelrobotics.cn/...
