CyberData 011308 Installation Quick Reference page 2

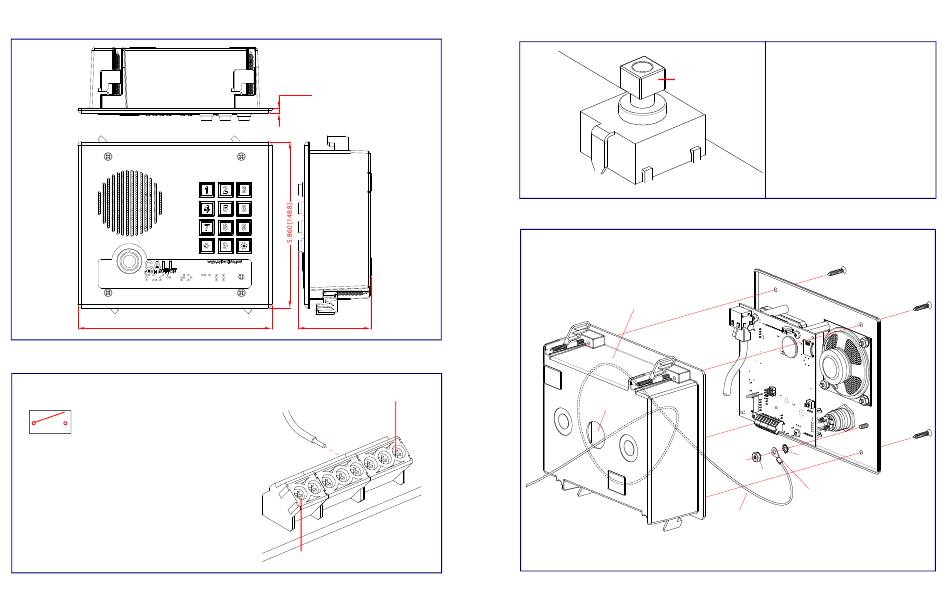

Dimensions
6.840 [173.7]
Dimensions are in Inches [Millimeter]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
0.170 [4.3]
2.579 [65.5]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
931642B
RTFM Button
Ground Connection
1
Quick Reference Quick Reference
RTFM button (SW1)
Create Service Loop
inside Gang Box
Knock Out
Nut
Ground Wire
(Not Provided)
931642B © 2019, CyberData Corporation, ALL RIGHTS RESERVED
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
Star
Washer
#6 Ring Terminal
