PRODUCT NAME

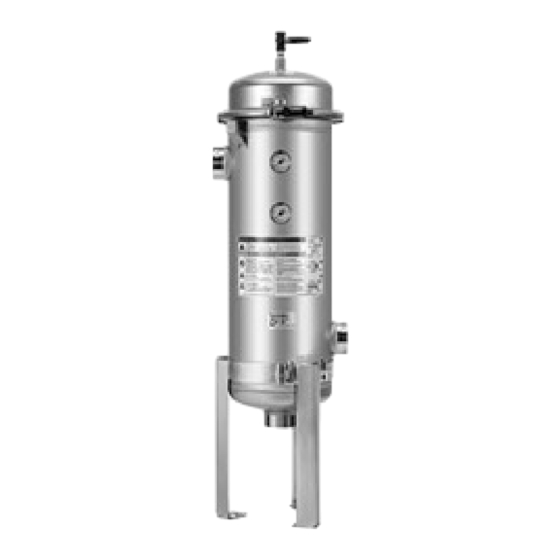

Bag Filter
FGFS1※－20－E※B－※
FGFL1※－20－E※B－※
○ This operation manual is for above model numbers.
Confirm the model number of used bag filter.
○ Read and understand the Operation Manual before installing
and operating the product.
○ In particular, before restarting the product, ensure that safety
measures are taken.
○ Keep this operation manual available whenever necessary.
○ Please note that this Operation Manual is subject to change
without prior notice.
MODE / Series
1 / 13
FGX-OM-N027-B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks FGFS1 Series
Summary of Contents for SMC Networks FGFS1 Series
- Page 1 1 / 13 FGX-OM-N027-B PRODUCT NAME Bag Filter MODE / Series FGFS1※－20－E※B－※ FGFL1※－20－E※B－※ ○ This operation manual is for above model numbers. Confirm the model number of used bag filter. ○ Read and understand the Operation Manual before installing and operating the product. ○...
-
Page 2: Table Of Contents
2 / 13 FGX-OM-N027-B Contents Safety Instructions ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥1 1. Handling Precautions ‥‥‥‥‥‥‥‥‥‥･‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥3 2. Name and function of parts ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥5 3. How to order Specifications ‥‥‥‥‥‥‥‥‥‥‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥6 1) How to order ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥････････････‥‥‥‥6 2) Specifications‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥･････････‥‥････6 4. Circuit ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥･･･････････････････‥‥‥‥6 5. Assembly, Installation and piping ‥‥‥‥‥‥‥‥‥‥‥‥･････････････････････‥‥‥･7 1) Assembly ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥･････････････････････････････････････‥‥‥･7 1-1) Mounting of feet 1-2) Mounting of pressure sensor... -
Page 3: Safety Instructions
3 / 13 FGX-OM-N027-B Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions are categorized into three groups, "Caution", "Warning" and "Danger" depending on the level of hazard and damage, and the degree of emergency. They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC), Japan Industrial Standards (JIS)*1) and other safety regulations*2). - Page 4 4 / 13 FGX-OM-N027-B Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Handling Precautions
5 / 13 FGX-OM-N027-B 1. Precautions for handling Selection / Design Installation and piping Carefully consider the application, required Caution specifications, and the operating conditions ① Use a circuit which does not apply much pressure or (fluid, pressure, flow rate, temperature, load fluctuation to the filter. - Page 6 6 / 13 FGX-OM-N027-B Precautions for handling Maintenance Warnin g Warning ①Do not loosen the V band while pressure is applied to ①Incorrect maintenance procedure can result in fluid the product leakage or falling of the cover leading to unexpected accidents.
-
Page 7: Name And Function Of Parts
7 / 13 FGX-OM-N027-B 2 Name and function of parts Rc1/4 Name and function of parts Air release valve Valve to discharge air left in the vessel when the pump is pressurized for starting. (Port size: R1/4) V band seat (At the front and the back) The seat on which V band is placed for easy mounting. -
Page 8: How To Order Specifications
8 / 13 FGX-OM-N027-B 3. How to Order / Specifications How to order ＦＧＦ※１※－２０－Ｅ※Ｂ－※ Material Pressure gauge Ｓ Ｌ Symbol Symbol No symbol Port size Seal material NBR FKM Pressure gauge Pressure Element size Symbol Element gauge included Port size Symbol Model change symbol Φ190×L440... -
Page 9: Assembly, Installation And Piping
9 / 13 FGX-OM-N027-B 5. Assembly, installation and piping Assembly Assemble the product according to the following procedure. ①Check the contents 《Contents》 Filter: 1 Operation manual: 1 (This manual) Leg: 1 set Hexagon socket head bolt / Hexagon nut / Flat washer: (1 bag) Pressure gauges: 2 (for pressure gauge type) ②Take out the filter body. -
Page 10: Maintenance
10 / 13 FGX-OM-N027-B the element.) Check the port size for piping the valve and fitting which are appropriate for the operating conditions. Flush piping with air before operation, confirming there is no abnormality such as fluid leakage. Connect piping so that air can be discharged from the case. To the tank Air release valve Piping in which a small amount of air constantly returns to the tank by a resin tube... - Page 11 11 / 13 FGX-OM-N027-B ①Remove the basket by lifting it vertically. (Figure on the right) ②Check O-ring mounted to the holder in the case. If there is any failure such as swelling, replace O-ring with a new one. Cross section of B [Assembly part number of the holder for replacement] Holder...
- Page 12 12 / 13 FGX-OM-N027-B ②-2 Set the tightening bolt to the hole and tighten it properly. (Fig. C) ③-3 Tighten bolt. (Fig D) Hole Contact closely Tightening bolt Tightening bolt Fig. C Position for V band bolt for tightening Fig. D Final condition of the tightening of V Warning Mount V band securely in the correct position.
- Page 13 13 / 13 FGX-OM-N027-B Revision history Rev A:Mar. 2013 P.8 to P.9: Illustration change. Rev B:Jan.2021 P5 to P8,P10,P11: Valve shape change. P5:Postscript 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
