Anchor Clamp Installation
9/16" & 7/16" Open / Box End Wrench required.
Anchor clamps are designed to hold the track in place while
allowing free expansion of the system due to temperature changes.
One anchor clamp is required per run and should be placed as
close to the center of the system as possible.
1. In the center of the system, place an Anchor Clamp instead of
a Track Hanger Clamp to anchor the system. The C-Track is
now positioned into place. See Figure 8-1.
NOTE
• Do not overtighten screw. Clamp will spread apart and
cause C-Track to lose support and possibly fall out.
Girder Clamp Installation
1/2" Open / Box End Wrench required.
Girder clamps are designed to hold the crossarm supports to the
I-beam. Two girder clamps required per crossarm support.
1. Orient square nut flush against inside bottom surface of
C-Track crossarm support. See Figure 8-2.
2. Tighten until clamp is flush with I-beam and crossarm is
secured. See Figure 8-2.
End Clamp Installation
1/2" Open / Box End Wrench required.
The End Clamp is the first cable carrier at the fixed end of the
festoon system. The "End Clamp" will always be the stationary
component of the festoon system and does not have wheels.
Typically only one is required per system.
1. Install the end clamp assembly at the far end of the fixed end
of the C-Track and tighten fasteners to 11 ft.-lbs. See Figure
8-3.
8
Heavy Duty C-Track Manual
SECTION 3 - INSTALLATION

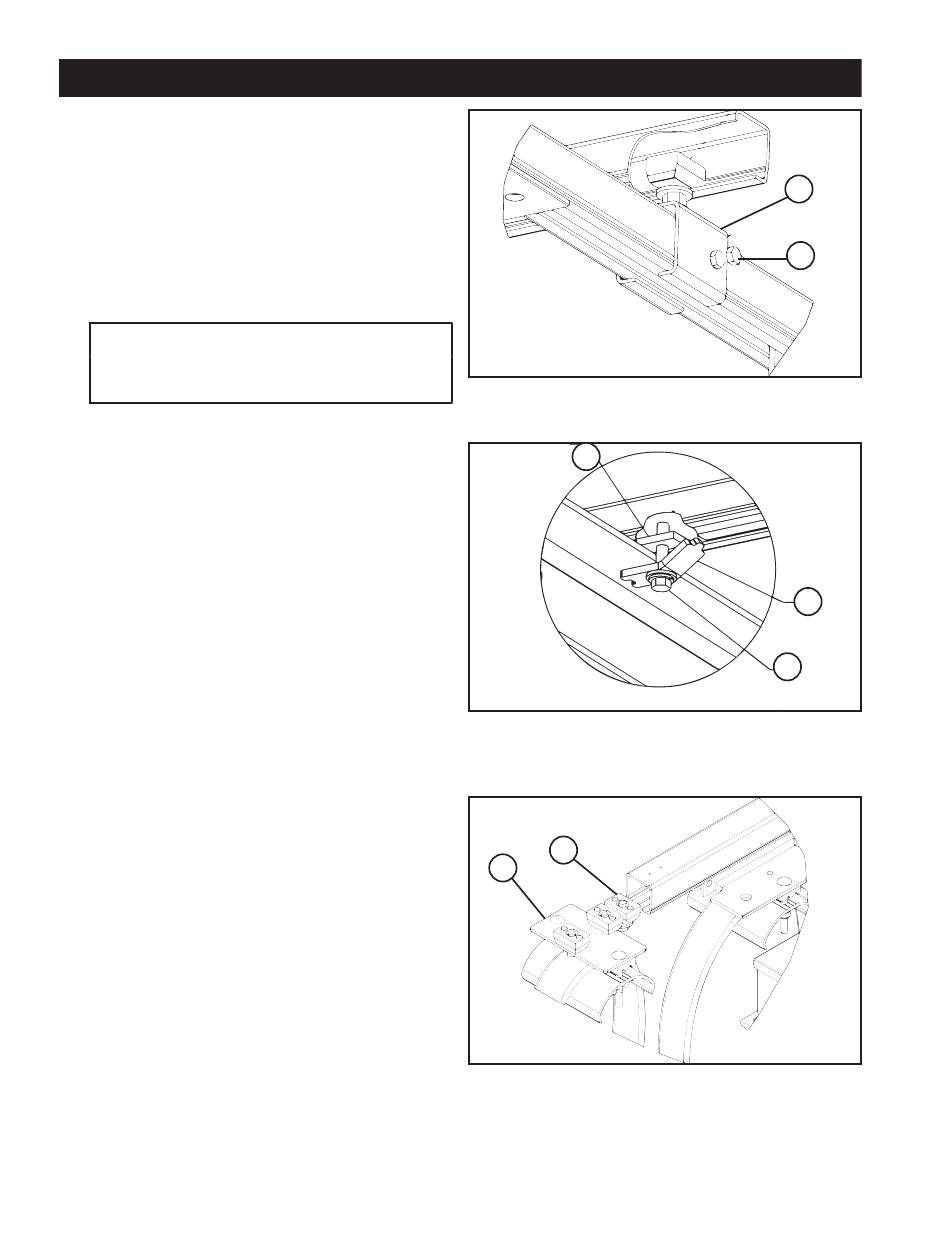

Figure 8-1
Figure 8-2
Figure 8-3
1. Anchor Clamp
2. Screw
3
1. Girder Clamp
2. Square Nut
3. Crossarm Support Surface
2
1
1. End Clamp
2. End Stop
1
2
1
2
