Located longitudinal center line of runway where channel is to be
installed.
If the C-Track is to be attached under a beam or stud, the hanger
locations should be marked and drilled, or crossarm support
installed.
Track Hanger Installation
9/16" Open / Box End Wrench required.
The track hanger is designed to be mounted on angle iron brackets
with one mounting hole - can also be mounted on C-Track
crossarm support or other suitable structures.
One track hanger is required for each crossarm support bracket for
each track run at 10ft. spacing (or 5ft. spacing for SST track). Extra
track hanger and crossarm support bracket is required in storage
area.
1. Slip the appropriate number of hangers on each section of
C-Track.
2. Bolt the section loosely in place, joining the ends of the
channels with splice joints as you progress. See Figure 7-1.
3. Align set screws with holes in C-Track and tighten. See Figure
7-1.
Track Joint Assemblies Installation
7/16" Open / Box End, 1/8" Allen Wrench 3/32" Drill Bit required.
Track joints clamp for secure attachment and proper alignment of
track section. Each kit includes four set screws and nuts. Welded
splice assemblies are also available. See Figure 7-2.
1. Install the joints and tighten fasteners using a 1/8" Allen and a
7/16" open/box end or weld in place. See Figure 7-2.
2. If C-Track must be shortened, the hole pattern must be
transferred to the new cut length. See Figure 7-3.
SECTION 3 - INSTALLATION

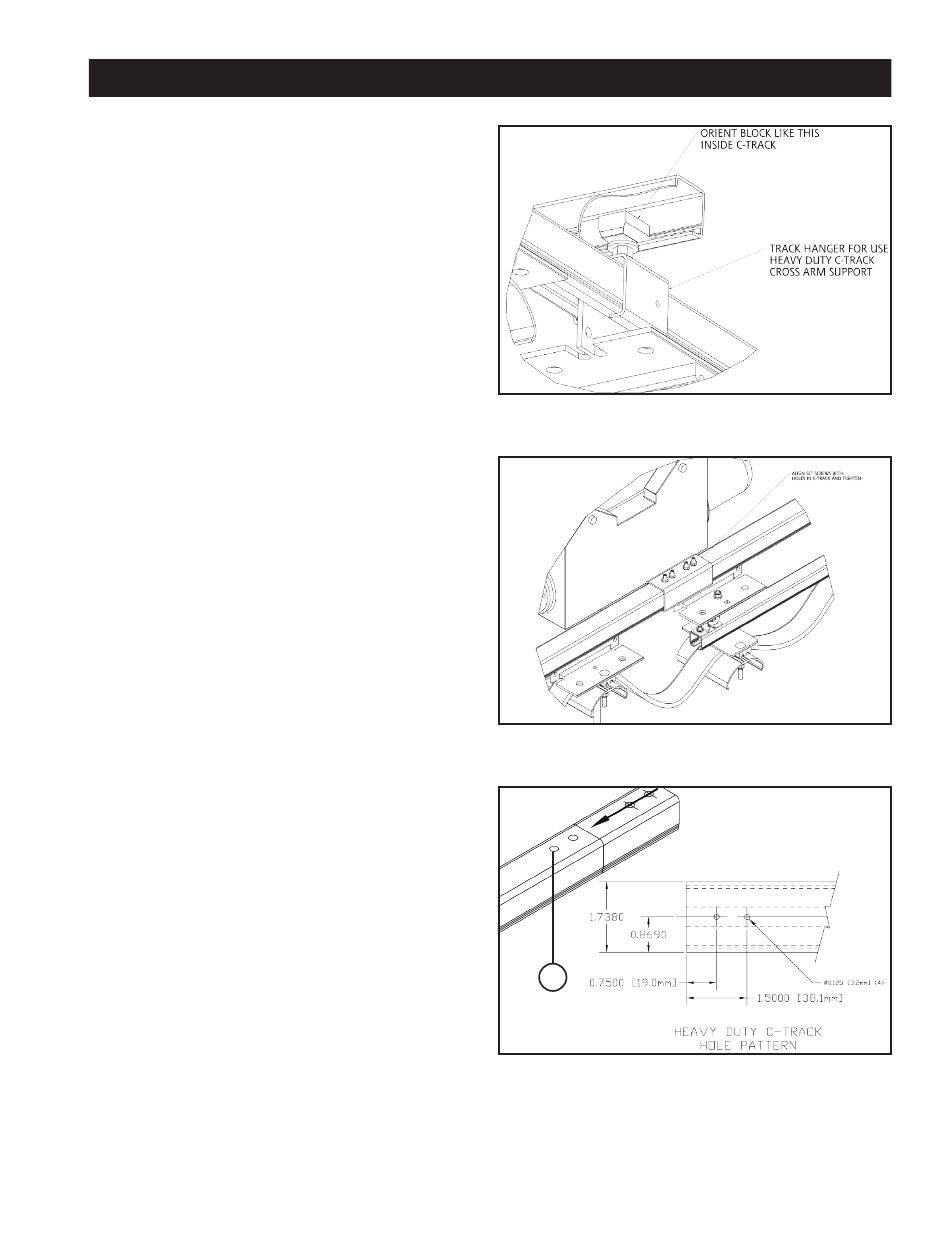

Figure 7-1
Figure 7-2
Figure 7-3
1
1. Hole Pattern
Heavy Duty C-Track Manual
7
