SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Specifications:
Voltage:
.51 Amps @ 12 VDC
.25 Amps @ 24 VDC
Models:
30 – 4 – 12
30 – 4 – 24
Options:
FS – Fail-Safe
LCBMA-30 – Latch & Locking cam monitoring
P:\INST INSTRUCTIONS\ELECTRIC STRIKES\INST-30-4
INSTALLATION INSTRUCTIONS

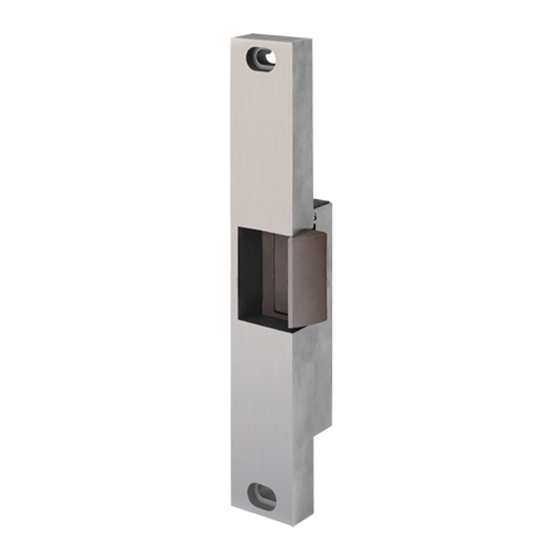

RIM MOUNT ELECTRIC STRIKE
Rev B
03-21
30-4
Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Related Manuals for SDC 30-4-12
Summary of Contents for SDC 30-4-12
- Page 1 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION INSTRUCTIONS 30-4 RIM MOUNT ELECTRIC STRIKE Specifications: Voltage: .51 Amps @ 12 VDC .25 Amps @ 24 VDC Models: 30 –...
- Page 2 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 CAUTION! Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed.
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Attaching the Faceplate 1. To attach the 30-4 series electric strike body to the faceplate, INSTALL with two #8-32 body mounting screws as shown.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Strike Dimensions 1/2" 1" 5-5/8" 8-1/4" 9" 1-1/8" 1-3/4" 1-13/34" 1/4" Dimensional Drawing Only Not Drawn to Scale Frame Dimensional Cutout 1"...
