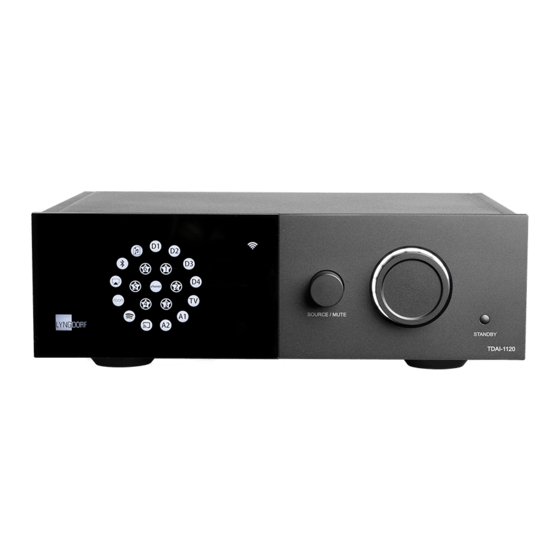

Lyngdorf Audio TDAI-1120 Owner's Manual
  1. Manuals
  2. Brands
  3. Lyngdorf Audio Manuals
  4. Amplifier
  5. TDAI-1120
  6. Owner's manual

Lyngdorf Audio TDAI-1120 Owner's Manual

Hide thumbs Also See for TDAI-1120:
Table of Contents

Advertisement

Quick Links

FORSIDE
Lyngdorf Audio TDAI-1120 – Owner's manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDAI-1120 and is the answer not in the manual?

Questions and answers

Related Manuals for Lyngdorf Audio TDAI-1120

Summary of Contents for Lyngdorf Audio TDAI-1120

  • Page 1 FORSIDE Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 2: Table Of Contents

    ONNECTING A SUBWOOFER TDAI-1120 ......................... 10 URNING ON THE FOR THE FIRST TIME HOW TO USE THE TDAI-1120 ........................... 12 LYNGDORF REMOTE APP ............................13 TDAI-1120 SETUP PAGE ............................14 FINALIZING THE SETUP ............................15 SETUP MENU ................................17 ..................................17 NPUT SETUP .................................

  • Page 3: Welcome

    Perfect™. With this purchase, you have joined the ranks of an elite group of people who believe that perfect sound is more than a luxury. It’s a requirement. The TDAI-1120 will deliver an audio experience that will far exceed your expectations. We thank you for placing your confidence in Lyngdorf Audio.

  • Page 4: What Is In The Box

    8 m (26 feet) XLR – Microphone cable Universal Mains detection Mains Inlet: IEC320 RoomPerfect™ microphone Microphone stand For full installation you will need loudspeakers and loudspeaker cables. For integration with television sound you will need an HDMI cable. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 5: Back Panel Guide

    8. TV: (No video output) Connects to your television’s HDMI ARC connector for playing TV sound. 9. TRIGGER IN/OUT: These connectors allow you to have the TDAI-1120 activated by another product – or to have the TDAI-1120 activate other products, when turned on and off.

  • Page 6: Front Panel Guide

    Flashing light = RoomPerfect™ guide is currently running • No light = no RoomPerfect™ processing is active 6. Source/Mute • Short press to toggle mute and unmute • Rotate left and right to toggle between audio inputs Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 7: How To Get Started

    If you have a local network, connection by wire is recommended, as it provides a more stable and faster network connection than Wi-Fi. The TDAI-1120 features a wide range of connectors on the back for external audio sources in addition to the streaming options available through Bluetooth or your network.

  • Page 8: Connecting A Subwoofer

    Bypass input of the subwoofer. In a traditional single subwoofer setup, connect the subwoofer to the left analog output on the TDAI-1120. For a stereo subwoofer setup, or if you have a subwoofer which has stereo input, use both left and right analog outputs.
  • Page 9 Subwoofer controls (not Lyngdorf type): 1. Phase adjustment should be 0°. 2. The subwoofer cut-off frequency should be set to the highest possible frequency range. 3. Level should be set to 50% of the maximum. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 10: Turning On The Tdai-1120 For The First Time

    Network connection by cable (recommended) If the TDAI-1120 is connected to your network by cable, you can now access the TDAI-1120 by the Lyngdorf Remote Application for IOS and Android™ devices, and you can stream to the TDAI-1120 from your music applications.
  • Page 11 “Connected” pages will be shown. 12. The next page, “Linking your Lyngdorf TDAI-1120,” gives you the ability to link your TDAI- 1120 to a Google account to make use of the many Google features. Read the “Before using your Goggle Assistant,”...

  • Page 12: How To Use The Tdai-1120

    Turn on the TDAI-1120 by pressing the Standby button Turn the Source button to select the music source – when streaming audio to the TDAI-1120, it will automatically switch to the correct input – see which source is active on the Display.

  • Page 13: Lyngdorf Remote App

    For Android and IOS based phones you will be able to download the “Lyngdorf Remote” app, which will allow you to handle the operation of your TDAI-1120 – see examples. Select input, listening position and voicing directly, and see the signal information in the volume wheel, which you can operate like you operate the volume on the amplifier itself.

  • Page 14: Tdai-1120 Setup Page

    Lyngdorf Remote application. TDAI-1120 setup page When the TDAI-1120 is connected to your local network, you can connect to your TDAI-1120 in different ways. Use the Lyngdorf Remote app to discover the device and enter the homepage. In the setup menu, you will be able to find the network device address and a direct link to the setup page on your internet browser.

  • Page 15: Finalizing The Setup

    TDAI-1120 can offer. Open the web-page of the TDAI-1120 as described earlier, and we will introduce you to the available menus: The Home screen refers to the daily operation as performed with the remote control. The page displays selected input and formats and you can control the volume setting The Setup section will be described in the following pages.
  • Page 16 For information on the use of the interface see section for Streaming Setup. Hot tip: On your mobile device the Home Screen page of your amplifier can be saved as an icon for swift access to operation of the TDAI-1120. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 17: Setup Menu

    Selects a default voicing for the input which is active when in this menu. If you always want extra bass on your gaming console audio, for example, set that voicing here. Enable theater mode: Turns the amplifier into a dedicated power amplifier for the input which is active when in this menu. Lyngdorf Audio TDAI-1120 – Owner’s manual...

  • Page 18: Output Setup

    Do not test this setting with a CD player or similar unregulated signal! This feature might be selected if you are using the TDAI-1120 in a home theater setup where it is used to power and calibrate the front speakers and/or subwoofer. Connect your home theater processor to the selected input.
  • Page 19 (from speaker and subwoofer) arrive to your ear at the same time. This is more effectively achieved digitally than by trying to find the correct settings on the subwoofer(s). The TDAI-1120 will adjust for phase based upon your entry of the distances between the speakers’ and subwoofers’ locations in relation to your listening position (focus position).
  • Page 20 (DSP) or a separate amplifier, there may be a natural electronic delay in these products. Refer to the original manufacturer’s instructions to obtain the correct amplifier delay in milli-seconds and enter this data. The TDAI-1120 will delay the signal to the speakers to match the delay entered. Main speaker output: The available settings are: Lyngdorf Audio TDAI-1120 –...
  • Page 21 Full range allows the signal to pass unfiltered to a separate amplifier, bypassing the internal amplifier. • Headphone disables RoomPerfect™; voicings are still available. Muting the TDAI-1120 will only mute the speakers, not this output. • Tape Out disables RoomPerfect™, voicings and volume control.

  • Page 22: Roomperfect™ Setup

    Hot Tip: The objective is to have the RoomKnowledge index increase as slowly as possible. This indicates that each measurement holds new data for the calibration. When the measurement does not give new data, the index will increase quickly. Lyngdorf Audio TDAI-1120 – Owner’s manual...
  • Page 23 Press enter and a test signal will start from the left speaker. The TDAI-1120 will give an estimated optimal volume for calibrating the system or will accept the current volume. Adjust the volume if required and retry the measurement.
  • Page 24 To fully optimize RoomPerfect™’s understanding of the room’s acoustical properties, we recommend you keep doing measurements until RoomKnowledge is above 95%. The higher the RoomKnowledge, the more accurate the room correction filters will be. When room measurements are complete, the TDAI-1120 will calculate the focus and global filters automatically. RoomPerfect™ troubleshooting The calibration microphone is very sensitive and may pick up unwanted noise, including subsonic signals and background noise, which disturb the measurements.

  • Page 25: Voicing Setup

    Main volume control will allow you to set the default volume when turning on the TDAI-1120, as well as to set a maximum limit to how loud the TDAI-1120 may play.

  • Page 26: Hdmi Setup

    CEC power will allow for the TDAI-1120 to automatically switch on from standby, when the television or HDMI connected source is turned on. CEC audio system allows for the television to be used as speakers for sources connected to the TDAI-1120. Note: Menus only appear if CEC is enabled.
  • Page 27 UPnP server to the TDAI-1120. If a USB memory stick with audio files is mounted to the TDAI-1120, you can play songs from this storage using the web page “Streaming Audio” tab or in the Lyngdorf Remote app for Android and iOS as part of “Top Menu.”...

  • Page 28: General Setup

    Manage software Backup When a USB device is inserted in the connector on the rear of the TDAI-1120, this menu will allow you to store a complete backup of settings and the RoomPerfect™ calibration. This will allow you to restore the amplifier to this specific setup at a later date.
  • Page 29 In case the TDAI-1120 is not connected to the internet, you can update the software by saving the software file on a FAT32 formatted USB drive- Through the web interface, select the software from the USB drive.

  • Page 30: Cleaning And Maintenance

    Cleaning and maintenance The TDAI-1120 does not require any regular maintenance except to keep its exterior clean. Simply wipe it with a clean, soft cloth. A small amount of non-abrasive cleaner may be used on the cloth to remove any dirt or fingerprints.
  • Page 31 Lyngdorf Audio TDAI-1120 – Owner’s manual SL AUDIO A/S • ULVEVEJ 28 • 7800 SKIVE • DENMARK • WWW.LYNGDORF.COM...
