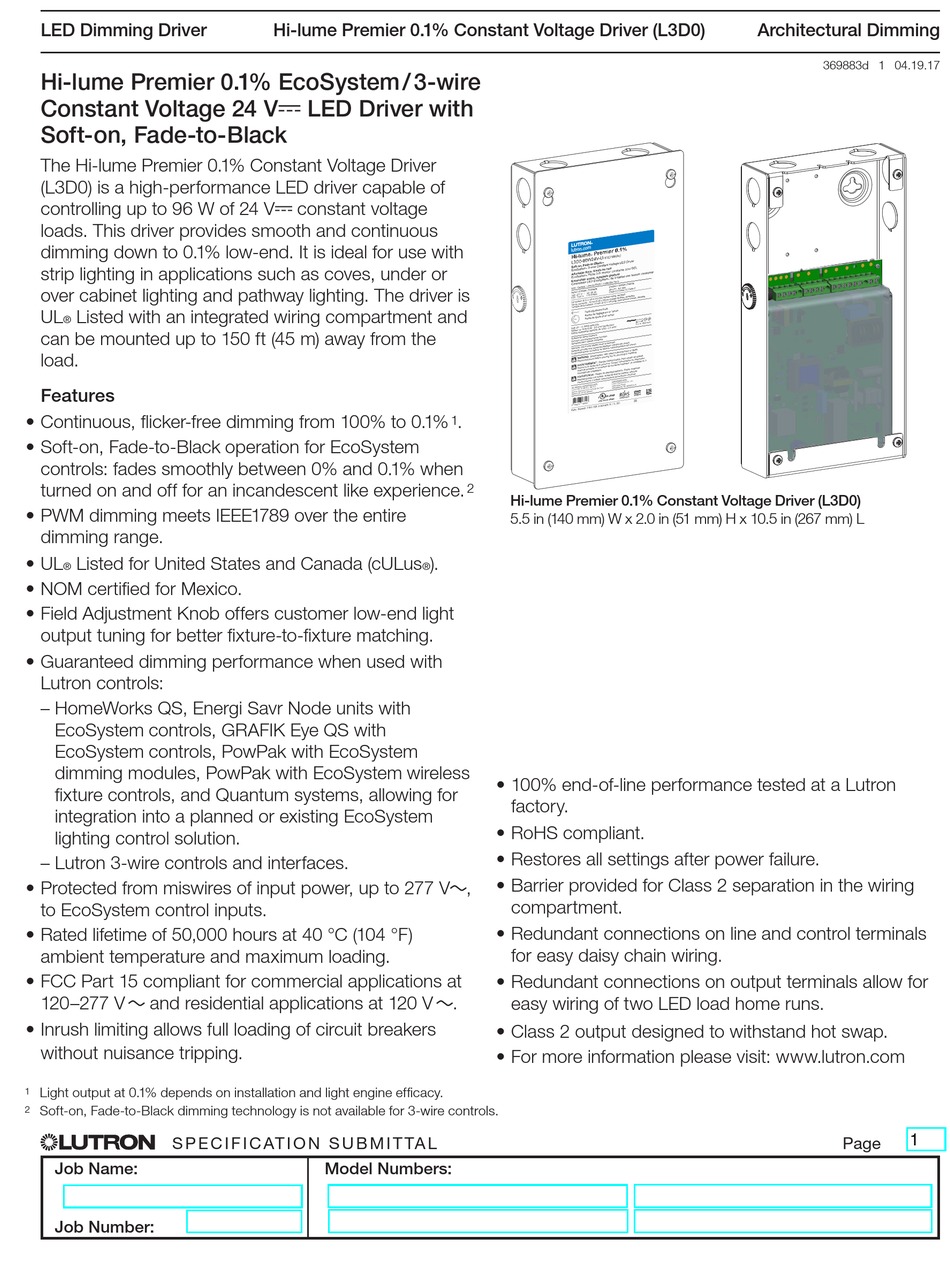

LED Dimming Driver
Hi-lume Premier 0.1% EcoSystem / 3-wire
Constant Voltage 24 V- LED Driver with
Soft-on, Fade-to-Black
The Hi-lume Premier 0.1% Constant Voltage Driver
(L3D0) is a high-performance LED driver capable of
controlling up to 96 W of 24 V- constant voltage
loads. This driver provides smooth and continuous
dimming down to 0.1% low-end. It is ideal for use with
strip lighting in applications such as coves, under or
over cabinet lighting and pathway lighting. The driver is
UL
Listed with an integrated wiring compartment and
®
can be mounted up to 150 ft (45 m) away from the
load.
Features
• Continuous, flicker-free dimming from 100% to 0.1%
• Soft-on, Fade-to-Black operation for EcoSystem
controls: fades smoothly between 0% and 0.1% when
turned on and off for an incandescent like experience.
• PWM dimming meets IEEE1789 over the entire
dimming range.
• UL
Listed for United States and Canada (cULus
®
• NOM certified for Mexico.
• Field Adjustment Knob offers customer low-end light
output tuning for better fixture-to-fixture matching.
• Guaranteed dimming performance when used with
Lutron controls:
– H omeWorks QS, Energi Savr Node units with
EcoSystem controls, GRAFIK Eye QS with
EcoSystem controls, PowPak with EcoSystem
dimming modules, PowPak with EcoSystem wireless
fixture controls, and Quantum systems, allowing for
integration into a planned or existing EcoSystem
lighting control solution.
– Lutron 3-wire controls and interfaces.
• Protected from miswires of input power, up to 277 V~,
to EcoSystem control inputs...
• R ated lifetime of 50,000 hours at 40 °C (104 °F)
ambient temperature and maximum loading.
• FCC Part 15 compliant for commercial applications at
120–277 V ~ and residential applications at 120 V ~.
• Inrush limiting allows full loading of circuit breakers
without nuisance tripping.
Light output at 0.1% depends on installation and light engine efficacy.
1
Soft-on, Fade-to-Black dimming technology is not available for 3-wire controls.
2
S P E C I F I C AT I O N S U B M I T TA L
®
Job Name:
Job Number:
Hi-lume Premier 0.1% Constant Voltage Driver (L3D0)
1
).
®
Model Numbers:
.
2
Hi-lume Premier 0.1% Constant Voltage Driver (L3D0)
5.5 in (140 mm) W x 2.0 in (51 mm) H x 10.5 in (267 mm) L
• 100% end-of-line performance tested at a Lutron
factory.
• RoHS compliant.
• Restores all settings after power failure.
• Barrier provided for Class 2 separation in the wiring
compartment.
• Redundant connections on line and control terminals
for easy daisy chain wiring.
• Redundant connections on output terminals allow for
easy wiring of two LED load home runs.
• Class 2 output designed to withstand hot swap.
• For more information please visit: www.lutron.com
Architectural Dimming
369883d 1 04.19.17
Page
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hi-Lume Premier 0.1% and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lutron Electronics Hi-Lume Premier 0.1%

  • Page 1 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 1 04.19.17 Hi-lume Premier 0.1% EcoSystem / 3-wire Constant Voltage 24 V- LED Driver with Soft-on, Fade-to-Black The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads.
  • Page 2: Specifications

    LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 2 04.19.17 Specifications Regulatory Approvals and Compliance Performance (continued) • Lutron Quality Systems registered to ISO 9001.2008 • NEMA 410 – 2011 compliant • Inrush Current Limiting Circuitry: decreases circuit • Manufacturing facilities employ ESD reduction practices that comply with the requirements of breaker tripping, switch arcing and relay failure; allows ANSI/ESD S20.20 full loading of switch leg • Meets ANSI C62.41 category A surge protection • Inrush Current: < 2 A standards up to and including 4 kV...
  • Page 3 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 3 04.19.17 Specifications (continued) Terminal Block Details Driver Wiring and Mounting For best installation practices, please refer to Application Note #591 at www.lutron.com. • Mount the driver in a position where it can be easily located and accessed if service or troubleshooting is necessary. • Driver is grounded by terminal connection • Terminal blocks on the driver accept solid or stranded wire per terminal from 20 AWG to 12 AWG (0.50 mm 2.5 mm • Maximum wire length between the LED driver and the start of the linear strip for different wire sizes is listed below.
  • Page 4: Models Available

    LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 4 04.19.17 Models Available Input Input Typical Typical Output Output Model Voltage Current Power Power Voltage (V~) Factor (V-) 0.92 0.99 2 – 96 3-Wire or For 24 V- L3D0-96W24V-U EcoSystem Constant Voltage...
  • Page 5: Enclosure Dimensions

    LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 5 04.19.17 Enclosure Dimensions Measurements are shown as: in (mm) 5.5 (140) 2.0 (51) lu tr on .c om H i- lu m e Knockouts P re m ie r ® 0 .1 % L3 D 0- 96 W 24 V -U So ft- on ,...
  • Page 6 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 6 04.19.17 Mounting Options Mounting Surface Any other mounting configuration will require additional mechanical support. Improper installation may result in hazards to personnel or property. Mount the driver in a position where it can be easily located and accessed if service or troubleshooting is necessary. S P E C I F I C AT I O N S U B M I T TA L Page ®...
  • Page 7 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 7 04.19.17 Barrier Installation and Driver Spacing Requirements Measurements are shown as: in (mm) Option 1 Option 2 • O ptional barrier can be placed either between the input and EcoSystem control terminals (Option 1) when the EcoSystem links are wired as Class 2 or between the 3.375 (86) EcoSystem control and output terminals Barrier Barrier (Option 2) when the EcoSystem links are wired as Class 1.
  • Page 8 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 8 04.19.17 Control Mounting Options (continued) A PowPak Wireless Fixture Control can be mounted on the driver using the driver's available knockouts. Additional considerations may be required based on state and local codes and standards. PowPak Dimming Module Model RMJ-ECO32-DV-B PowPak Fixture Control Model FCJ-ECO, FCJS-ECO Pico Wireless Control Model PJ2-3BRL-GWH-L01 lutron.com Hi-lume Premier 0.1%...
  • Page 9 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 9 04.19.17 Wiring L3D Models: 3-Wire Controls (third wire required for control signal) Wiring Diagram Lutron LED + 3-Wire Dimmer/ Line / Hot Switched Line / Hot (L) Module/Panel Hi-lume Dimmed Hot (DH) Premier To line 0.1 % Constant...
  • Page 10 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 10 04.19.17 Wiring (continued) L3D Models: EcoSystem Digital Controls To EcoSystem Digital Link LED+ Line / Hot (L) Hi-lume Premier To line 0.1 % Constant Light voltage Voltage Engine LED Driver Neutral (N) LED– Ground Compatible Controls with Soft-on, Fade-to-Black dimming technology: Lutron EcoSystem Digital Controls Guaranteed performance specifications with the controls listed in the chart below.
  • Page 11 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 11 04.19.17 Wiring (continued) Continuous LED Light Run In a continuous LED light run, it is best to connect the load wires in the middle of the LED light run. Please consult load manufacturer best practices for any additional consideration in load installation.
  • Page 12 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 12 04.19.17 EcoSystem Wiring EcoSystem Digital Link Overview • The EcoSystem Digital Link wiring (E1 and E2) connects the digital ballasts and drivers together to form a lighting control system. • Sensors do not connect directly to drivers. Sensors are integrated through the EcoSystem controller. • E1 and E2 (EcoSystem Digital Link wires) are polarity-insensitive and can be wired in any topology. • Power is supplied to the EcoSystem Digital Link from the control system.
  • Page 13 LED Dimming Driver Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) Architectural Dimming 369883d 13 04.19.17 Field Adjustment Knob The Field Adjustment Knob is located on the side of the Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) enclosure. This feature enables the customer to tune the lowest light output achieved during normal operation. An example of this scenario is shown in the image below. Adjusting the Field Adjustment Knob of the lower light output driver minimizes the light output difference and sets the low-end light level at 0.1%. This feature only needs to be used in cases of mismatched loads that are separately controlled by 2 or more units. Figure 1: Cove Lighting with Mismatched Light Output at Low-End Due to Installation Variability 2 W Load 96 W Load...
  • Page 14: Replacement Parts

    — Connect the equipment into an outlet on a circuit registered in the U.S. and other countries. different from that to which the receiver is Soft-on, Fade-to-Black, Energi Savr Node, and QwigFig are trademarks connected. of Lutron Electronics Co., Inc. — C onsult the dealer or an experienced radio/TV ENERGY STAR is a registered trademark of the U.S. Environmental technician for help. Protection Agency S P E C I F I C AT I O N S U B M I T TA L Page ®...
