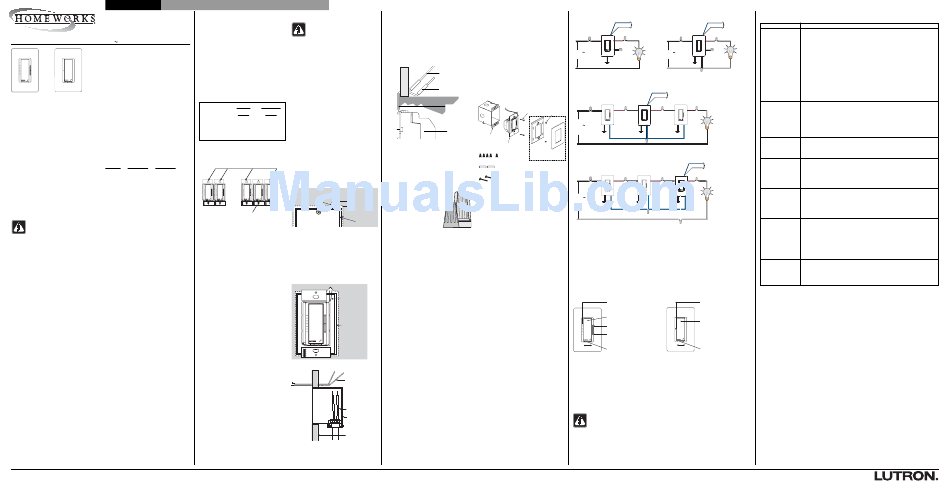

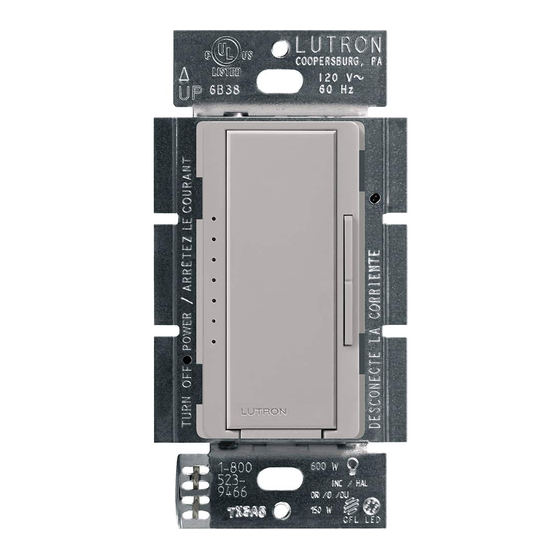

Designer-Style Wired Maestro
®
Dimmers
HWD-5NE, -6D, -6ND, -10D, -10ND
Switches
Installation Instructions
-8ANS
Please Read Before Installing 120 V 50/60Hz
Use -5NE with electronic (solid-state) low-
voltage transformers only. Not for use with
magnetic (core and coil) low-voltage trans-
formers.
Operation of a low-voltage circuit with
HWD-5NE
HWD-6D lamps inoperative or removed may result in
HWD-6ND
HWD-10D transformer overheating and premature fail-
HWD-8ANS
HWD-10ND
ure. Lutron strongly recommends the fol-
lowing:
a. Do not operate low-voltage circuits
without operative lamps in place.
b. Replace burned-out lamps as quickly
as possible.
c. Use transformers that incorporate
thermal protection or fused trans-
former primary windings to prevent
transformer failure due to overcurrent.
Important Notes
Load Specifications:
Codes: Install in accordance with all local
Control Min. Load Max. Load
and national electrical codes. Note:
Alternate wiring methods may be used for
-5NE 40 W/VA 500 W/VA
the Class 2 wiring connection. Provisions in
-6D 50 W/VA 600 W/VA
the 2002 National Electrical Code (Article
®
-10D 50 W/VA 1000 W/VA
725-54) allow Class 2 conductors of the
-6ND 10 W/VA 600 W/VA
HWD-5NE, -6D, 6ND, -10D, -10ND, and
-10ND 10 W/VA 1000 W/VA
-8ANS to occupy the same outlet box as
-8ANS 10 W/VA 8.0 A
the power conductors. Consult the National
Electrical Code Handbook and the local
® Wallplates: Lutron Claro and Satin
®
electrical inspector before proceeding.
Colors wallplates are recommended for
TM
best color match and aesthetic
Danger: These controls must not
be used to control equipment which appearance. Do not paint controls or
is not visible from every control wallplates.
location. They must also not be used to
Cleaning: To clean, wipe with a clean
control equipment which could create
hazardous situations such as entrapment if damp cloth. DO NOT use any chemical
operated accidentally. Examples of such cleaning solutions.
equipment which must not be operated by
Wallboxes: Lutron recommends using
these controls include (but are not limited
to) motorized gates, garage doors, industri- 3-1/2 in. (89 mm) deep wallboxes for easier
al doors, microwave ovens, heating pads, installation. Several controls may be
etc. It is the installer's responsibility to installed in one multigang wallbox - see
Derating Chart.
ensure that the equipment being controlled
is visible from every control location and
that only suitable equipment is connected Single Location Installations: When
to these controls. using controls in single location installa-
tions, cut off the uninsulated portion of the
Overheat Damage: To reduce the risk of control's multi-location wire (blue wire) and
overheating and possibly damaging other cap off using one of the provided wire con-
equipment, do not install to control recepta- nectors. DO NOT connect the blue wire to
cles or motor-operated appliances. any other wiring or to ground.
Environment: Ambient operating tempera- Remotes: Use only Lutron HomeWorks
ture: 0-40°C, 32-104°F, 0-90% humidity, Maestro Remote Dimmers (HD-RD) with
®
-5NE, -6D, -6ND, -10D, and -10ND
non-condensing. Indoor use only. It is nor-
controls. Use only Lutron HomeWorks
mal for dimmers and switches to feel warm
to the touch during operation. Maestro Remote Switches (HD-RS) with
-8ANS controls. Up to 9 HD-RD or HD-RS
controls may be used with a HomeWorks
Spacing: If mounting one control above
Maestro Dimmer or Switch. Mechanical 3-
another, leave at least 4-1/2 in. (114 mm)
vertical space between them. or 4-way switches will not work.
Lamp Type: -6D, -6ND, -10D and -10ND
are designed for use with permanently
installed incandescent, magnetic low-volt-
age, or tungsten halogen only. -5NE is
designed for use with permanently installed
incandescent or electronic low-voltage only.
-8ANS is designed for use with all perma-
nently installed lighting loads.
Low-Voltage Applications: Use -6D,
-6ND, -10D and -10ND with magnetic (core
and coil) low-voltage transformers only. Not
for use with electronic (solid-state) low-volt-
age transformers.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299 Made and printed in the U.S.A. 12/04 P/N 043-120 Rev. B 93-2605-01
Français Português
Multigang Installations Installation
Danger - Locate and remove fuse
In multigang installations, several controls
or lock circuit breaker in the OFF
are grouped horizontally in one multigang
position before proceeding.
wallbox.
• When combining controls in a wallbox,
derating is required; however, no derating
Short Circuit Check: Check new installa-
is required for Remotes.
tions for short circuits before installing con-
trol(s). With power OFF, install standard
Note: Controls do not have fins that need
switch(es) between hot and load. Restore
to be removed for multigang installations.
power. If lights don't work or a breaker
trips, check wiring. Correct wiring and
check again. Install control(s) only when
short is no longer present. Warranty is void
if control is turned ON with a shorted load.
Derating Chart
End of Middle of
Gang Gang
1. Turn power OFF at fusebox or circuit
400 W/VA
-5NE 450 W/VA
breaker.
-6D, -6ND 500 W/VA 400 W/VA
2. Using a sharp utility knife or drywall saw,
-10D, -10ND 800 W/VA 650 W/VA
create a notch (~1/4 in.) in the drywall
-8ANS 6.5 A 5.0 A
above the top right hand corner of the
wallbox (see Figure 1)
Note: This notch must be large enough
Control Location for Ganging
to allow the butt splices (included)
to pass through the wall, yet
End Of Gang
small enough to be covered when
the wallplate is installed.
Drywall
Notch
1/4 in. (6 mm) max.
Middle Of Gang
Wallbox
Prewire for System
Communications: Figure 1: Notch the Drywall
Controls have Class 2 remote-circuit wires
3. Pull Class 2 wires from outside of the
(gray, violet) that exit at the top of the con-
wallbox through the notch in the drywall
trol and connect to the HomeWorks
— do NOT run the Class 2 wires inside
Dimmer Hub (HWI-H48). Pull Class 2 wires
the wallbox (see Figure 2).
from each wallbox location that contains a
control to an HWI-H48. Use 18 to 22 AWG,
twisted, shielded, 2-conductor wire.
Dimmer communications wiring may be in
a daisy-chain, star, or t-tap configuration.
Each home run on a bus may be up to
500 ft. (152 m) and may contain up to 8
devices. The total length of wire on each
Class 2
bus (all home runs) may be up to 1000 ft.
Wiring from
(305 m). Up to 48 dimmer or switch
Control
devices may be wired to the HomeWorks
Dimmer Hub (HWI-H48).
Note: Class 2/PELV wires do not have
Wallbox
polarity. The daisy-chain wiring method is
recommended to allow for future upgrad-
ability.
Drywall
Front View
Class 2 Wiring
from HWI-H48
Power Wiring
Wallbox
Drywall
Side View
Figure 2: Class 2 Wire Installation
4. Crimp the violet and gray wires of the c. Tighten control mounting screws
control to the Class 2/PELV wires con- until wallplate adapter is flush to
nected to the HWI-H48. Use the butt wall (do not over-tighten).
splices provided (see Figure 3). Push the
d. Snap wallplate onto wallplate
Class 2/PELV wires and butt splices
adapter, and verify that control is
through the hole in the drywall. This pro-
not submerged.
vides the necessary separation required
e. If control is submerged, loosen
by the National Electrical Code .
®
mounting screws appropriately.
9. Restore power. Check for correct local
operation (see Dimmer Operation and
Switch Operation).
Class 2 Wiring to
HomeWorks Dimmer
Hub
Butt-Splice
Mounting Diagram
Wallplate
Control
Class 2/PELV Adapter
Mounting
Mounting
Control Wires (Run
Screws
Screws
outside of wallbox).
Yoke
Backcover
Wallbox
Figure 3: Class 2 Wire Connection
Included:
Control
Wire Connectors (4 or 5)
5. Prepare wires. When making wire con-
Wallplate/Adapter purchased
nections, follow the recommended strip
separately.
lengths and combinations for the sup-
Butt Splice Connectors (2)
plied wire connectors. Note: Wire con-
nectors provided are suitable for copper Mounting Screws (2)
wire only.
Small:
Strip insulation 3/8 in.
(10 mm) for 14 AWG
(2.5 mm 2 ). Strip insulation
1/2 in. (13 mm) for 16 AWG
(1.5 mm 2 ). Use to join one
14 AWG supply wire with
one 16 or 18 AWG
Small Large
(1.0 mm 2 ) control wire.
Large:
Strip insulation 1/2 in. (13 mm) for 10 AWG
(6 mm 2 ), 12 AWG (4 mm 2 ) or 14 AWG
(2.5 mm 2 ). Strip insulation 5/8 in. (16 mm)
for 16 AWG (1.5 mm 2 ) or 18 AWG
(1.0 mm 2 ). Use to join one or two 12 or 14
AWG supply wires with one 10, 12, 14, 16
or 18 AWG control wire.
6. Wire controls as follows:
Single location installation: See Wiring
Diagrams 1 and 2. When using power
boosters or interfaces, see Wiring
Diagrams in the HomeWorks Technical
Reference Guide (P/N 366-963).
Note: When using controls in single
location installations, cut off the unin-
sulated portion of the control's multi-
location wire (blue wire) and cap off
using one of the provided wire con-
nectors. DO NOT connect the blue
wire to any other wiring or to ground.
Multi-location installation: See Wiring
Diagrams 3 and 4. When using power
boosters or interfaces, see Wiring
Diagrams in the HomeWorks Technical
Reference Guide (P/N 366-963). Up to
nine HD-RD or HD-RS remotes may be
connected to the -5NE, -6D, -6ND,
-10D, -10ND, or -8ANS controls.
7. Push all wires back into the wallbox and
loosely fasten the control to the wallbox
using the control mounting screws pro-
vided. Do not pinch the wires.
8. Attach Lutron Claro or Satin Colors
wallplate adapter and wallplate.
a. Loosely install control mounting
screws.
b. Tighten wallplate adapter mounting
screws snug.
Wiring Diagram 1 Wiring Diagram 2
Single Location Installation Single Location Installation with Neutral
-6D, -10D -5NE, -6ND, -10ND, -8ANS
To HomeWorks
To HomeWorks
Dimmer Hub (H48) or Dimmer Hub (H48) or
next Maestro Dimmer/ next Maestro
Dimmer
Dimmer/Switch Switch Dimmer/Switch
Red or
Hot/Live Black
Red Hot/Live Black Yellow
Blue
Blue Lighting
Lighting
Cap Off*
120 V 120 V Cap Off* Load
Load
50/60Hz 50/60Hz
Green
Green
White
Neutral
Neutral
* When using controls in single location installations, cut off the uninsulated portion of the control's multi-location wire (blue wire) and cap off using one of the
provided wire connectors. DO NOT connect the blue wire to any other wiring or to ground.
Wiring Diagram 3
Multi-Location Installation 1
To HomeWorks Dimmer Hub (H48) or
-6D, -10D with HD-RD next Maestro Dimmer/Switch
Remote Dimmer Dimmer Remote Dimmer
Hot Black Red Black Red Black Red
Lighting
Load
120 V
Green Blue Green Blue Green Blue
50/60Hz
Neutral
Wiring Diagram 4
Multi-Location Installation with Neutral 1, 2
-5NE, -6ND, -10ND with HD-RD, -8ANS with HD-RS
To HomeWorks Dimmer Hub (H48) or
next Maestro Dimmer/Switch
Remote Remote Dimmer/
Dimmer/Switch Dimmer/Switch Switch
Red or
Hot Black Red Black Red Black Yellow
Lighting
Load
120 V Green Blue
Green Blue Green Blue
50/60Hz
White
Neutral
1
Up to 9 HomeWorks Maestro Remote Dimmers/Switches may be connected to the HomeWorks Wired
Maestro Dimmer/Switch. Total Blue wire length may be up to 250 ft. (76 m).
2
Neutral wire Dimmers/Switches must be connected on the Lighting Load side of a multi-location instal-
lation.
Dimmer Operation Switch Operation
Status LEDs Status LED
(Dimmer only) (Switch only)
Indicate light level; glow softly as
Indicates light status; glows softly as
night light when light is off night light when light is off
Tapswitch
Tap on/off
Dimming Rocker Tapswitch
Tap on/off
Press to Brighten
Press to Dim
OFF ON OFF ON
FASS
TM FASS
Front Front
Accessible Accessible
Service
Service
Switch Switch
Lamp Replacement
For routine lamp replacement, remove power from the fixture(s) by sliding the Front-
Accessible Service Switch (FASS) to the OFF position (left). After replacing lamps, slide the
FASS back to the ON position (right) to restore power.
Danger - For any procedure other than routine lamp replacement, power must be
disconnected at the main electrical panel.
Troubleshooting Guide
Symptom Cause and Action
No lights at all Power not present
• Circuit breaker OFF or tripped. Perform Short Circuit Check.
• FASS in the OFF position. Move FASS to the ON position by sliding it to the
right. Check both the dimmer/switch and all of the remote dimmers/switches.
Wiring
• Wires shorted. Make sure the blue wires are not grounded or shorted to any
other wires.
• Wiring error. Check wiring to be sure it agrees with installation instructions
and wiring diagrams.
Lamps burned out
• Replace lamps.
Dioded lamps
• If dioded lamps are being used, replace with non-dioded lamps.
Lights turn ON when Wiring
Tapswitch is pressed,
• Wiring error. Check wiring to be sure it agrees with installation instructions
then turn OFF and wiring diagrams.
Tapswitch stuck
• Tapswitch stuck at another location. Check to see that tapswitches are not
sticking for all control locations in the circuit.
Light turns ON and Load is less than minimum load requirement
OFF continuously
• Make sure the connected load meets the appropriate minimum load require-
ment for that control. See Load Specifications.
Lights don't switch Wiring
ON/OFF when
• Wires shorted. Make sure the blue wires are not grounded or shorted to any
Tapswitch is pressed
other wires.
• Wiring error. Check wiring to be sure it agrees with installation instructions
and wiring diagrams.
Lights don't switch Wiring
ON/OFF when HD-RD
• Wires shorted. Make sure the blue wires are not grounded or shorted to any
or HD-RS Tapswitch
other wires.
is pressed
• Wiring error. Check wiring to be sure it agrees with installation instructions
and wiring diagrams.
Lights don't switch
Improper programming
ON/OFF from Keypad
• Check programming in HomeWorks Utility.
Wiring
• Wires shorted. Make sure the blue wires are not grounded or shorted to any
other wires.
• Wiring error. Check wiring to be sure it agrees with installation instructions
and wiring diagrams.
Wallplate is warm Solid-state control dissipation
• Solid-state dimmers and switches internally dissipate about 2% of the total
connected load. It is normal for dimmers and switches to feel warm to the
touch during operation.
LIMITED WARRANTY
Lutron will, at its option, repair or replace any unit that is defective in materials
or manufacture within two years after purchase. For warranty service, return
unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA
18036-1299, postage pre-paid. Telephone the Lutron Technical Support
Center toll free at 800-523-9466. After the two year period, a pro-rated war-
ranty applies to this product until eight years after the purchase. For more
information regarding this warranty contact your Lutron representative.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO
TWO YEARS FROM PURCHASE. THIS WARRANTY DOES NOT COVER
THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION, OR
DAMAGE RESULTING FROM MISUSE, ABUSE, OR IMPROPER OR
INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR
CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM
FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MAN-
UFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT
SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other
Technical and Sales Assistance rights which vary from state to state. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to
If you need assistance, call the toll-free Lutron you. Some states do not allow the exclusion or limitation of incidental or con-
sequential damages, so the above limitation or exclusion may not apply to you.
Technical Support Center. Please provide exact
These products may be covered under one or more of the following U.S.
model number when calling. patents: 4,835,343; 4,889,999; 4,954,768; 5,038,081; 5,170,068; 5,237,207;
+1.800.523.9466 (U.S.A., Canada and the 5,248,919; 5,399,940; 5,510,679; 5,637,930; 5,736,965; 5,798,581;
5,838,226; 5,848,054; 5,905,442; 5,982,103; D353,798 and corresponding
Caribbean)
foreign patents. U.S. and foreign patents pending. Lutron, Claro, Maestro
Other countries call:
and HomeWorks are registered trademarks and Satin Colors, FASS and the
Tel: +1.610.282.3800 HomeWorks Logo are trademarks of Lutron Electronics Co., Inc. National
Electrical Code is a registered trademark of the National Fire Protection
Fax: +1.610.282.3090
Association, Quincy, Massachusetts.
Visit our Web site at www.lutron.com
© 2004 Lutron Electronics Co., Inc.
