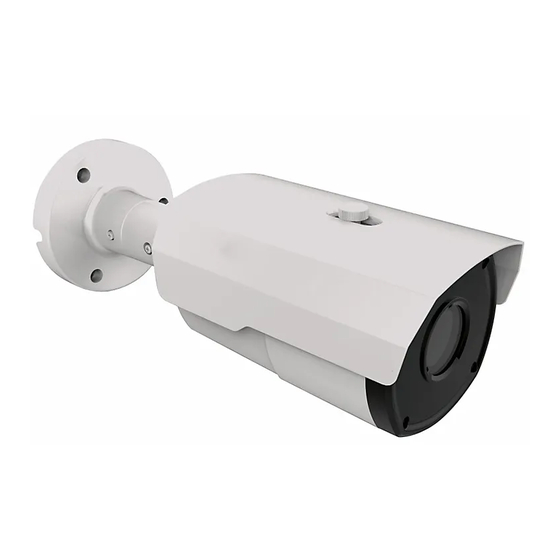

- Page 1 User Manual 1/2.7" HD Camera / Dome, Day&Night, 2592x1944, Infrared, IP66 MEB-65M2713M0A MED-55F0036M0A MED-65M2713MBA...
- Page 2 REGULATORY INFORMATION FCC COMPLIANCE STATEMENT FCC Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 SAFETY INSTRUCTIONS These instructions are intended to ensure that users can use the product correctly to avoid any danger or property loss. Warnings: Serious injury or death may happen if any of the warnings are ignored. Cautions: Injury or equipment damage may happen if any of the cautions are ignored. Warnings: Cautions: Follow these precautions to avoid Follow these instructions to...
- Page 4 Safety Instruction 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings and cautions. 4. Follow all instructions. 5. Clean only with dry cloth. 6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
-
Page 5: Table Of Contents
Table of Contents 1 Introduction ............................5 1.1 Features ............................ 5 1.2 Camera Overview ........................5 2 Installation and Configuration ......................6 2.1 Package Contents ........................6 2.2 Installation ..........................6 2.2.1 VF Bullet Camera ......................6 2.2.2 VF Turret Camera ......................7 2.2.3 Fixed Turret Camera ...................... -
Page 6: Introduction
1 Introduction Thanks for purchasing our analogue HD product. The series of cameras are applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, oil station, underground parking lot, bar etc. Statement: Some information contained in this manual may differ from the actual product. We will make every effort to ensure correctness of the information contained in this manual, which may be subject to change from time to time without prior notice. -
Page 7: Installation And Configuration
Note: Press in different direction and hold the Joystick of camera for 3 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI and CVBS under the fixed mode. UP: stands for AHD mode Down: stands for CVBS mode L: stands for TVI mode R: stands for CVI mode... -
Page 8: Vf Turret Camera
Adjust the camera angle and tighten Power-on the camera to check the body of camera whether the image on the monitor is available from the optimum angle. If Connect the corresponding power not, use “L” wrench to adjust the cord and video cable. camera to the optimum angle. -
Page 9: Fixed Turret Camera
Base Screw Main Body Enclosure Trim Ring Pic. 10 Pic. 9 2.2.3 Fixed Turret Camera Paste the template sheet in place at the Remove the enclosure off the camera by proper position shown as Pic 11. rotating it down shown as Pic 12. Locking Screw Enclosure Template sheet... -
Page 10: Connections
2.3 Connections Connector Description DC Jack Camera Power BNC Jack Video Out • Connecting Video Output connector Connect the video output (BNC) connector to the video input. • Connecting the Power Connect power of 12VDC for the camera. When using a 12VDC adapter, connect the positive (+) pole to the ‗+‘... - Page 11 Fixed Mode EXPOSURE: describes the brightness-related parameters which can be adjusted by Shutter, AGC, Brightness, D-WDR and Backlight etc. Shutter: increase the exposure time on a single frame which makes a camera more sensitive to the light. so it can produce images even in low lux conditions. Fixed camera will show the parameters as the <Auto>, <1/30>, <FLK>, <1/240>, <1/480>, <1/1000>,<...
- Page 12 DAY & NIGHT: COLOR, B/W and EXT, are selectable for DAY/NIGHT switch. COLOR: The image is colored in day mode all the time B/W: The image is black and white all the time, and the IR led turns on in the poor light conditions.
-
Page 13: Osd Menu Operation
DPC (Defective Pixel Correction): Defective pixels are pixels in a CMOS image sensor, which fail to sense light levels correctly. The series of camera supports defective pixel correction. You can set the DPC as <Live DPC> and <White DPC>. ... - Page 14 4. Go to Live view interface and left-click the bottom on the specific live channel, then select the PTZ control icon 【 】 to pop up the following interface shown as Pic 16 】to go to hybrid HD camera OSD menu. This 5.
-
Page 15: Appendix
3 Appendix 3.1 Specification Bullet Camera MEB-65M2713M0A Model no. product description 01 1/2.7" HD Camera, Day&Night, product description 02 2592（H）×1944（V）, Infrared, product description 03 2,7-13,5mm, 12VDC, IP66 Technical requirements System True Day&Night Camera type Bullet Video standard PAL/NTSC Signal format... - Page 16 Turret Camera MED-65M2713MBA MED-55F0036M0A Model product description 01 1/2,7" HD Dome, Varifocal, 1/2,7" HD Dome, Fix, Day&Night, 2592 （H） ×1944 （V） , 3.6mm, product description 02 Day&Night, 2592（H）×1944（V）, Infrared product description 03 2,7-13mm, 12VDC, IP66 Infrared, 12VDC, IP66 Technical requirements Camera type Dome Dome...
- Page 17 VIDEOR E. Hartig GmbH Exclusive distribution through special- ised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
