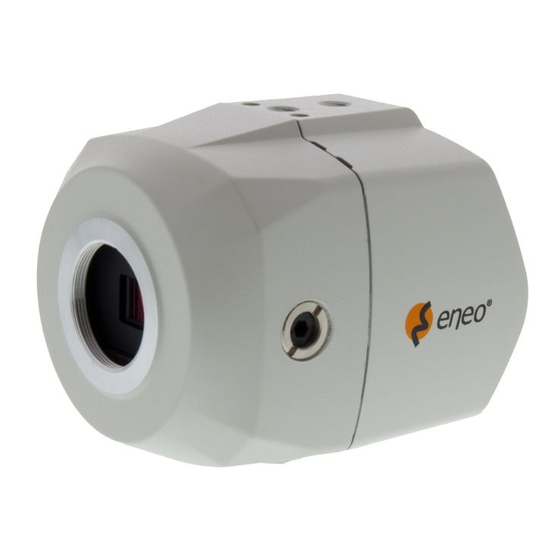

- Page 1 User Manual 1/2.8” HD Camera, Day&Night, 1920x1080, D-WDR, C/CS, 12VDC MEC-52C0000M0A...
-
Page 3: Safety Precaution
ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 4 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
ULTRA CLEAR RESOLUTION CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09 Installation Instructions p.10~27 Operating Instructions p.28 Specifications... -
Page 6: Features
ULTRA CLEAR RESOLUTION CAMERA Features Key Features • 1/2.8” SONY Exmor CMOS sensor • 1080P TVI mode, CVI mode, AHD Video or 960H CVBS Video Selectable • TVI mode/CVI mode/AHD Video Transmission Distance over Coax.; 500M • CS lens mount supported •... -
Page 7: Composition
ULTRA CLEAR RESOLUTION CAMERA Composition Dust Protection C-mount Cap (1pc) adaptor (Option) Box Camera Torque Wrench: Operating 3mm (1pc) Instruction Dimensions (unit : mm) -
Page 8: Part Names
ULTRA CLEAR RESOLUTION CAMERA Part Names Mount Holes Rear Case (Top / Bottom) Front Case Dust Protection Cap Torque Wrench PIN 4 PIN 2 Lens Connector for Auto Iris lenses Back focus DC Iris adjustment Damp(-) Damp(+) Drive(+) PIN 3 PIN 1 REAR VIEW ①... -
Page 9: Installation Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First connect the low voltage (DC12V or AC24V), then plug the DC or AC adapter to DC or AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load. -
Page 10: Operating Instructions
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using OSD Control Controller Setup menu can be accessed and controlled by OSD control joystick on the rear of the camera unit. Five commands are available with the joystick. The design of OSD could be different according to the Models. ■... - Page 11 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions ■ JOYSTICK setting Switching video format is available by Video format joystick. If you want to set the HD video format, set the DIP Switch to HD mode first. Then set the one of HD Video format by joystick. The default setting is TVI mode. 1] TVI mode (Up▲) : Moving up direction for about 3 seconds to TVI mode.
- Page 12 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Table MAIN MENU SUB MENU CONFIGURATION MODE INDOOR, OUTDOOR LENS IRIS SPEED MANUAL FOCUS ASSIST DN DWELL SHUTTER FLK, 1/60(1/50), 1/30(1/25), AUTO, x30~x2, 1/50000~1/200 EXPOSURE 0~15 SENS UP OFF, AUTO (2x~30x) BRIGHTNESS 1~100 D-WDR ON(LEVEL:0~8), AUTO, OFF...
- Page 13 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions MOTION DEFAULT SELECT AREA1~4 PRIVACY OFF, ON SPECIAL DISPLAY COLOR, INV, MOSAIC COLOR White, User, Cyan, Green, Yellow, Blue, Red, Black 0.25~1.00 TRANS DEFAULT LANGUAGE ENG, TUR, NED, POR, RUS, POL, SPA, ITA, FRA, GER, CHN1/CHN2 DEFECT LIVE DPC...
- Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Setup 1. LENS (default: DC) Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed DC LENS MODE OUTDOOR MODE 1.
- Page 15 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions FOCUS ASSIST 1. DN DWELL 5 SEC 2. RETURN ADJUST ZOOM & FOCUS ON LENS FOR DAY & NIGHT WHILE SWITCHINGS 2-1. DN DWELL : ICR switcher switches DAY & NIGHT at the interval of D/N DWELL to help the EXACT NIDDLE focus at DAY and NIGHT mode.
- Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 3-2. AGC : AGC(0~15) amplifies the video gain for brighter video but noise and white pixel accordingly. AGC level less than 10 disables AUTO in DAY/NIGHT. 3-3. SENS-UP : The brighter video can be obtained by increasing the exposure time in the night with SENS-UP.
- Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 4. BACKLIGHT : Cuts out the highlight area with black mask and excludes it from compensation. It has target areas for compensation and each area can be set LEVEL, MODE, and DISPLAY. HS BLC 1.
- Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5. WHITE BALANCE (default: ATW) ATW, AWB, OUTDOOR, INDOOR, AWC->SET, and MANUAL are available for the white balance modes. 5-1. ATW (Auto Trace White balance) : Automatically tracks the changes of color temperature and continuously adjusts the white balance.
- Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-1. AUTO (AGC/CDS) Used when DAY or NIGHT is determined by light level through the lens and DAY from/to NIGHT is switched automatically by the scene brightness. It can be controlled the threshold level and delay time. 6-1-1.
- Page 20 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-4. COLOR The camera is always in COLOR mode. Forcibly DAY/NIGHT is disabled and outputs color video. 7. NR (Noise Reduction) NR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Sets 2DNR or 3DNR level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames (HD format only).
- Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions CAM TITLE 8-1. CAM TITLE : Camera title(name) can be set and edited up to 15 alpha numeric and symbolic characters. ▲,▼,◀,▶ POS END moves the cursor and choose a — — — — — — — — — — — — — — — character to select it.
- Page 22 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions MOTION 1. SELECT AREA1 2. DISPLAY 3. SENSITIVITY llllllllllllllllllllll 4. COLOR GREEN 5. TRANS 1.00 6. ALARM 7. DEFAULT 8. RETURN 8-3-1. SELECT : Selects one of 4 areas. 8-3-2. DISPLAY : Displays ON/OFF the motion area which you selected. It can be adjusted position and size.
- Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • VIEW TYPE: Selects display type for motion detection. > ALL - Enables to display types both of OUTLINE and BLOCK, if motion is detected. > OUTLINE - Enables to display box shape, if motion is detected. >...
- Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-5. LANGUAGE 12 languages are available for OSD menu. ENG, TUR, NED, POR, RUS, POL, SPA, ITA, FRA, GER, CHN2, CHN1. Choose one prefered language and enter the ‘SET’ key. 8-6. DEFECT : Detects and compensates the defective pixels. Once CALIBRATE is selected, the pixel calibration is initiated with lens closed and can’t cancel.
- Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-6-3. BLACK DPC : Setting for white defective pixels. • POS/SIZE: Adjusts DPC AREA window size and position. • START : Starts up detecting and compensation. • DPC VIEW: Shows the original defective pixels if set to ON •...
- Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 9-1-1. LEVEL : Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object. 9-1-2. START AGC : Defines the AGC level to start up for sharpness 9-1-3.
- Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 9-3. LSC (Lens Shade Compensation) : Enhances the brightness at the corners caused by the lens or the narrow emitting angle of IR LEDs. Picture could be noisy if it is ON. When relatively picture looks noisy, please set it to OFF.
-
Page 28: Specifications
ULTRA CLEAR RESOLUTION CAMERA Specifications MEC-52C0000M0A ITEM Imaging Sensor 1/2.8" Sony 2M pixel Bayer CMOS sensor Effective Pixels 1920(H) x 1080(V) x 25p Scan Frequency HD] 25Hz(V), 18.75Khz(H) / Progressive CVBS] 50Hz(V), 15.625Khz(H) / 2:1 Interlace Electronic Iris 1/25~1/50,000sec Video Format... - Page 32 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
