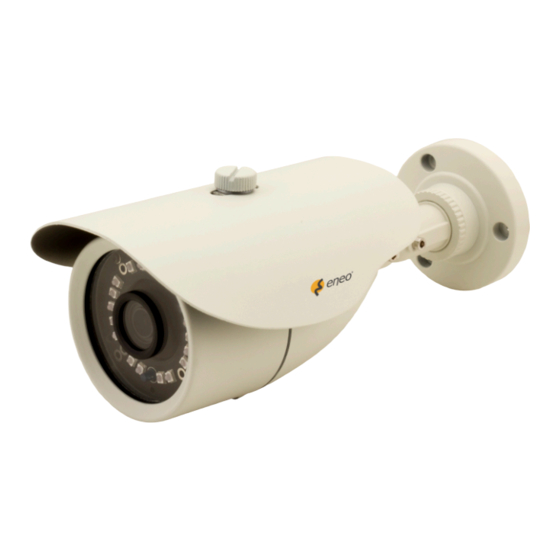

1/2.9"hd camera, multisignal,day&night, 1920x1080, infrared, 12vdc, ip66
Hide thumbs

Advertisement

Quick Links

Download this manual
EN
User Manual
1/2.9" HD Camera, Multisignal,
Day&Night, 1920x1080,
Infrared, 12VDC, IP66
MEB-62V2812M0A
MEB-52F0036M0A
MED-52F0036MBA
MEB-62V2812MBA

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEB-62V2812M0A and is the answer not in the manual?

Questions and answers

Related Manuals for Eneo MEB-62V2812M0A

Summary of Contents for Eneo MEB-62V2812M0A

  • Page 1 User Manual 1/2.9" HD Camera, Multisignal, Day&Night, 1920x1080, Infrared, 12VDC, IP66 MEB-62V2812M0A MEB-52F0036M0A MED-52F0036MBA MEB-62V2812MBA...

  • Page 2: About This Document

    Operation Guide Contents About This Document Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 3: Table Of Contents

    Operation Guide Contents Contents About This Document ........................ii 1 MEB-62V2812M0A / MEB-52F0036M0A ................. iv 2 MED-52F0036MBA / MED-62V2812MBA ................vi 3 OSD Main Menu ........................... 1 4 OSD Setting ........................... 3...

  • Page 4: Meb-62V2812M0A / Meb-52F0036M0A

    Operation Guide Contents MEB-62V2812M0A / MEB-52F0036M0A Parts supplied...
  • Page 5 Operation Guide Contents Installation 1. Remove sun shield from camera to aid simpler installation (optional requirement). 2. Use drill template (D) as to guide to drill and attach camera to surface as required. Holes on bracket are 120 degree apart, so three holes are required. 3.

  • Page 6: Med-52F0036Mba / Med-62V2812Mba

    Operation Guide Contents MED-52F0036MBA / MED-62V2812MBA Parts supplied...
  • Page 7 Operation Guide Contents Installation Use supplied template to drill holes for (A) plugs Remove locking cover using supplied (C) L-key. Optional requirement ttach base part to surface with (B) screws. Use conduit if required. Re-attach Cover and position camera then lock cover screws with L-Key. Adjust the zoom &...

  • Page 8: Osd Main Menu

    Operation Guide 3 OSD Main Menu OSD Main Menu 3.1 Procedure 3.1.1 Camera Control Using Five Buttons If your camera has four arrow buttons and one SET button, you can use the buttons to operate the OSD main menu. Figure 1-2 shows the five buttons. Figure 3-1 Five-button layout The buttons have the following functions: ...
  • Page 9 Operation Guide 3 OSD Main Menu ----End 3.2 OSD Main Menu Interface The OSD main menu interface includes LENS, EXPOSURE, BACKLIGHT, WHITE BAL, DAY&NIGHT, NR, SPECIAL, and ADJUST, as shown in Figure 1-3. Figure 3-2 OSD main menu interface ----End...

  • Page 10: Osd Setting

    Operation Guide 4 OSD Setting OSD Setting 4.1 LENS You can set LENS to MANUAL or DC. Procedure Step 1 Press the UP or DOWN button to select LENS. Step 2 Press the LEFT or RIGHT button to set LENS to MANUAL or DC. The default value is MANUAL.
  • Page 11 Operation Guide 4 OSD Setting Figure 4-1 EXPOSURE interface Step 1 Set exposure parameters. Table 2-1 lists the exposure parameters. Table 4-1 Exposure parameters Parameter Meaning Setup This parameter is used to adjust SHUTTER [Setting method] shutter manually for the desired Press the LEFT or RIGHT image brightness.
  • Page 12 Operation Guide 4 OSD Setting Parameter Meaning Setup BRIGHTNESS This parameter is used to adjust [Setting method] image brightness. Press the LEFT or RIGHT Value range: 0–100 button. [Default value] D-WDR Overexposure or missing dark [Setting method] details may occur when areas of low Press the LEFT or RIGHT brightness and high brightness button.
  • Page 13 Operation Guide 4 OSD Setting Figure 4-2 HSBLC interface ----End Procedure Step 1 Press the UP or DOWN button to select SELECT, and press the LEFT or RIGHT button to select the desired area. Step 2 Press the UP or DOWN button to select DISPLAY, and press the LEFT or RIGHT button to set this parameter to ON or OFF.
  • Page 14 Operation Guide 4 OSD Setting When POSITION is displayed, press the UP, DOWN, LEFT, and RIGHT buttons to set the position of the area. Then press the OK button to complete the setting. Press the OK button. When SIZE is displayed, press the UP, DOWN, LEFT, and RIGHT buttons to set the size of the area.
  • Page 15 Operation Guide 4 OSD Setting 4.3.2 BLC You can select BLC to enable backlight compensation to make the target look clearer when the background is too dark. Set BACKLIGHT to BLC and press the OK button to open the BLC interface, as shown in Figure 2-5.
  • Page 16 Operation Guide 4 OSD Setting Figure 4-6 Area setup interface BLC area setup is the same as HSBLC area setup. For details, see "Step 2 of section 2.3.1 HSBLC." 4.4 WHITE BAL White balance is intended to reproduce the actual colors of the observed scene when the illuminance and color temperature of the target object are changed.
  • Page 17 Operation Guide 4 OSD Setting Figure 4-7 MANUAL WB interface 1. Press the UP or DOWN button to select BLUE, and press the LEFT or RIGHT button to set this parameter. 2. Press the UP or DOWN button to select RED, and press the LEFT or RIGHT button to set this parameter.
  • Page 18 Operation Guide 4 OSD Setting Figure 4-8 D&N EXT interface Procedure Step 1 Press the UP or DOWN button to select D->N (DELAY), and press the LEFT or RIGHT button to set this parameter. Step 2 Press the UP or DOWN button to select N->D (DELAY), and press the LEFT or RIGHT button to set this parameter.
  • Page 19 Operation Guide 4 OSD Setting Figure 4-9 B/W interface WHITE BAL is unavailable when Day &Night is set to B/W. Procedure Step 1 Press the UP or DOWN button to select BURST, and press the LEFT or RIGHT button to set this parameter to ON or OFF.
  • Page 20 Operation Guide 4 OSD Setting Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to set this parameter. Press the UP or DOWN button to select AREA, and press the OK button to open the area setup interface, as shown in Figure 2-11.
  • Page 21 Operation Guide 4 OSD Setting Figure 4-12 D&N AUTO interface Procedure Step 1 Press the UP or DOWN button to select D->N (AGC), and press the LEFT or RIGHT button to set this parameter. Step 2 Press the UP or DOWN button to select D->N (DELAY), and press the LEFT or RIGHT button to set this parameter.
  • Page 22 Operation Guide 4 OSD Setting Figure 4-13 NR interface Procedure Step 1 Press the UP or DOWN button to select 2DNR, and press the LEFT or RIGHT button to set this parameter. Step 2 Press the UP or DOWN button to select 3DNR, and press the LEFT or RIGHT button to set this parameter.
  • Page 23 Operation Guide 4 OSD Setting Figure 4-14 SPECIAL interface 2.7.1 CAM TITLE Press the UP or DOWN button to select CAM TITLE, and press the LEFT or RIGHT button to set this parameter to ON or OFF. When CAM TITLE is set to ON, you can set the camera title. Press the OK button to open the CAM TITLE interface.
  • Page 24 Operation Guide 4 OSD Setting : Press this button to move the cursor to the previous character. Press the UP, DOWN, LEFT, and RIGHT buttons to select , and press the OK button to move the cursor backward by one character. If you press the OK button again, the cursor continues to move backward by one character.
  • Page 25 Operation Guide 4 OSD Setting Figure 4-16 D-EFFECT interface Procedure Step 1 Press the UP or DOWN button to select FREEZE, and press the LEFT or RIGHT button to set this parameter to ON or OFF. The default value is OFF. Step 2 Press the UP or DOWN button to select MIRROR, and press the LEFT or RIGHT button to set this parameter.
  • Page 26 Operation Guide 4 OSD Setting Figure 4-17 MOTION interface Procedure Step 1 Press the UP or DOWN button to select SELECT, and press the LEFT or RIGHT button to select the desired area. Step 2 Press the UP or DOWN button to select DISPLAY, and press the LEFT or RIGHT button to set this parameter to ON or OFF.
  • Page 27 Operation Guide 4 OSD Setting Motion area setup is the same as HSBLC area setup. For details, see "Step 2 of section 2.3.1 "HSBLC." Step 3 Press the UP or DOWN button to select SENSITIVITY, and press the LEFT or RIGHT button to set this parameter.
  • Page 28 Operation Guide 4 OSD Setting 4.7.4 PRIVACY Press the UP or DOWN button to select PRIVACY, and press the LEFT or RIGHT button to set this parameter to ON or OFF. Set PRIVACY to ON and press the OK button to open the PRIVACY interface, as shown in Figure 2-20.
  • Page 29 Operation Guide 4 OSD Setting Figure 4-21 Area setup interface. Privacy area setup is the same as HSBLC area setup. For details, see Step 2 of section 2.3.1 "HSBLC." Step 3 Press the UP or DOWN button to select COLOR, and press the LEFT or RIGHT button to set this parameter.
  • Page 30 Operation Guide 4 OSD Setting Figure 4-22 DEFECT interface The parameters on the DEFECT interface are set to the optimal default values and do not need to be modified. 4.7.6.1 LIVE DPC The LIVE DPC parameter indicates real-time defect pixel compensation. Only white defect pixels can be compensated, whereas black defect pixels cannot be compensated.
  • Page 31 Operation Guide 4 OSD Setting Procedure Step 1 Press the UP or DOWN button to select AGC LEVEL, and press the LEFT or RIGHT button to set this parameter. Step 2 Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to set this parameter.
  • Page 32 Operation Guide 4 OSD Setting Figure 4-25 POS/SIZE interface Step 2 Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to set this parameter. Step 3 Press the UP or DOWN button to select RETURN, and press the OK button to return to the DEFECT interface.
  • Page 33 Operation Guide 4 OSD Setting Procedure Step 1 Press the UP or DOWN button to select POS/SIZE, and press the OK button to open the POS/SIZE interface, as shown in Figure 2-27. Figure 4-27 POS/SIZE interface Step 2 Press the UP or DOWN button to select START, and press the OK button to open the START interface to set compensation, as shown in Figure 2-28.
  • Page 34 Operation Guide 4 OSD Setting Step 5 Press the UP or DOWN button to select RETURN, and press the OK button to return to the DEFECT interface. ----End 4.7.7 RS485 Press the UP or DOWN button to select RS485, and press the OK button to open the RS485 interface, as shown in Figure 2-29.
  • Page 35 Operation Guide 4 OSD Setting 4.7.8 ADJUST Press the UP or DOWN button to select ADJUST, and press the OK button to open the ADJUST interface, as shown in Figure 2-30. Figure 4-30 ADJUST interface Procedure Step 1 Press the UP or DOWN button to select SHARPNESS, and press the OK button to open the SHARPNESS interface, as shown in Figure 2-31.
  • Page 36 Operation Guide 4 OSD Setting Press the UP or DOWN button to select LEVEL, and press the LEFT or RIGHT button to set this parameter. Press the UP or DOWN button to select START AGC, and press the LEFT or RIGHT button to set this parameter.
  • Page 37 Operation Guide 4 OSD Setting 4.7.9 EXIT Press the UP or DOWN button to select EXIT, and press the LEFT or RIGHT button to set this parameter. SAVE&END: Save settings, exit the OSD setup interface, and return to the camera's real-time video interface.
  • Page 38 Operation Guide 4 OSD Setting...
  • Page 39 Operation Guide 4 OSD Setting...
  • Page 40 Videor E. Hartig GmbH Exclusive distribution through special- ised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 Technical changes reserved 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 © Copyright by Videor E. Hartig...

This manual is also suitable for:

Meb-52f0036m0aMeb-62v2812mbaMed-52f0036mba
