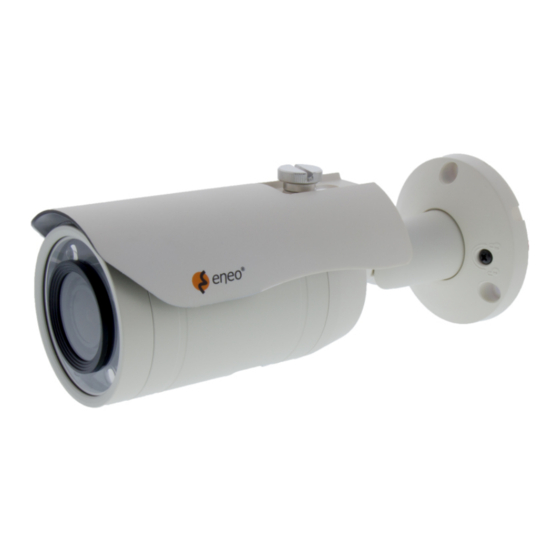

- Page 1 User Manual 1/2.8” HD , Day&Night, 1920x1080, Infrared, IP66 MEB-62F0036P0A MEB-62V2812P0B...
-
Page 3: Safety Precaution
ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
ULTRA CLEAR RESOLUTION CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.07 Dimensions p.08 Part Names p.09~10 Installation Instructions p.11~28 Operating Instructions p.29~30 Specifications... -
Page 6: Features
• Lens > MEB-62V2812P0B : f=2.8~12mm F1.3 Mega pixel DC Auto Iris Vari-focal lens > MEB-62F0036P0A : f=3.6mm F2.0, Mega pixel fixed lens • Sensitivity of Color 0.3 Lux / BW 0.005 Lux (@IRE 40, Sens-up On, IR Off) • D-WDR (Wide Dynamic Range) •... -
Page 7: Composition
ULTRA CLEAR RESOLUTION CAMERA Composition Camera Mounting Operating Template Instruction Plastic Anchor: 6 x 30mm (3pcs) Mounting Screw: 3.5 x 25mm (3pcs) Video Sub-out Cable Dimensions (unit : mm) Ø78.5 Ø66... -
Page 8: Part Names
ULTRA CLEAR RESOLUTION CAMERA Part Names SUNSHIELD BOLT SUNSHIELD POWER Cable DUAL WINDOW BRACKET REAR CASE FRONT CASE Case open ■ Focus/Zoom Adjustment (MEB-62V2812P0B) Focus Lever Zoom Lever CAUTION • Extreme care should be taken NOT to scratch the surface of window while the camera installing or adjusting. -
Page 9: Installation Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Route the Power cable to the connecting place. 3. Place the camera bracket on pre-drilled position and fix it through using mounting screws. - Page 10 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 90° 90° • on the wall • on the ceiling 3) Inclination limit (Horizontal image alignment): Inclination limited to +/-90° max. ±90° [ TIP ] Adjustment of viewing angle with 3-Axis bracket. • Unlock the Lock/Unlock screw on the camera bracket using the driver. •...
-
Page 11: Operating Instructions
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Power Supply Connections VIDEO (BNC) Camera can be operated with the regulated or unregulated DC12V but the regulated power supply of DC12V is recommended. Camera is protected from the damage by the reverse connection of polarity. POWER ( Using OSD Control Controller Setup menu can be accessed and controlled by OSD control joy stick inside of... - Page 12 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using Video Format Switch ■ DIP SWITCH setting The DIP SWITCH setting has first priority. If the switch is set to CVBS, only CVBS output is available for both main video output and sub-out. Please be advised that camera generates only one video output for both main video output and sub-out.
- Page 13 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Table MAIN MENU SUB MENU CONFIGURATION INDOOR, OUTDOOR MODE LENS IRIS SPEED MANUAL FOCUS ASSIST DN DWELL SHUTTER FLK, 1/60(1/50), 1/30(1/25), AUTO, x30~x2, 1/50000~1/200 EXPOSURE 0~15 SENS UP OFF, AUTO (2x~30x) BRIGHTNESS 1~100 D-WDR ON(LEVEL:0~8), AUTO, OFF...
- Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions MOTION DEFAULT SPECIAL SELECT AREA1~4 PRIVACY OFF, ON DISPLAY COLOR, INV, MOSAIC COLOR White, User, Cyan, Green, Yellow, Blue, Red, Black 0.25~1.00 TRANS DEFAULT LANGUAGE ENG, TUR, NED, POR, RUS, POL, SPA, ITA, FRA, GER, CHN1/CHN2 DEFECT LIVE DPC AGC LEVEL(0~255), LEVEL(0~100)
- Page 15 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Setup 1. LENS (default: DC) Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed DC LENS MODE OUTDOOR MODE 1.
- Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions FOCUS ASSIST 1. DN DWELL 5 SEC 2. RETURN ADJUST ZOOM & FOCUS ON LENS FOR DAY & NIGHT WHILE SWITCHINGS 2-1. DN DWELL : ICR switcher switches DAY & NIGHT at the interval of D/N DWELL to help the EXACT NIDDLE focus at DAY and NIGHT mode.
- Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 3-2. AGC : AGC(0~15) amplifies the video gain for brighter video but noise and white pixel accordingly. AGC level less than 10 disables AUTO in DAY/NIGHT. 3-3. SENS-UP : The brighter video can be obtained by increasing the exposure time in the night with SENS-UP.
- Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 4. BACKLIGHT : Cuts out the highlight area with black mask and excludes it from compensation. It has target areas for compensation and each area can be set LEVEL, MODE, and DISPLAY. HS BLC 1.
- Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5. WHITE BALANCE (default: ATW) ATW, AWB, OUTDOOR, INDOOR, AWC->SET, and MANUAL are available for the white balance modes. 5-1. ATW (Auto Trace White balance) : Automatically tracks the changes of color temperature and continuously adjusts the white balance.
- Page 20 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-1. AUTO (AGC/CDS) Used when DAY or NIGHT is determined by light level through the lens and DAY from/to NIGHT is switched automatically by the scene brightness. It can be controlled the threshold level and delay time. 6-1-1.
- Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-4. COLOR The camera is always in COLOR mode. Forcibly DAY/NIGHT is disabled and outputs color video. 7. NR (Noise Reduction) NR function improves picture quality by filtering out signal noise which is generated under the low light conditions. Sets 2DNR or 3DNR level. 3DNR(3-dimensional noise reduction) which reduces the noise by the multi frames (HD format only).
- Page 22 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions CAM TITLE 8-1. CAM TITLE : Camera title(name) can be set and edited up to 15 alpha numeric and symbolic characters. ▲,▼,◀,▶ POS END moves the cursor and choose a — — — — — — — — — — — — — — — character to select it.
- Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions MOTION 1. SELECT AREA1 2. DISPLAY 3. SENSITIVITY llllllllllllllllllllll 4. COLOR GREEN 5. TRANS 1.00 6. ALARM 7. DEFAULT 8. RETURN 8-3-1. SELECT : Selects one of 4 areas. 8-3-2. DISPLAY : Displays ON/OFF the motion area which you selected. It can be adjusted position and size.
- Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • VIEW TYPE: Selects display type for motion detection. > ALL - Enables to display types both of OUTLINE and BLOCK, if motion is detected. > OUTLINE - Enables to display box shape, if motion is detected. >...
- Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-5. LANGUAGE 12 languages are available for OSD menu. ENG, TUR, NED, POR, RUS, POL, SPA, ITA, FRA, GER, CHN2, CHN1. Choose one prefered language and enter the ‘SET’ key. 8-6. DEFECT : Detects and compensates the defective pixels. Once CALIBRATE is selected, the pixel calibration is initiated with lens closed and can’t cancel.
- Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 8-6-3. BLACK DPC : Setting for white defective pixels. • POS/SIZE: Adjusts DPC AREA window size and position. • START : Starts up detecting and compensation. • DPC VIEW: Shows the original defective pixels if set to ON •...
- Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 9-1-1. LEVEL : Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object. 9-1-2. START AGC : Defines the AGC level to start up for sharpness 9-1-3.
- Page 28 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 9-3. LSC (Lens Shade Compensation) : Enhances the brightness at the corners caused by the lens or the narrow emitting angle of IR LEDs. Picture could be noisy if it is ON. When relatively picture looks noisy, please set it to OFF.
-
Page 29: Specifications
ULTRA CLEAR RESOLUTION CAMERA Specifications ITEM MEB-62V2812P0B MEB-62F0036P0A Imaging Sensor 1/2.8" Sony Exmor CMOS Effective Pixels 1920(H) x 1080(V) x 25p Scan Frequency HD] 25Hz(V), 18.75Khz(H) / Progressive CVBS] 50Hz(V), 15.625Khz(H) / 2:1 Interlace Electronic Iris 1/25~1/50,000sec Video Format HD] 16:9, 1080p@25fps... - Page 30 ULTRA CLEAR RESOLUTION CAMERA Specifications Power DC12V=520mA Consumption Circuit protection against faulty connection in power polarity. Housing IP66, Polycarbonate & Aluminum Cast, 3-Axis locking bracket, Dual window Dimension 78.5mm(ø)x78.5mm(H)x214mm(L) / About 520g (*) Design and specifications are subject to change for product improvements without prior notice.
