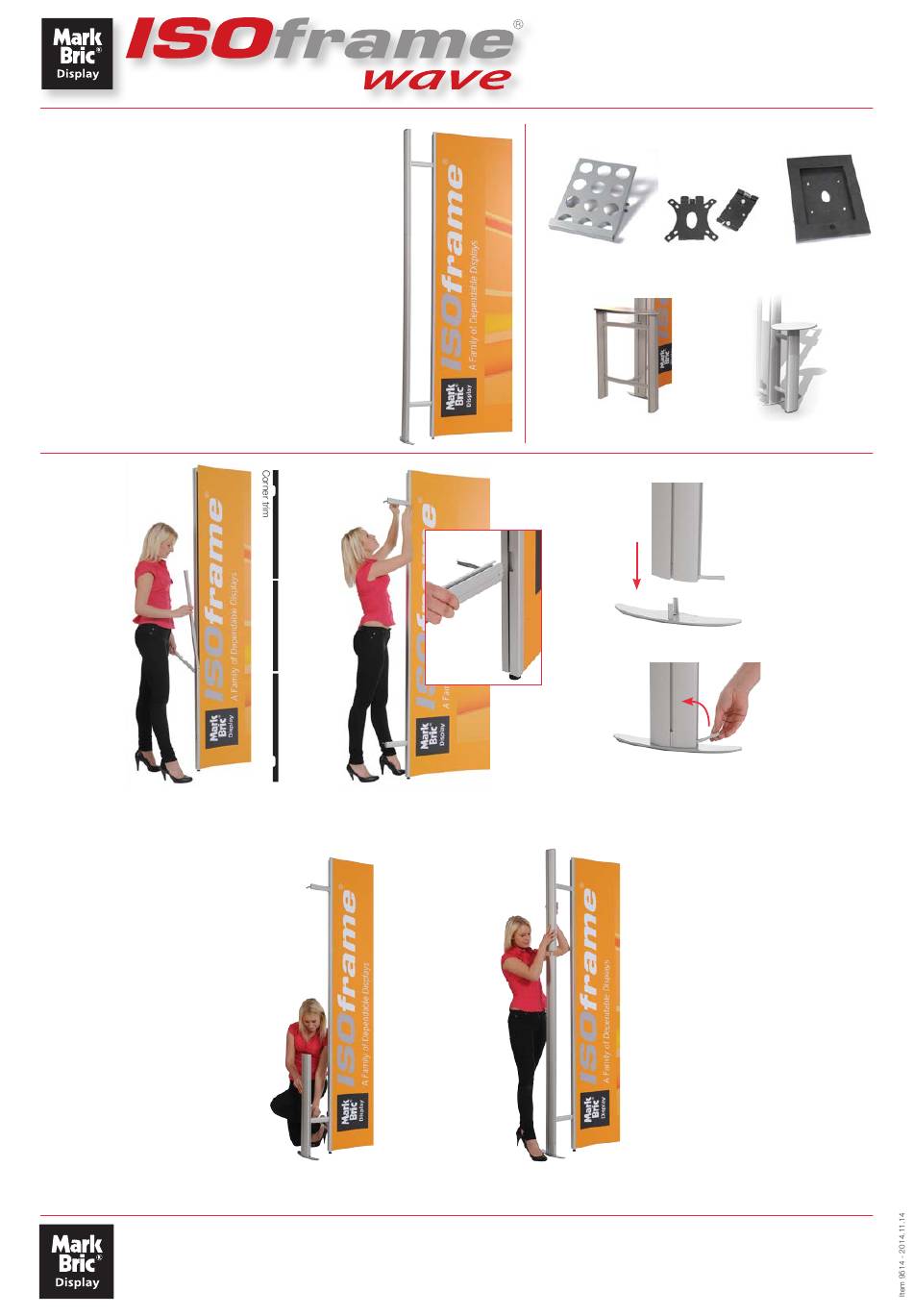

Mark Bric ISOframe Wave IS-9402-1 Mounting Instructions page 7

Flying Oval post
with distance beams
Item.no:
Midi IS-9426
Maxi IS-9427
Complete with:
Midi IS-9426
1 Oval post, Base 760 IS-OP-760-BP
1 Oval post, Center 750/850 IS-OP-750-EP
1 Oval post, Top 755/855 IS-OP-755-TP
1 Foot IS-03-OF
2 Distance beam, 165 mm IS-165-DP
1 Corner trim kit with cut out IS-CF-82-CTLR
1
Replace the old corner trims with the
new set included in your Flying Oval
post module.
Mark Bric Display Corp.
North America Tel. 800.742.6275 Fax 800.565.9506 E-mail: markbric@markbric.com
Mark Bric Display AB
Worldwide Headquarters Tel. +46 33 480 460 Fax +46 33 480 470 E-mail: display@markbric.se
Maxi IS-9427
IS-OP-760-BP
IS-OP-850-EP
IS-OP-855-TP
IS-03-OF
IS-165-DP
IS-CF-83-CTLR
2
Attach the two distance beams in the
cut outs of the new corner trims.
4
Start to attach the base section with the
distance beam.
Accessories
Literature holder
Item IS-80-LH01
Spares & Accessories
Table attachment
Code
IS-CO-ST Tool-less assembly side table
attchment for laptop or mouse
300mm x 150mm x 850mm
Includes Oval post and links
Keyboard plinth
Item IS-CO-KP
Keyboard Plinth
Code
IS-CO-KP Tool-less assembly keyboard plinth
attachment for keyboard and mouse
800mm x 300mm x 800mm
Includes Oval post and links
3
Isoframe® Compact is manufactured in the UK by Display Makers UK Limited. Attach the foot in the base section of
Due to our policy of continued development we reserve the right to change
specifications without prior notice.
oval post lock in place.
All weights are approximate and may vary.
Dual position base - patent pending. FASTclamp connector - patent pending. iLine system - patent pending. ISOframe is a Registered Trademark of Display Makers UK Limited
5
Mount the center section in top of the base
and end with the top post section, locking
it into place with the top distance beam.
Mounting instructions
Media screen holder iPad holder
Item IS-80-TM05
Item IS-80-TM04
