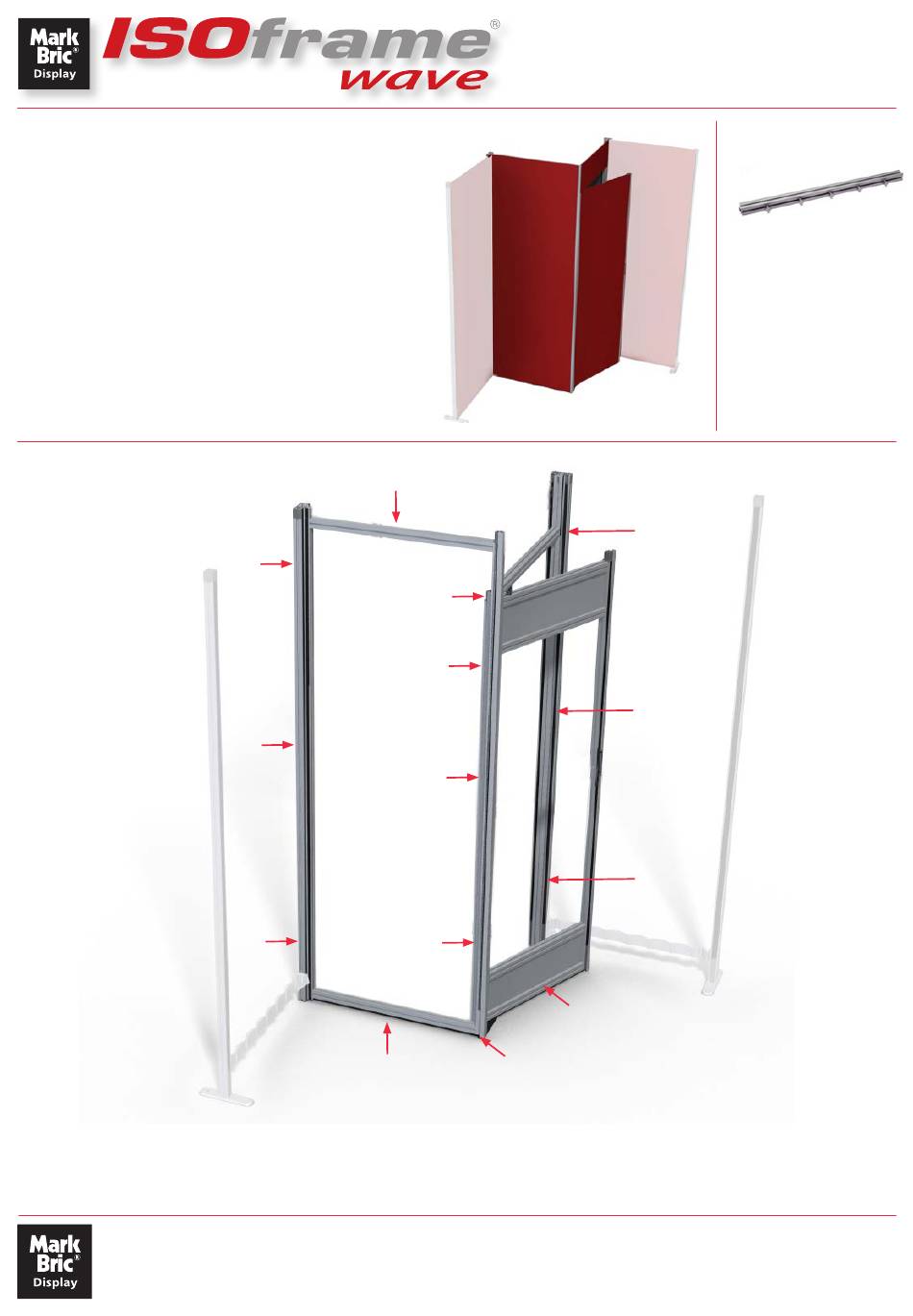

Storage room with door
– 800 x 800 mm (31.5 x 31.5 inches)
Item.no:
Midi
IS-9419-1
Maxi
IS-9419-2
Complete with:
1 Base post, 750 mm, adj. foot
1 Extension post, 750 mm
1 Top post, 755 mm
2 90° corner post, Base, wave cut
2 90° corner post, Center, 750 mm IS-0750-IE90
2 90° corner post, Top, 755 mm
2 90° corner post, Center, 850 mm –––––––
2 90° corner post, Top,855 mm
1 Extension post, 200 mm
2 Straight beam, 800
6 Corner trims, 750/850
3 Corner trims, 770
2 Kickers & Hangers
1 Door, straight
Midi: IS-0755-IT90
Maxi: IS-0855-IT90
Midi: IS-0750-IE90
Maxi: IS-0850-IE90
1
This unit is a 'Starter module'.
Build it first before adding/con-
necting the other modules in your
display.
Mark Bric Display Corp.
North America Tel. 800.742.6275 Fax 800.565.9506 E-mail: markbric@markbric.com
Mark Bric Display AB
Worldwide Headquarters Tel. +46 33 480 460 Fax +46 33 480 470 E-mail: display@markbric.se
Midi IS-9419-1
Maxi IS-9419-2
IS-0750-EBM
IS-0750-EBM
IS-0750-EEM
IS-0750-EEM
IS-0755-ETM
IS-0755-ETM
IS-W750-IB90
IS-W750-IB90
–––––––
IS-0755-IT90
–––––––
IS-0850-IE90
–––––––
IS-0855-IT90
–––––––
IS-0200-EEM
IS-800-BS
IS-800-BS
IS-0750-CT
IS-0850-CT
IS-0770-CT
IS-0770-CT
IS-800-KHN
IS-800-KHN
IS-9458
IS-9458
IS-W750-IB90
IS-800-BS
2
The door unit can be installed
at any of the two positions in
the module.
IS-800-BS
IS-0755-ETM
IS-0200-EEM
Maxi only
IS-0750-EEM
IS-0750-EBM
Corner trim kit, Midi= IS-0770-CT, IS-0750-CT, IS-0750-CT
3
As with all fixed-beam modules,
be sure to level the complete
storage room module before adding
your graphic panels.
Mounting instructions
Midi: IS-0755-IT90
Maxi: IS-0855-IT90
Midi: IS-0750-IE90
Maxi: IS-0850-IE90
IS-W750-IB90
IS-9458
(see separate
instructions)
Maxi= IS-0770-CT, IS-0850-CT, IS-0850-CT
4
When you are ready, you will
have 2 set of corner trim left,
this will be mounted in each end of
the wall!
Accessories
Coat hook
with straight beam 800 mm
Item IS-9430
