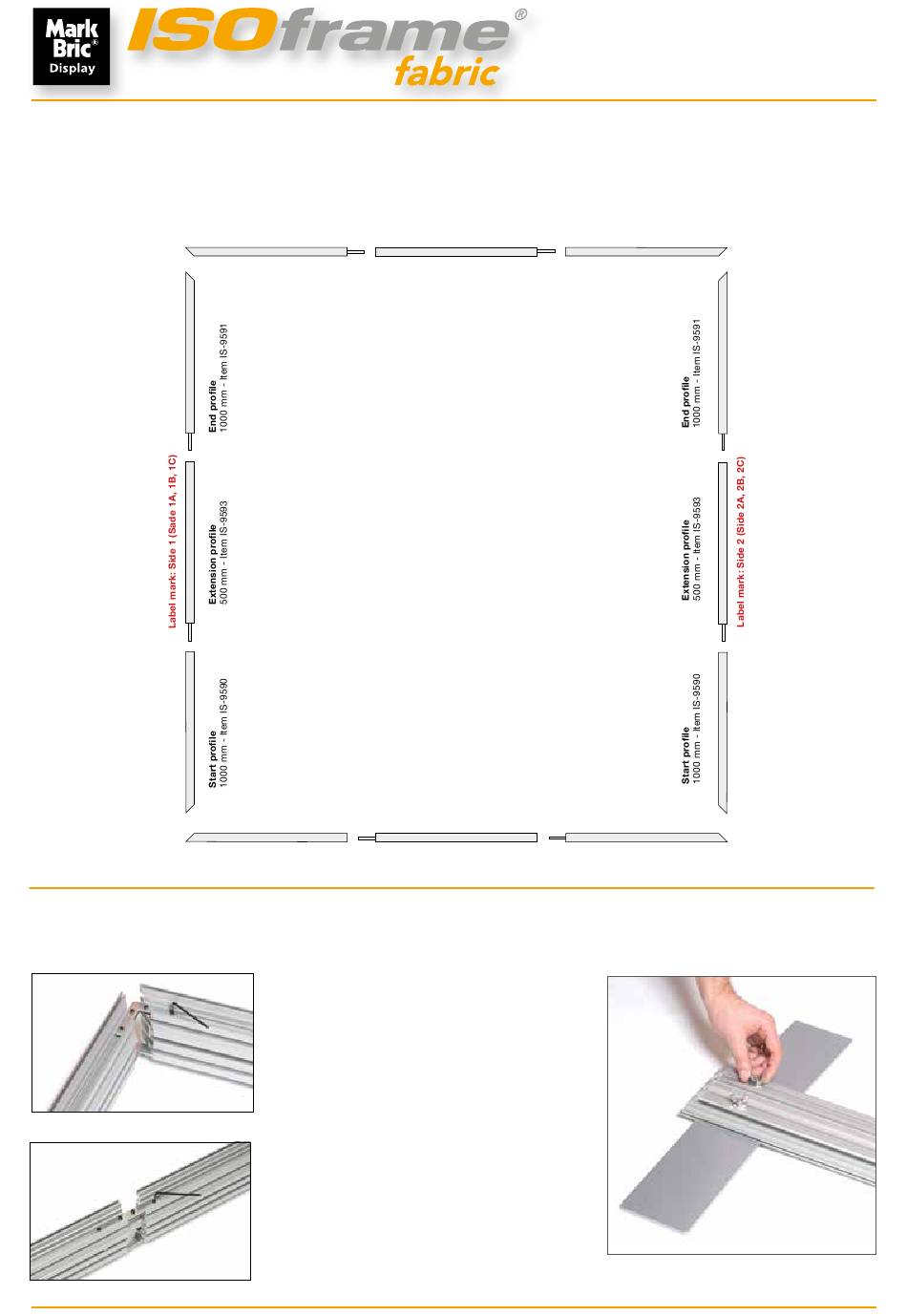

This frame can be used single- or double sided. You always need fabric graphic
on both side (printed or unprinted), unless you will use it as a wall mounted
frame on a white wall, in which case it's not necessary to use fabric on the
reverse side.
Mount the frame
You must lock all joints with screw brackets
in each side.
Corner connection.
Straight connection.
End profile
1000 mm - Item IS-9591
VERY IMPORTANT!
Before you connect the LED-
bar, read how to connect!
See reverse side.
Start profile
Extension profile
1000 mm - Item IS-9590
1000 mm - Item IS-9592
Label mark: Bottom profile
Label mark: Top profile
Extension profile
1000 mm - Item IS-9592
End profile
1000 mm - Item IS-9591
Frame size: 300 x 250 cm
Start profile
1000 mm - Item IS-9590
Mount the feet
Item no: IS-9338 (Minimum 2 pcs.)
The frame must be drilled for the feet on the bottom
profile.
1
Mount a foot in each side of the bottom profile.
