Mark Bric ISOframe ripple IS-9835 Quick Start Manual

Ripple
Media screen holder
For media sreen with VESA 75/100 or our
iPad holder (80029)
Item no. IS-9835
Please observe: We do not recommend
using a media screen holder on a single
free-standing banner stand section.

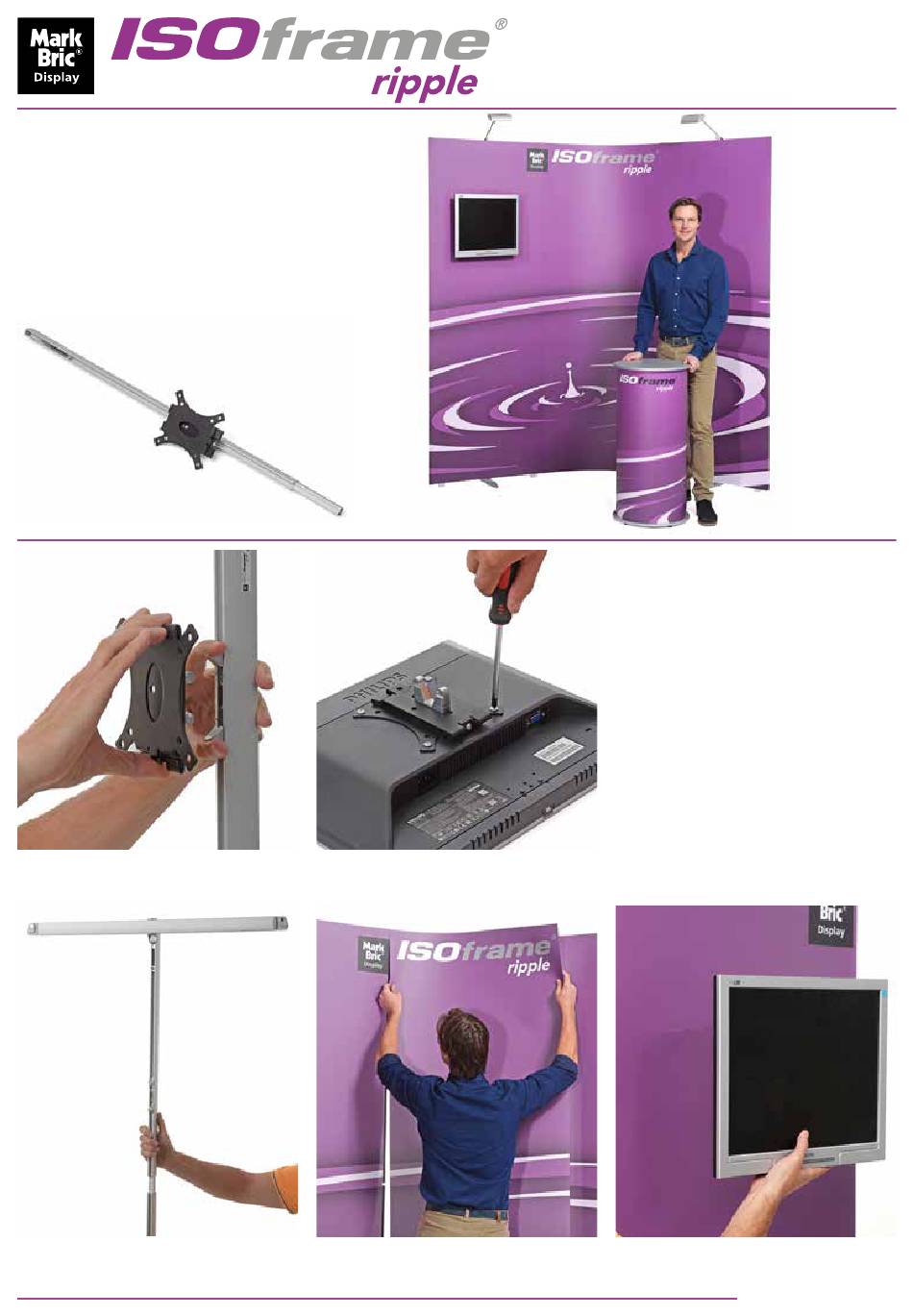

A
Push the top and bottom knob into the center and remove
the screen holder.
1
Remove the top post and replace it with the media screen
holder without the black holder (see photo instruction A).
B
Mount the screen holder at your screen or iPad holder.
2
Build up the complete wall and attach the graphic panels.
3
Mount the screen (see photo instruction B) and then push
the screen holder into the post holder while at the same
time pressing the two buttons on the post holder together.
Follow reverse side
