Mark Bric SnapUp 82581 Mounting Instruction

SnapUp Elegance

Table attachments

Semi-circular table for curved systems
Item 82581

Technical facts:

Height: 895 mm / 35.2"
Width: 700 mm / 27.6"
Extra
Bag for table attachment
Item IS-80-TB05

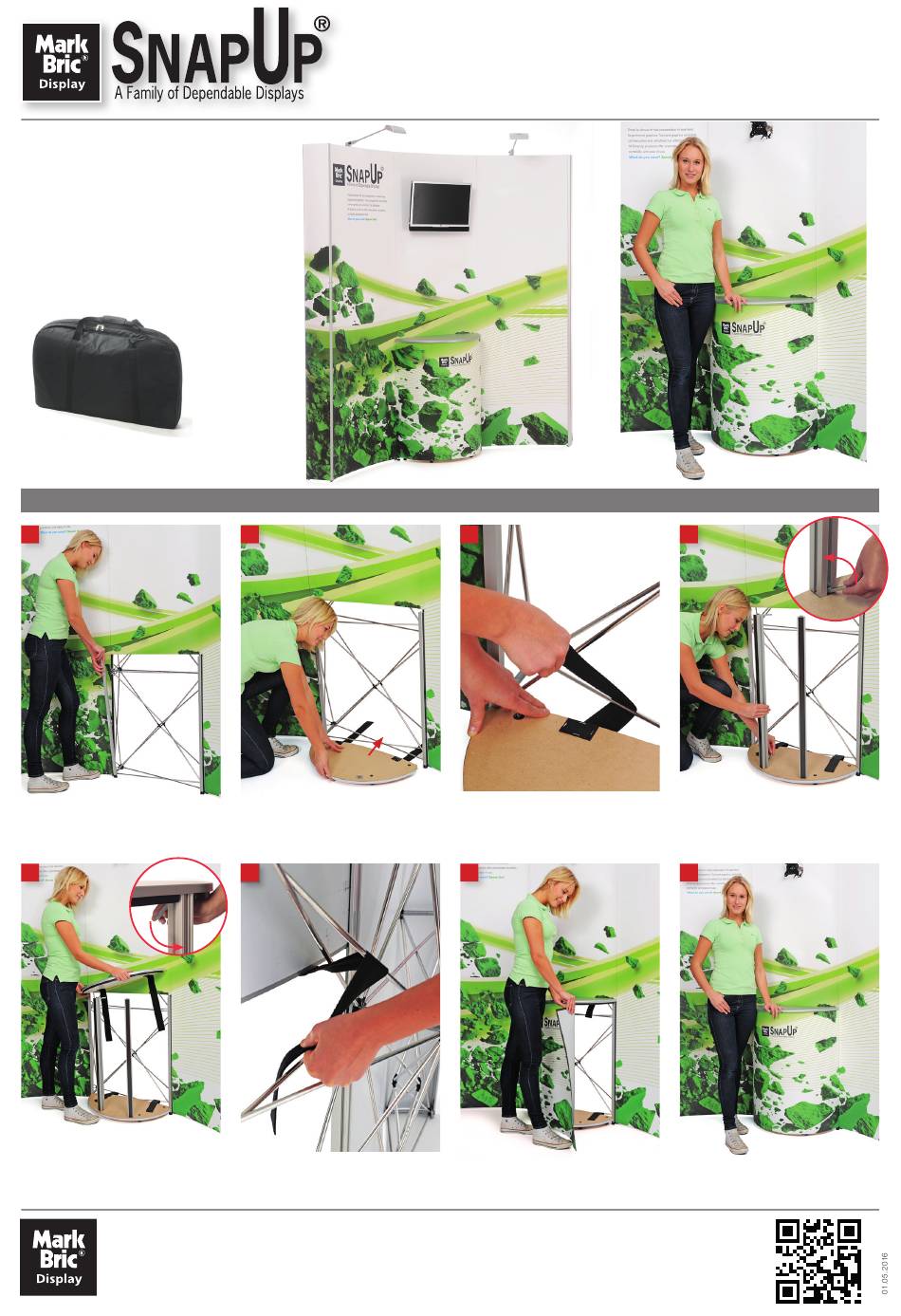

Mounting instruction – Instructions de montage – Aufbau-Anleitung – Instrucciones de montaje
1
With wall graphics in place, attach
the two T-bars on each edge of the
table opening.
5
Attach the top shelf on top of the
T-bars and front posts and lock the
FASTclamp.
Mark Bric Display Corp.
North America Tel. 800.742.6275 Fax 800.565.9506 E-mail: markbric@markbric.com
Mark Bric Display AB
Worldwide Headquarters Tel. +46 33 480 460 Fax +46 33 480 470 E-mail: display@markbric.se
2
Slide the bottom shelf into position.
6
6
Wrap & lock both velcro bands around the
diagonal struts of the display wall--Under
the front strut and over the back strut.
3
Wrap both velcro straps around the
bottom horizontal struts of the display
wall.
7
Mount the graphic panel.
Mounting instruction
4
Mount the two front posts and lock
the FASTclamp.
8
You are ready!
