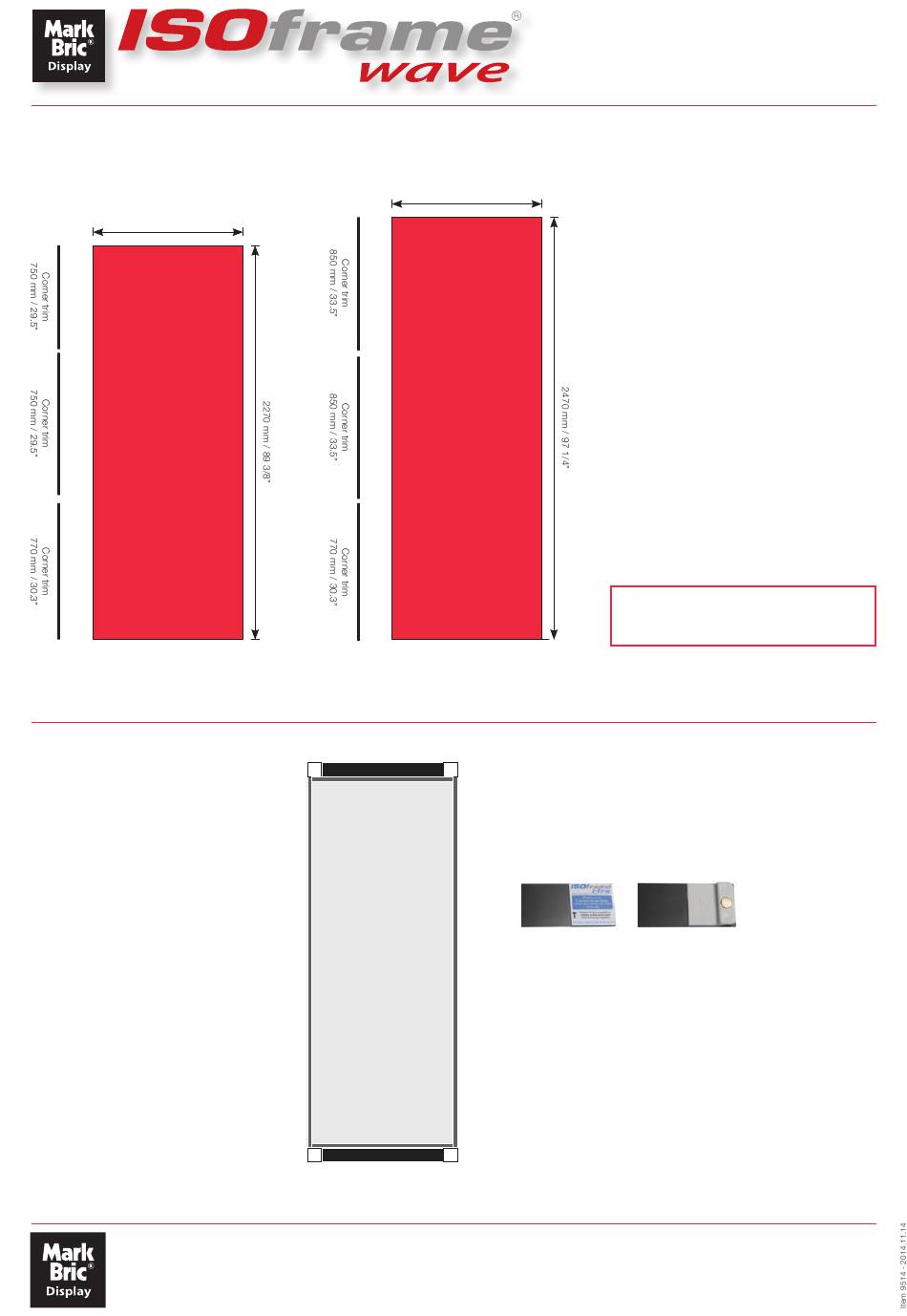

Mark Bric ISOframe Wave IS-9402-1 Mounting Instructions page 6

Graphic production and corner trim
Midi
800 mm / 31 1/2"
Graphic panel
attachments
Accessories
Kickers & Hangers
(incl. for the first set of panels)
800 mm / 31 1/5"
Magnetic tape (not incl.)
12 mm/0.5" A tape, 30 m / 98 ft.
Each panel needs:
Midi 6,2 m / 21 ft.
Maxi 6,6 m / 22 ft.
Mark Bric Display Corp.
North America Tel. 800.742.6275 Fax 800.565.9506 E-mail: markbric@markbric.com
Mark Bric Display AB
Worldwide Headquarters Tel. +46 33 480 460 Fax +46 33 480 470 E-mail: display@markbric.se
Hanger strip
Horizontal magnetic tape
directly below hanger strip
Vertical magnetic tape
on edge of the graphic
Item IS-800-KHN
Item 82281
Horizontal magnetic tape
directly over kicker strip
Kicker strip
Maxi
800 mm / 31 1/2"
Printer material
We recommended the following material:
Poster paper: 180 gr / 0.4 lb.
The printed graphic panels must be laminated before use.
Front side: 125 microns (0,125 mm) / 0.005"
Reverse side: 250 microns (0,250 mm) /0.010""stop light"
Polyester film: 330-370 microns (0,350 mm) / 0.013-0.015"
Top laminate: 125 microns (0,125 mm) / 0.005"
Kicker
Mounting of Kickers and Hangers
Kickers and hangers to be fixed at the bottom and at the top of the graphic
panels (reverse side).
Mounting of Magnetic Tape
Magnetic tape to be fixed horizontally directly over/under kicker/hanger strip.
Magnetic tape to be fixed vertically along each side of the graphic panels.
IMPORTANT Carefully mount the magnetic tape slightly inset from the edge of
the graphic panel by approximately 0,25 mm / 0.010". Once mounted, a very
thin straight white line should show between the edge of the graphic and the
outside edge of the magnetic tape. Do not exceed 0,5 mm / 0.020".
Application Techniques
To obtain optimum adhesion, the bonding surfaces must be well unified, clean
and dry. Typical surface cleaning solvents are isopropyl alcohol/water mixture
(rubbing alcohol) or heptane.
Note: Be sure to follow solvent manufacturer's precautions and directions for use
when using solvents.
A template for the graphic panel
production can be downloaded at:
http://markbricdisplay.net/imagebank/PT-general.html
Hanger
