Lightbox frame
This frame can be used single- or double sided. You always need fabric graphic
on both side (printed or unprinted), unless you will use it as a wall mounted
frame on a white wall, in which case it's not necessary to use fabric on the
reverse side.

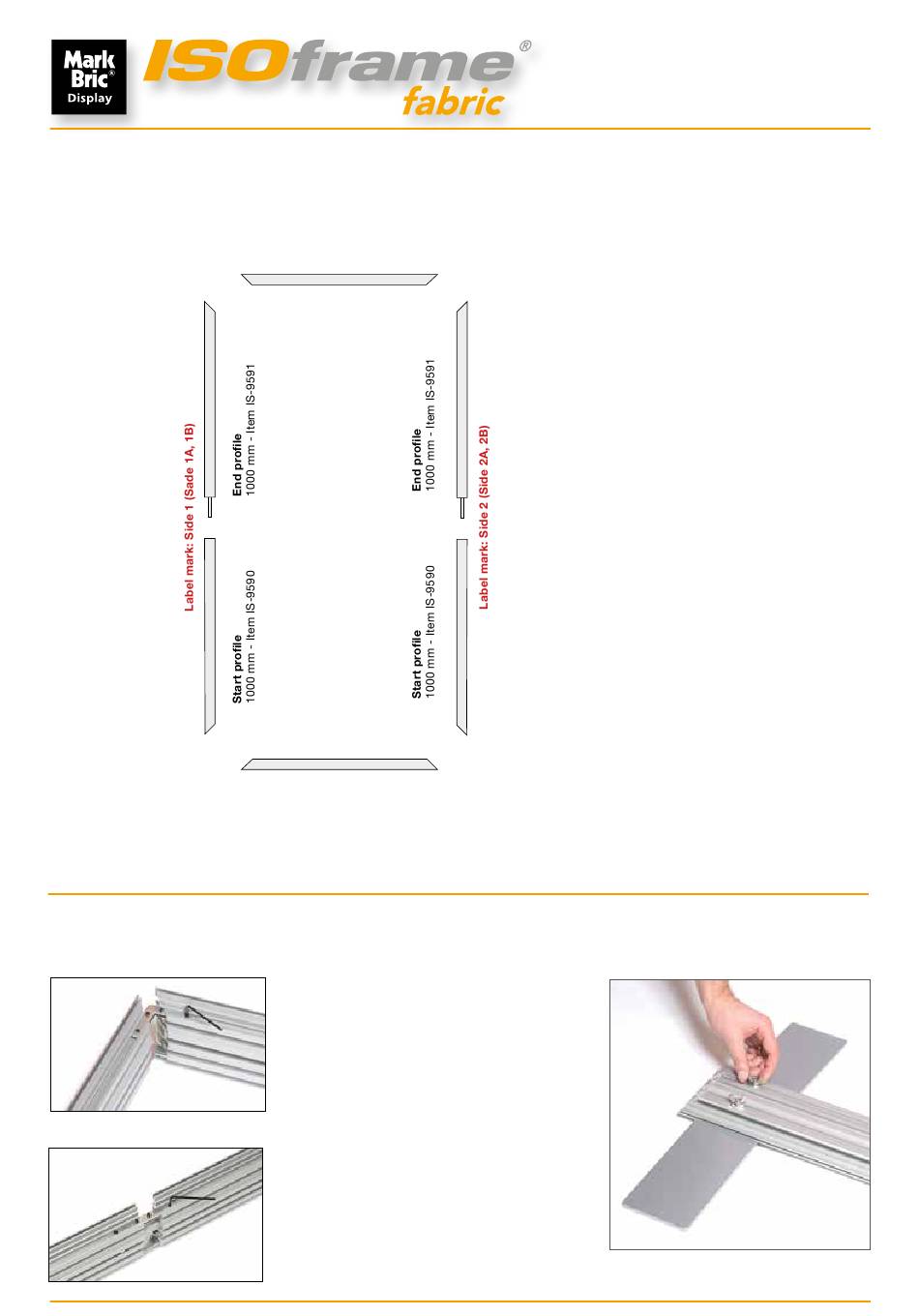

Mount the frame
You must lock all joints with screw brackets
in each side.
Corner connection.
Straight connection.
Start / End profile
1000 mm - Item IS-9598
Start / End profile
1000 mm - Item IS-9598
Frame size: 100 x 200 cm
VERY IMPORTANT!
Before you connect the LED-
bar, read how to connect!
See reverse side.
Mount the feet
Item no: IS-9338 (Minimum 2 pcs.)
The frame must be drilled for the feet on the bottom
profile.
1
Mount a foot in each side of the bottom profile.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mark Bric ISOframe Fabric IS-9598
Summary of Contents for Mark Bric ISOframe Fabric IS-9598
- Page 1 Frame size: 100 x 200 cm Lightbox frame This frame can be used single- or double sided. You always need fabric graphic on both side (printed or unprinted), unless you will use it as a wall mounted frame on a white wall, in which case it’s not necessary to use fabric on the reverse side.
- Page 2 - Do put transformers together. Risk of overheating! Mark Bric Display can not be held responsible for any misuse, failure to follow the Mark Bric instructions and/or errors during the electrical installation of the light boxes. Transformer Mark Bric Display Corp.
