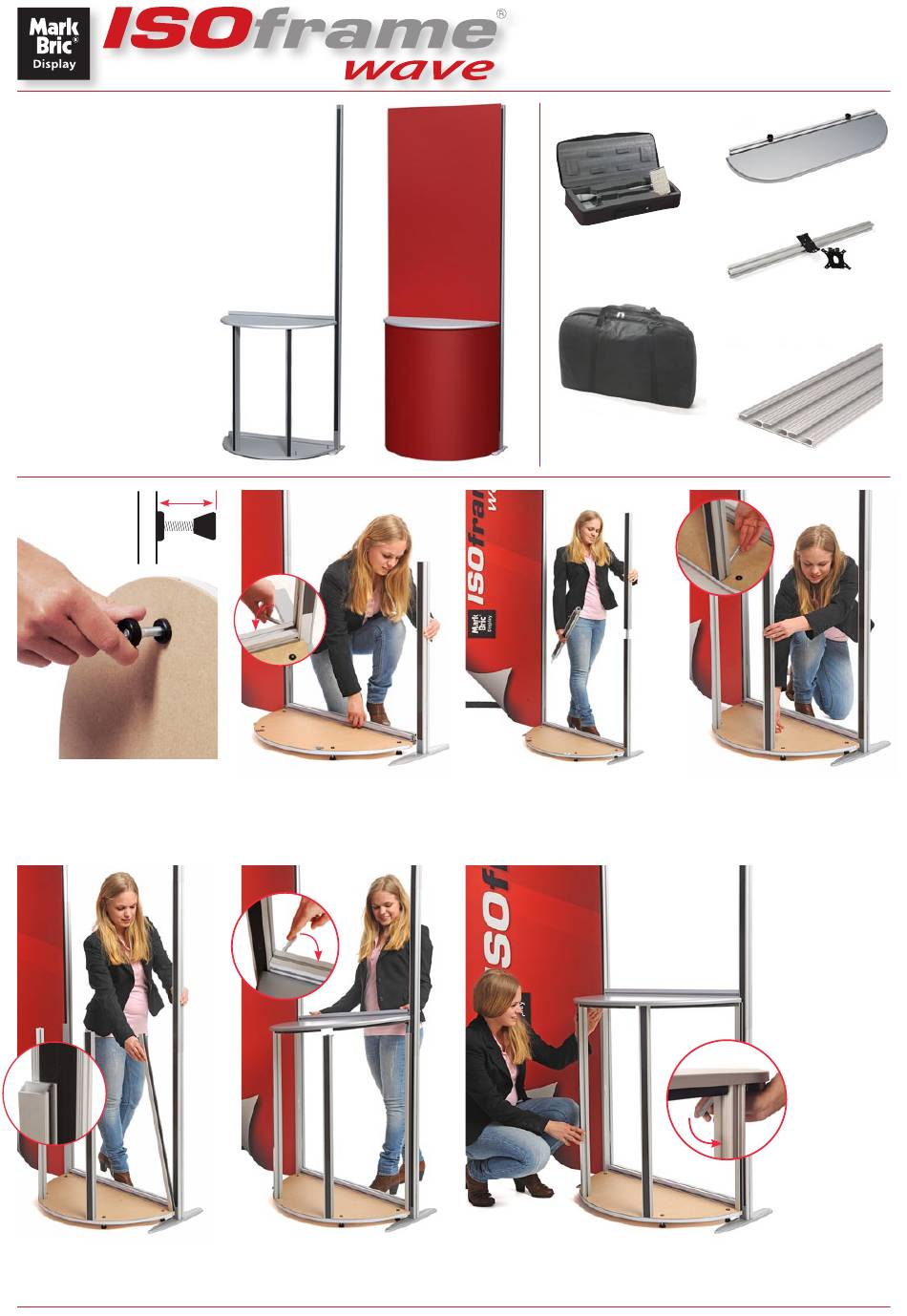

Mark Bric ISOframe Wave IS-9402-1 Mounting Instructions page 30

Semi-circular table
module
Item.no IS-9415-1/2
Complete with:
1 post with feet,
1 counter top and 1 base plate,
2 table posts,
4 table feet,
2 T-box connectors,
1 graphic stiffener,
1 set kicker and hanger
22 mm / 0.86"
1
Screw in the 4 adjustable feet in the base
plate so the height from the floor will be
22 mm/0.86".
5
Attach the 2 T-box connector on the
inner edge of the post mag tape, with
mag tape on the T-box facing outward
(facing right on the right hand post, left on
the left hand post).
2
Attach the base plate to an existing
module and to the included base post.
6
Attach the table top and lock the 2
FASTclamps on the reverse side...
Accessories
LED spotlights in bag
12V / 18 W incl. transformer
Item IS-SL-LED
Bag for table
Item IS-80-TB05
3
Complete the post with the extension
and top post.
7
...and the 2 FASTclamps at the posts. Aattach the graphic panels
and the table installation is complete.
Mounting instruction
Floating shelf, item IS-9454
Media screen holder
Small, item IS-80-TM02
Large, item IS-80-TM03
Slatwall system
4
Attach the 2 table posts and lock the
bottom FASTclamps.
