Home Automation (WMP) – Fujitsu VRF
TM
Intesis
•
Add. To do a manual configuration of the Fujitsu VRF system. To do this configuration it is not necessary
to be connected to the VRF system:
Consider that it is necessary to know the information of the different units:
o
Indoor / outdoor: depending type of the AC unit.
o
Refrigerant system: as is defined in the VRF network for this certain unit.
Description. Descriptive name to easy identification of the unit (for example, 'living room floor 1
o
unit').
•
Scan. To do an auto configuration of the gateway by retrieving the information from the Fujitsu VRF system.
To do so, it is necessary to be connected to the VRF system:
It is possible to priorize the SCAN function within the VRF network (activated by default). In addition, to short the
time that the scanning may take, the integrator can define the range for the refrigerant system in advance.
By pressing Scan button, Fujitsu X1X2 bus will be scanned for available units. Error window will appear if there is a
problem in the connection with X1X2 bus (units not powered, bus not connected, ...).
A progress bar will appear during the scan. After scan is complected, detected units will be shown in units newly
detected.
Select the units to add (or replace) in installation, according to selection Replace Units / Add Units.
After units to be integrated are selected, click button Apply, and changes will appear in previous Units
Configuration window.
Acnum
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice

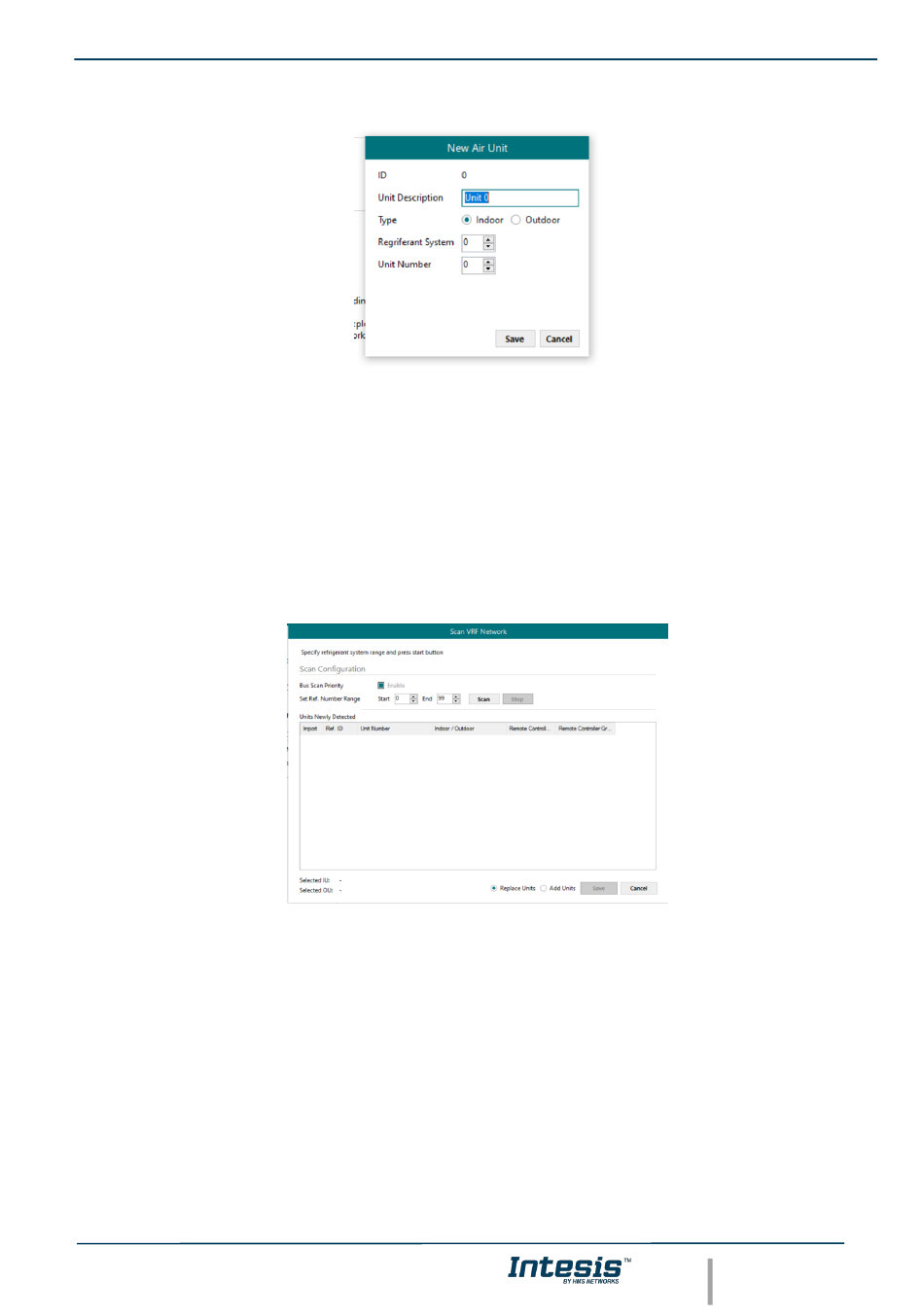

Figure 45 Add new air unit
