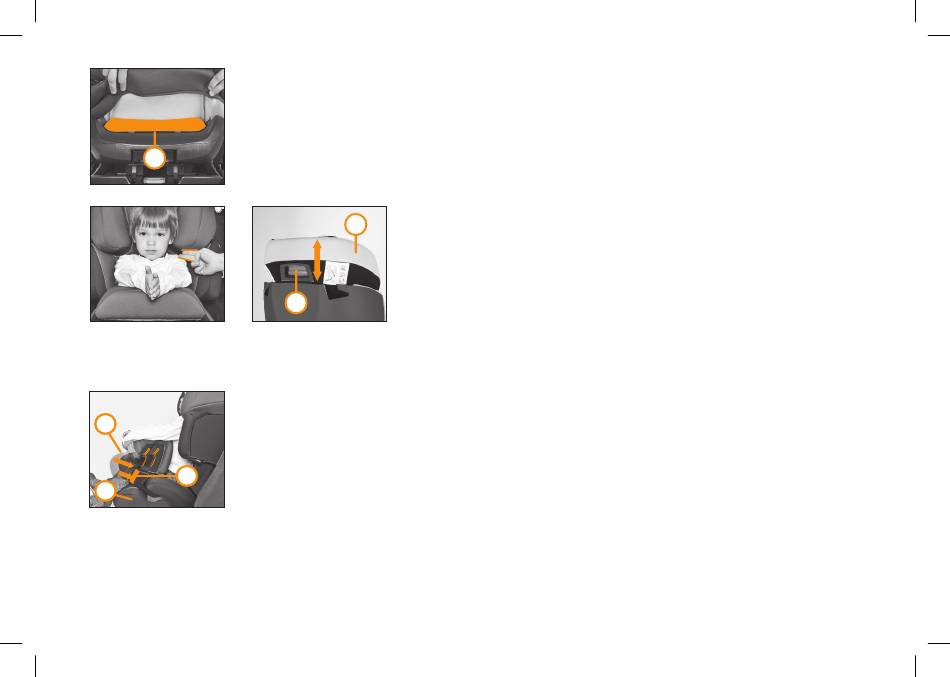

ADJUSTMENT TO THE BODY SIZE
For a proper height adjustment of the CYBEX PALLAS-fix a booster inlay (i) is included
and already inserted under the seat cover when purchased.
– It is recommended to use this height adjustment inlay (i) between the age of 9 and 18
months.
– For children over 19 months the height adjustment inlay (i) may be removed.
– Afterwards the height adjustment should be regulated by moving the headrest (e) into
the correct position. Pull the adjustment handle (h) in order to release the headrest.
– The seat is correctly adjusted if you can fit 2 fingers between the bottom edge of the
headrest (e) and the shoulder of the child. Pull the adjustment handle (h) in order to
unlock the shoulder and headrest.
Note! Shoulder and headrest (e) need to be perfectly adjusted in height to provide the
best protection and comfort for your child and to also guarantee the optimal position
of the diagonal belt (f). The height of the shoulder and headrest can be adjusted in 11
positions. The shoulder part is attached to the headrest and does not have to be adjusted
separately.
REMOVING THE BOOSTER INLAY
1. Open the press buttons at the front of the booster cover.
2. Lift the booster cover until the height adjusting inlay (i) can be easily removed from
the front.
3. Remove the height adjustment inlay (i) according to the above age recommendation.
4. Put the seat cover back in its original position and fasten the press buttons.
IMPACT SHIELD ADJUSTMENT – ECE GROUP 1 (9-18 KG)
By pushing the two buttons (z) the impact shield (p) will slide into the widest position. By
releasing the buttons (z) the impact shield (p) will be locked in position.
The side parts of the impact shield (p) fit exactly into the armrest of the booster cushion.
They connect the impact shield (p) and the booster (d).
The impact shield (p) should be well adjusted to touch the child's chest without exerting
any pressure on the child's body.
Warning! Impact shield (p) may only be used in conjunction with the main frame (w)
and only up to a maximum weight of 18 kg!
