Removing and installing the combustion furnace

7.8.1

Removing the combustion furnace

14. Switch on the gas supply, insert the mains plug into the power socket and switch on
the analyzer on the main switch.
15. Check the system for leaks (see section "Checking the system for tightness" p. 89).
CAUTION
There is a risk of burning on the combustion furnace! Only remove the combustion tube
when the device is cold or allow the device to cool down sufficiently!
Before switching off set the furnace temperature in multiWin to 20 °C and exit multiWin.
Otherwise there is a risk of burns when checking the system for leaks after installation!
Remove the combustion furnace as follows:
1. Switch the analyzer off on the main switch, pull the mains plug from the mains
outlet and disconnect the gas supply.
2. Remove the top cover.
Maintenance and care

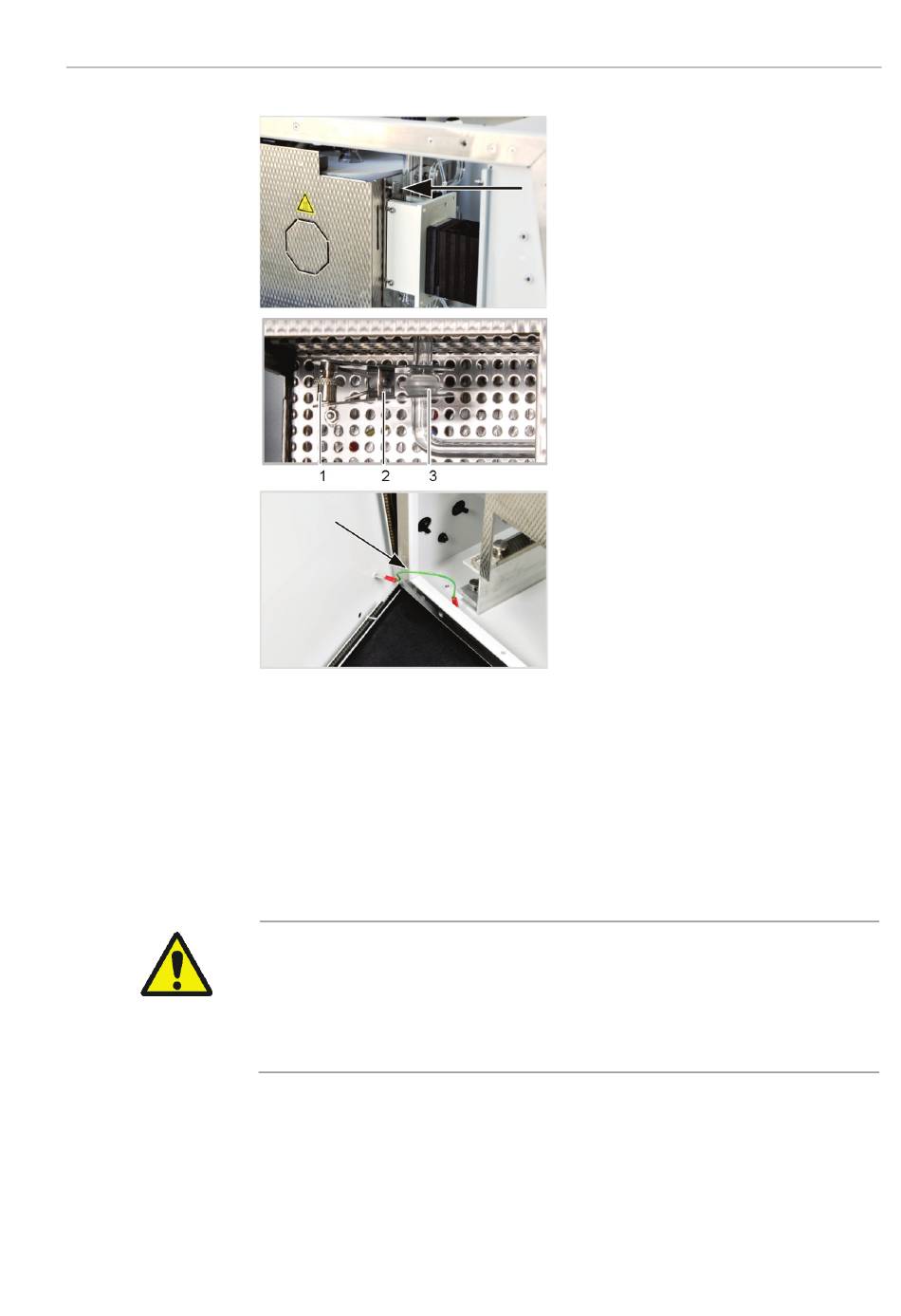

9. Fix the carrier plate at the furnace with
the knurled head screw.
10. Attach the bottom end of the combustion
tube and the inlet of the condensation coil
(spherical joint (3)).
11. Secure the spherical joint with the fork
clamp (2) and tighten the knurled head
screw (1) finger-tight.
12. Close the side wall.
Connect the grounding conductor
connection to the left side wall.
First screw the screws into the bottom and
then the top side. Tighten the screws in
turn.
13. Replace the top cover on the device
housing.
