Operating Instructions
Technical Information

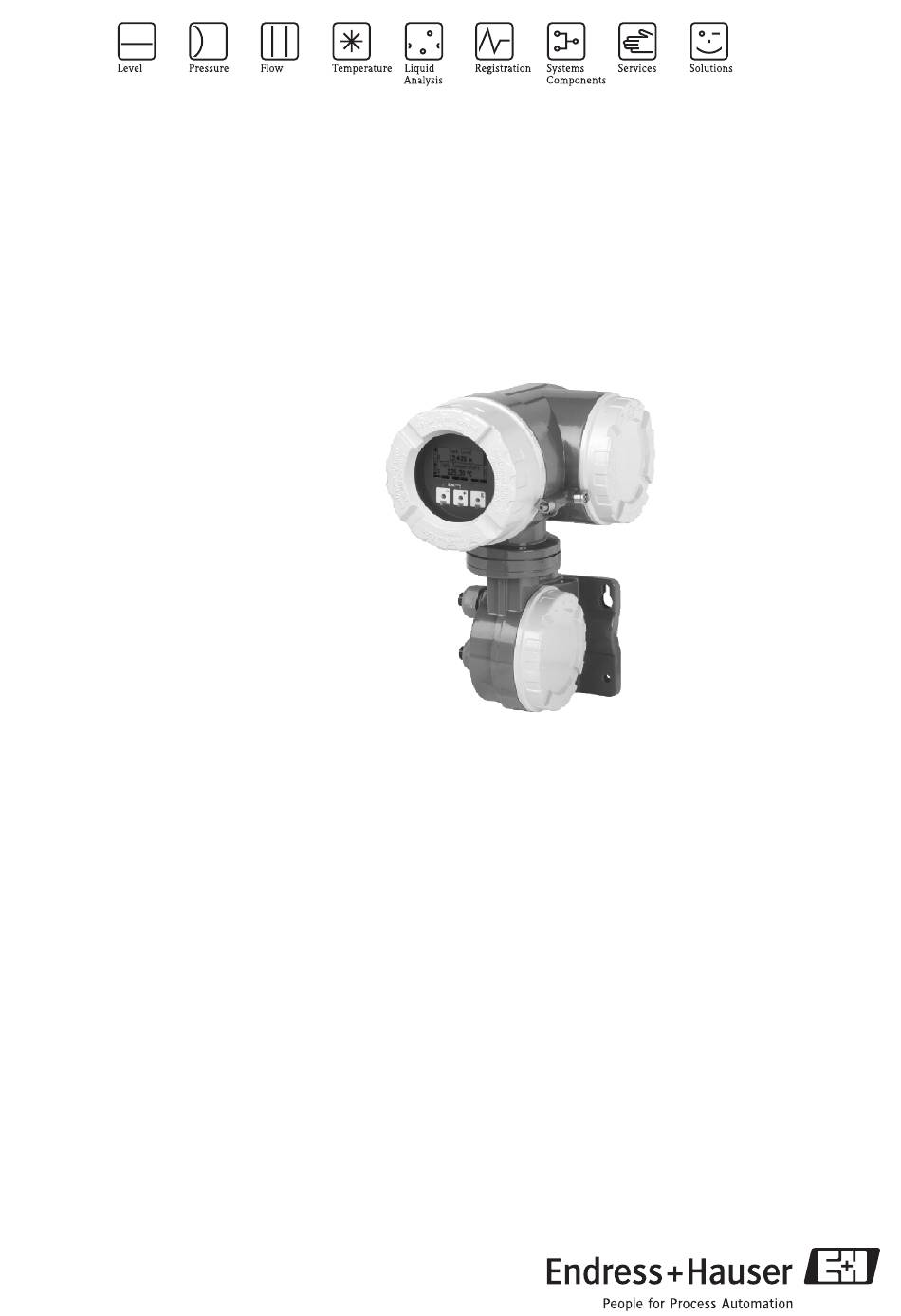

Tank Side Monitor NRF590
Inventory Control
Field device for tank sensor operation and monitoring and for
integration into inventory control systems
Software Version 02.04
Application
The Tank Side Monitor NRF590 is a sensor integration
and monitoring unit for bulk storage tank gauging
applications.
It can be used with Micropilot radar or Proservo level
gauges and can be combined with other HART
compatible devices.
The Tank Side Monitor offers the following functions:
• intrinsically safe (i.s.) power supply of the connected
devices
• parametrization of the connected devices
• display of the measured values
• tank calculations for accurate correction of the tank
distortions
TI00402F/00/EN/13.10
71127758
Features and benefits
• I.s. power supply and communication for Micropilot
and Levelflex level radars
• Connects up to 6 HART devices via i.s. 2 wire, for
example Prothermo for average temperature
measurement and Cerabar/Deltabar for HTMS
density applications
• Backlit graphical LCD display; operation via 3 optical
keys (touch control)
• User-friendly operating menu (multi-lingual)
• Interfaces to the tank inventory system Tankvision
• Provides communication to PLC, DCS and SCADA
systems
• Various industry standard communication protocols,
including
– Sakura V1
– EIA-485 Modbus
– Whessoematic WM550
– BPM (compatible with Enraf systems)
• Approved for use in explosion hazardous areas
• Weights & Measure-approved for use in custody
transfer applications
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Tank Side Monitor NRF590
Summary of Contents for Endress+Hauser Tank Side Monitor NRF590
-
Page 1: Software Version
Software Version 02.04 Application Features and benefits The Tank Side Monitor NRF590 is a sensor integration • I.s. power supply and communication for Micropilot and monitoring unit for bulk storage tank gauging and Levelflex level radars applications. -
Page 2: Table Of Contents
Electrical connection - non-i.s. terminals..14 Tank Side Monitor NRF590 ......28 Terminal assignment of the field protocol/host side . -
Page 3: Function And System Design
Function and system design Application The Tank Side Monitor NRF590 is a field device for the integration of tank sensors into tank inventory systems. It is used in tank farms, terminals and refineries. Especially, it can be used in connection with Micropilot M level radars (for inventory control) and Micropilot S high accuracy level radars (for custody transfer applications). -
Page 4: Hart Interface
• Cerabar M: PMC/PMP4x • Cerabar S: PMC/PMP7x • Cerabar: PCM/PMC73x/63x • Deltabar: PMD/FMD23x/63x • Deltabar S: PMD/FMD7x Any other HART instrument can be operated via the Generic HART menu (allowing all 4 universal HART values to be accessed). Endress+Hauser... -
Page 5: Typical Tank Calculations
P1 Position P1,3" mode) L00-NRF590-14-00-08-yy-004 HTMS + P1,3 • Level sensor • Pressure sensor Note! Micropilot (P1, bottom) This mode should be • Pressure sensor used in non- (P3, top) atmospheric tanks Tank Side Monitor (e.g. pressurised tanks) L00-NRF590-14-00-08-yy-005 Endress+Hauser... - Page 6 P1,2,3" mode) HTG P1,2,3 • Pressure sensor (P1, bottom) Note! • Pressure sensor Tank Side This mode should be (P2, middle) Monitor used in non- • Pressure sensor atmospheric tanks (P3, top) (e.g. pressurised tanks) P1-P2 Distance P1 Position L00-NRF590-14-00-08-yy-008 Endress+Hauser...
-
Page 7: Corrections
The NRF590 can be configured and used as part of an overfill protection system in comjunction with the approved WHG operating mode of the Endress+Hauser FMR53x/54x radar devices (as described in the TÜV test certificate for the FMR53x/54x WHG operating mode). -
Page 8: Inputs And Outputs
40 of the product structure IS Discrete In 1 IS DI#1 standard standard standard standard standard standard standard IS Discrete In 2 IS DI#2 standard standard standard standard standard standard standard IS Analogue In IS AI standard standard standard standard standard standard standard Endress+Hauser... -
Page 9: Fieldbus Protocols
Fieldbus Protocols The Tank Side Monitor NRF590 supports all of the following industry standard communication protocols allowing it to be integrated with existing instrumentation and connect to host computer systems without the need for additional hardware. These protocols allow for piece-by-piece replacement and upgrading of older technologies to modern radar solutions. -
Page 10: Values Transmitted By The Field Protocols
One additional value "4-20mA" which can be connected to any value, however range of value sent is limited (see KA00246F/00/EN). One additional value "Temp2" which can be connected to any value, however the range of value sent is limited (see KA00250F/00/EN). Endress+Hauser... -
Page 11: Technical Data Of The Non-Is Inputs And Outputs
Available types: see position 50 and 60 of Product Structure or chapter "Accessories". Discrete output C (for V1 protocol) Load voltage 3 to 100 V Load current max. 500 mA Type of contact mechanical latching relay Isolation voltage 1500 V Approvals UL, CSA Endress+Hauser... -
Page 12: Technical Data Of The Is Inputs And Outputs
Source for Discrete Inputs / Source for 4 to 20 mA loop device Discrete inputs (option, s. pos. 70 of the product structure) Active voltage ("closed circuit") min. 9 V (default) In-active voltage ("open circuit") max. 7 V (default) Active high current 4 mA Switching hysteresis Endress+Hauser... -
Page 13: Auxiliary Energy
) from each outer ground plug of the NRF590 to the tank ground must be made before any other wiring connections are made. All grounding must be compliant with local and company regulations and checked before the equipment is commissioned. A > 4 mm Tank Ground L00-NRF590-04-08-08-en-004 Endress+Hauser... -
Page 14: Electrical Connection - Non-I.s. Terminals
In case an "Ex d" rated 4-wire level gauge version is used, the power supply can be obtained from these terminals (21V ±10%). The internal voltage at this terminal is 0 V, however, shielding and signal common should be connected to terminal 11 or 12. Option, s. pos. 20 of the product structure Endress+Hauser... -
Page 15: Connection Of The Field Protocols
"L/+" (Line) and "N/-" (Neutral), corresponding with the phase/line and neutral wire. DC supply can be connected to the same terminals, for which it is necessary to connect the positive (+) to the terminal marked "L/+", and the negative to the terminal marked "N/-". Endress+Hauser... -
Page 16: Connection Of The Non-I.s
6 and 7 correspond to discrete I/O slot B. For details on available I/O modules, → ä 30. DIGITAL AC OUTPUT LOAD AC SUPPLY DIGITAL LOAD DC OUTPUT DC SUPPLY – DIGITAL AC INPUT AC SUPPLY DIGITAL DC INPUT DC SUPPLY – L00-NRF590-04-00-08-en-004 Note! 250 V AC is the maximum load that can be connected. Endress+Hauser... -
Page 17: Electrical Connection - I.s. Terminals
These terminals should be left unconnected if RTD has not been selected in feature 40 of the product structure. For a 3-wire RTD, terminals 18 and 19 should be connected together. These terminals share the same HART signal. These terminals share the same i.s. 0 V signal. Endress+Hauser... -
Page 18: Connection Of Hart Instruments
4 available terminals marked D+, S+, S- and D-. For 3-wire connection, 4 wire the RTD should be connected to the same 4 terminals. The terminals D- and S- should be connected together directly at the NRF590 terminals. 3 wire L00-NRF590-04-00-08-en-007 Endress+Hauser... -
Page 19: Performance Characteristics
(level - prio 1, temperature - prio 2, pressure - prio 3,...). Typically, a value change on the HART multidrop loop is displayed after a 2 seconds delay (for priority 1 values). Spot RTD input RTD resistance is measured and recalculated at least every second. Endress+Hauser... -
Page 20: Installation Conditions
100 (3.94) mm (inch) L00-NRF590-17-00-06-xx-001 Mounting on vertical rail ø90 (ø3.5) maximum Rail mounting kit (Order No.: 52013134) Grounding connections mm (inch) L00-NRF590-17-00-06-en-002 Mounting on horizontal rail Rail mounting kit (Oder No.: 52013134) ø90 (ø3.5) maximum mm (inch) L00-NRF590-17-00-06-en-003 Endress+Hauser... -
Page 21: Ambient Conditions
Use shielded signal lines for installation. Overvoltage protection Both interfaces of the NRF590 - the Ex ia and the Ex d side - are protected by internal 600 Vrms surge arresters which have been tested against 10 kA transient discharges. Endress+Hauser... -
Page 22: Mechanical Construction
• ½" NPT • ¾" NPT (max. 2 cable entries) All adapters are rated EEx d and can be used for either cable connection. When installing, properly seal all ports to prevent moisture or other contamination from entering the wiring compartments. Endress+Hauser... -
Page 23: Human Interface
The meaning is indicated by softkey symbols in the bottom line of the display: Softkey symbols to next move mark current to previous edit current move Meaning parameter parameter downwards upwards selection parameter L00-NRF590-07-00-00-en-003 Japanese font: JIS X 208-1997 including Hiragana, Katakana asnd Kanji Chinese font: GB18030, CITS Committee approved Endress+Hauser... - Page 24 °API xxx.xx xxx.xx xxx.xxx current units xx.xxx xx.xxx xx.xxxx Endress+Hauser...
-
Page 25: Operating Concept
L00-NRF590-07-00-00-en-004 Remote operation FieldCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare, you can configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT standard. Hardware and software requirements you can find on the internet: www.endress.com È... -
Page 26: Certificates And Approvals
Certificates and Approvals CE mark The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Ex approvals FM XP - Class I, Div 1 Groups A-D; Note the Installation Drawings ZD00084F/00/EN and ZD00085F/00/EN (IS 4-20 mA Option Module) FM XP - Class I, Div 1 Groups A-D;... -
Page 27: External Standards And Guidelines
Petroleum and liquid petroleum products - Determination of volume, density and mass of the contents of vertical cylindrical tanks by Hybrid Tank Measurement Systems. OIML - R85 Organisation Internationale de Métrologie Légale - Automatic level gauges for measuring the level of liquid in fixed storage tanks. Endress+Hauser... -
Page 28: Ordering Information
Ordering information Tank Side Monitor NRF590 This overview doas not mark options which are mutually exclusive. Approval Non-hazardous areas NEPSI Ex d (ia) IIC T6 (in preparation) ATEX II 2 (1) EEx d (ia) IIC T6 CSA XP Cl. I, Div 1, Gr. A-D, zone 1, 2 FM XP Cl. - Page 29 Weight + Measure Approval Not selected NMi type approval PTB type approval Special version, TSP-No. to be spec. Additional Option Basic version Special version, TSP-No. to be spec. Marking Tagging (TAG), see additional spec. NRF590 - Complete product designation Endress+Hauser...
-
Page 30: Accessories
This order code is valid if the module is preinstalled in the Tank Side Monitor as module A or module B This order code is valid if the module is ordered as an accessory. This upper limit of the load current is determined by the Tank Side Monitor. Endress+Hauser... - Page 31 This order code is valid if the module is preinstalled in the Tank Side Monitor as module A or module B. This order code is valid if the module is ordered as an accessory. This upper limit of the input voltage is determined by the Tank Side Monitor. Endress+Hauser...
- Page 32 This order code is valid if the module is preinstalled in the Tank Side Monitor as module A or module B. This order code is valid if the module is ordered as an accessory. For inductive loads, use diode suppression or RC network to improve contact life. Including debounce Endress+Hauser...
-
Page 33: Rail Mounting Kit
Rail mounting kit For rail mounting the Tank Side Monitor to vertical or horizontal pipe. Order-Number: 52013134 L00-NRF590-00-00-06-en-001 Endress+Hauser... -
Page 34: Supplementary Documentation
4 to 20mA analogue input module for NRF590 - ATEX II 2 (1) G Control Drawings ZD00084F/00/EN Tank Side Monitor NRF590 - FM XP - Class I, Div. 1, Groups A-D ZD00085F/00/EN i.s. 4 to 20mA analogue input module for NRF590 - FM XP - Class I, Div. 1, Groups A-D ZD00103F/00/EN Tank Side Monitor NRF590 - CSA XP - Class I, Div. - Page 35 Endress+Hauser...
- Page 36 Instruments International Endress+Hauser Instruments International AG Kaegenstrasse 2 4153 Reinach Switzerland Tel. +41 61 715 81 00 Fax +41 61 715 25 00 www.endress.com info@ii.endress.com TI00402F/00/EN/13.10 71127758 FM+SGML 6.0 ProMoDo 71127758...
